How High Should Your Guitar Pickups Be? The Free Tweak That Beats a New Pickup

Here is the advice I give more than almost any other at the bench: before you spend a dime on new pickups, get out a small screwdriver and set the height of the ones you already have. Nine times out of ten, the guitar that "just doesn't sound right" — muddy neck pickup, weak bridge, notes that go sour up high — doesn't need new electronics. It needs the pickups moved a couple of millimeters. Pickup height is the highest-leverage free adjustment on an electric guitar, and most players never touch it.

The reason it works is simple physics, and once you understand it you'll stop guessing.

What pickup height actually does

A magnetic pickup senses the string vibrating in its magnetic field. Move the pickup closer to the strings and you push more of that field into the string's path: output goes up, the midrange thickens, and the sound gets fatter and more compressed. Back it away and output drops, but the note gets cleaner, clearer, and more dynamic. That much is intuitive.

Here's the part players miss. Those magnets don't just listen to the string — they pull on it. Get the pickup too close and the magnetic pull starts fighting the string's natural vibration. The note stops ringing evenly, intonation drifts sharp as you move up the neck, and in bad cases you get a warbling, out-of-tune shimmer that no amount of tuning will fix. It can even choke sustain outright. So closer is not simply "louder and better." There's a ceiling, and crossing it makes the guitar worse in ways that are easy to blame on the wrong thing.

The symptom nobody connects to height: warble and sharp notes

This one has a nickname — "Stratitis" — because single-coil Strats are the classic offender. Vintage-style single coils use strong Alnico magnets sitting right under the string, so they're the first to misbehave when set too high. Play an open string, or a note up around the 12th fret, and watch your tuner: if the needle wobbles or drifts sharp instead of settling, your neck or middle pickup is almost certainly too close. You'll hear it as a seasick, chorus-y quality on sustained notes.

The fix costs nothing. Drop the offending pickup a millimeter at a time until the note settles and rings clean. The neck pickup is usually the culprit, because the string swings in a wider arc there and gets closer to the magnets even at the same screw setting.

Where to start: the numbers, and how to measure

Every pickup and every set of hands is a little different, so treat these as a starting point, not gospel. But you need somewhere to begin, and the factory specs are a sensible baseline.

Always measure the same way: hold the string down at the highest fret, then measure from the bottom of the string to the top of the pole piece or pickup cover. Do it fretted, because that's the position where the string sits closest to the pickup.

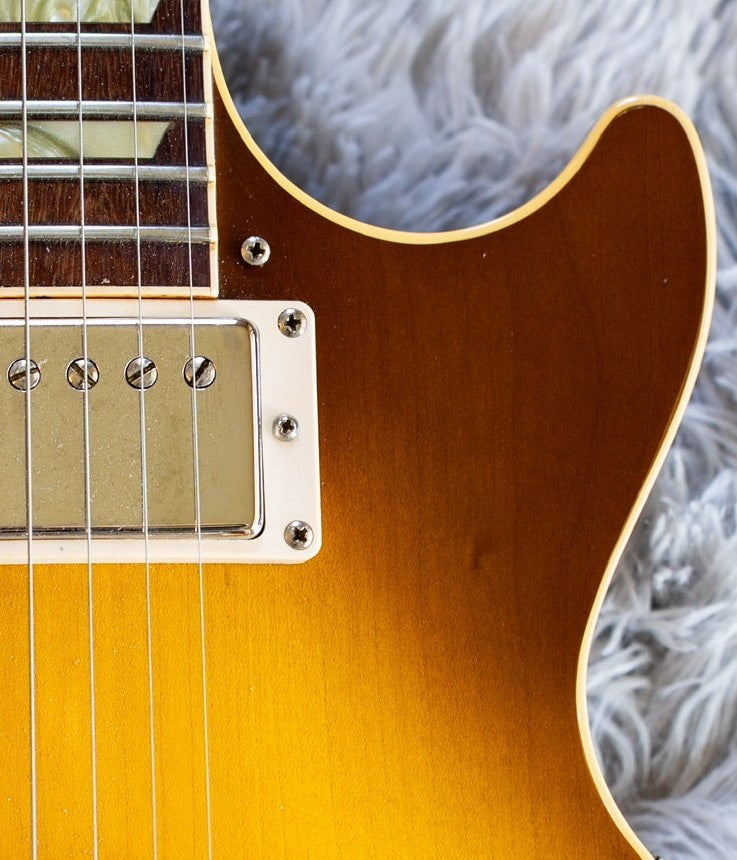

For Gibson-style humbuckers, a common starting point is roughly 1/16" (1.6 mm) on the treble side and 3/32" (2.4 mm) on the bass side. The treble side sits a hair closer because the thinner strings are quieter and swing less; the wound bass strings are louder and move more, so they want more room. Many players set the bridge humbucker a touch closer than the neck to even the two out.

For Fender-style single coils, back off a little more, especially at the neck: something like 1/8" (3.2 mm) under the low E and 3/32" (2.4 mm) under the high E at the neck and middle, with the bridge a bit closer. If you're chasing Stratitis, err on the low side and come up only until it sounds full.

How to actually dial it in by ear

The numbers get you in the neighborhood. Your ears close the deal. Here's the order I use:

1. Set the bridge pickup to taste first

Plug in, run your usual dirty tone, and raise the bridge until it's as thick and hot as you want — then stop just short of where notes start to compress or sound pinched.

2. Balance the neck pickup to it

Switch between positions and set the neck pickup height so the two are roughly even in volume. Almost every guitar needs the neck pickup noticeably lower than the bridge — a neck pickup left at the same height will bury the bridge and sound woofy and muddy. Lowering it is the single most common fix I make for "my neck pickup is too dark."

3. Level the pickup side to side

If the wound strings boom and the plain strings sound thin, tilt the pickup: bass side down a touch, treble side up. This per-side balance is where a good setup pulls ahead of the factory number.

4. Recheck for warble

Come back to the tuner after you've raised anything. It's easy to gain a millimeter chasing output and quietly reintroduce the pull. Clean intonation always wins over a slightly hotter signal.

What pickup height won't fix

I'd be doing you a disservice if I oversold it. Height changes output, balance, and clarity — the relationship between the pickup and the string. It will not turn a genuinely dark pickup into a bright one, and it won't rescue a pickup you simply don't like the voice of. It won't cure hum from a grounding problem, and it won't fix fret buzz — that's nut, relief, and action, a different job entirely. And it can't add sustain a guitar doesn't have; it can only stop you from killing the sustain that's there. Within those limits, though, it's the best free upgrade on the instrument.

FAQ

How high should my guitar pickups be?

Start around 1/16" on the treble side and 3/32" on the bass side for humbuckers, measured while fretting the top fret, and a little lower for single coils. Then trust your ears — those are starting points, not rules.

Can pickups be too close to the strings?

Yes, and it's more common than being too low. Too close, the magnets pull on the strings and cause warble, sharp intonation up the neck, and choked sustain. If your tuner needle won't settle, drop the pickup.

Why does my neck pickup sound muddy or too loud?

It's almost always set too high relative to the bridge. Lower the neck pickup until the two positions are even in volume; the mud usually clears up on its own.

Is adjusting pickup height really better than buying new pickups?

For a lot of players, yes — at least as a first move. It costs nothing but ten minutes and a screwdriver, and it fixes the exact complaints most people try to solve by swapping pickups. Do it first; then decide if you still want new ones.
