Why Coil-Splitting Almost Never Sounds Like a Real Single Coil

Here's the honest answer up front, because it's the one nobody selling you the feature wants to lead with: a coil-split humbucker will not sound like a Stratocaster or Telecaster single coil. It'll sound thinner and quieter than the full humbucker, which people mistake for "single-coil-ish," but put it next to an actual Strat in the same room and the illusion falls apart in about two seconds. I've wired, rewired, and troubleshot enough push/pull pots over the years to have made peace with this. Coil-splitting is a useful trick. It is not a second guitar hiding inside your first one.

If you're shopping used and a listing brags about "single-coil tones at the pull of a knob," this article is me telling you what that knob actually does — and when it's genuinely worth having anyway.

First, the thing everyone mixes up: split vs. tap

These two terms get used interchangeably online and they are not the same circuit.

Coil-splitting takes a humbucker — two coils wired in series — and shunts one coil to ground, leaving a single coil doing the work. That's what nearly every "coil tap" push/pull knob on a production guitar is actually doing, despite the label.

Coil-tapping is a different animal: the pickup is wound with an extra lead coming off partway through the winding, so you can access fewer turns of wire for a lower-output version of the same pickup. True tapped pickups are much rarer, and you mostly see them on single coils, not humbuckers.

So when a used listing says "coil tap," 95% of the time it means coil-split. Not a dealbreaker — just know what you're reading.

Why the split coil falls short of a real single coil

This is where the disappointment comes from, and it's not in your head. A few things are working against that split coil, and none of them go away when you pull the knob.

Diagram: what actually changes when you split a humbucker versus a purpose-built single coil.

The magnet next door is still there. Splitting grounds one coil's signal, but you can't switch off the magnetic field. The bar magnet under the pickup still sits beneath both coils, and the inactive coil's magnetic pull still influences the string right next to the coil you're listening to. A real single coil doesn't have that neighbor loading it.

The bobbin is the wrong shape. A humbucker coil is short and fat — a squat bobbin built to sit alongside its twin. A Strat single coil is a taller coil wound around six magnet slugs, in a completely different geometry, usually with a different wire count and winding pattern. Those differences change the inductance, and inductance is a big part of why a Strat has that glassy top and springy attack. You can't get there by turning half a humbucker off.

The hum comes back. The whole point of a humbucker is that its two coils cancel each other's noise. Split it and you're running one coil — which means the 60-cycle hum a single coil is famous for comes right back. So you lose the fatness and pick up the buzz. That's the trade in one sentence.

Add it up and you don't get a single coil. You get a quieter, thinner, slightly hummy version of your humbucker. Sometimes that's exactly the flavor you want. Often it just sounds a little weak and hollow next to the beefy sound you had a second ago, which is why the internet is full of players saying their coil-split "never gets used."

So when is it actually worth having?

I don't want to talk you out of it entirely, because a well-executed split earns its keep. Here's when I think it's genuinely valuable:

When the guitar was designed around it. The brands that do this best build the whole guitar to make the split usable — not as an afterthought soldered onto a stock humbucker. In my experience PRS is the usual reference point here. Their humbuckers and switching are voiced so the split positions come out musical and clear rather than flimsy. Some builders also wire the split through a resistor to ground ("partial split") instead of dumping the coil straight to ground, which keeps more signal alive and gives a fuller, more usable single-coil-ish tone. If a used guitar sounds great split, it's usually because someone thought about it at the design stage.

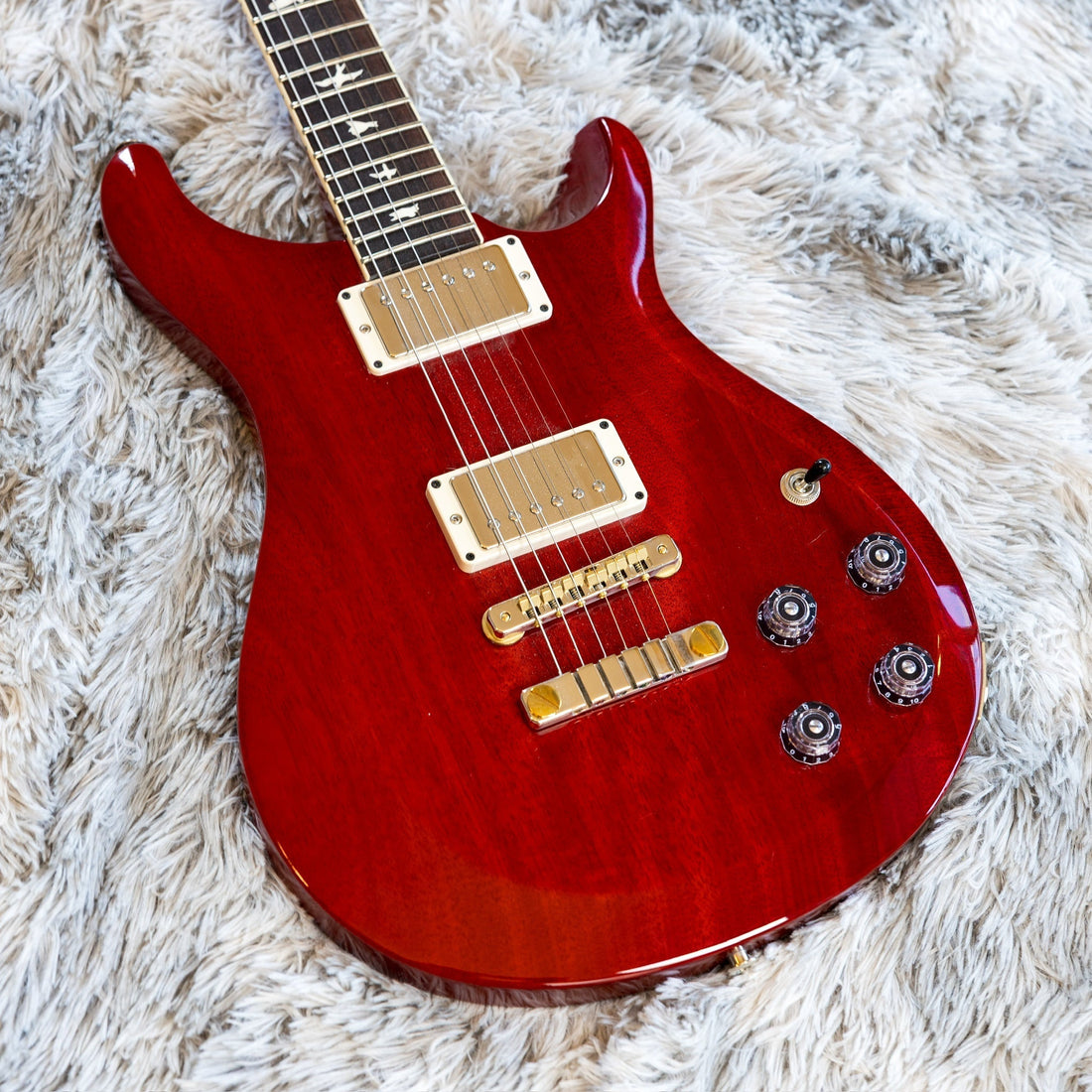

A PRS S2 McCarty 594 currently on the bench at Aeonic Frets. Those two tone knobs are push/pull pots — pull them and each humbucker splits. This is the kind of guitar where the split was engineered in, not bolted on.

When you want texture, not a genre swap. Think of the split as a tonal color for cleans and light overdrive — a way to thin things out, add sparkle, and clean up a busy chord part. Judged as "another useful voice," it's great. Judged as "now I own a Strat too," it'll always let you down.

When it feeds a two-humbucker combination. Some of the best split sounds aren't a single humbucker split on its own, but both pickups on with one or both coils dropped — that inner-coil pairing can get you a hollow, out-of-phase-ish "quack" that's genuinely its own thing and lovely for funk and clean rhythm. That's a sound a straight Strat can't quite do either.

What to check on a used guitar with a push/pull

If you're buying used specifically for the split feature, a few bench-level things are worth confirming:

Pull each push/pull knob and listen for a clear, obvious drop in volume and thickness — that tells you the split is actually working and not a dead switch. Push/pull pots are the most failure-prone control on the guitar; the switching mechanism wears out or gets intermittent long before a standard pot does. Wiggle the knob in the pulled position and listen for crackle or dropout. And if the guitar's been modified, check whether someone swapped in the push/pulls aftermarket — a tidy job is fine, but sloppy solder work in the control cavity is a fair thing to negotiate on.

None of this is a reason to avoid a coil-split guitar. It's a reason to go in with clear ears and the right expectations. If you want versatility and a few extra clean textures, a good split-capable guitar is a joy. If what you actually want is Strat tone, buy a Strat — we usually have a few of both on the wall.

FAQ

Is coil-splitting the same as coil-tapping?
No. Splitting grounds one coil of a humbucker to leave a single coil active. Tapping accesses a point partway through a pickup's winding for a lower-output version of the same pickup. Most guitars labeled "coil tap" are really coil-split.

Will a split humbucker be noisy like a single coil?
Yes. Once you split to one coil, you lose the hum-cancelling and get the 60-cycle hum single coils are known for. It's the trade for the thinner, brighter voice.

Which guitars do coil-splitting best?
The ones designed around it. PRS models with push/pull or dedicated split switching are the common reference, partly because some use partial-split wiring that keeps the split tone fuller. A stock humbucker split straight to ground on a budget build tends to sound the weakest.

Can I add coil-splitting to a guitar I already own?
If the humbucker is four-conductor (most modern ones are), yes — it's a push/pull pot and some rewiring. If it's a vintage-style two-conductor pickup, it can't be split without opening the pickup up. Worth having a tech check before you buy parts.

---
