50s Wiring vs Modern Wiring: Does It Actually Change Your Tone?

Short answer: yes, '50s wiring changes something real, but it's a smaller and weirder change than the internet makes it sound. It doesn't make your guitar louder, fatter, or "vintage." All it does is move where one wire connects — and the only place you'll actually notice is when you roll the volume knob back. If you play everything on 10, the two circuits are identical and this whole debate is academic.

I've had the control cavity open on a lot of Les Pauls, SGs, and 335-style guitars, and this is one of the most misunderstood mods out there. So let's clear it up: what '50s wiring is, what it does, what it doesn't, and whether it's worth paying someone to redo.

What "'50s wiring" actually means

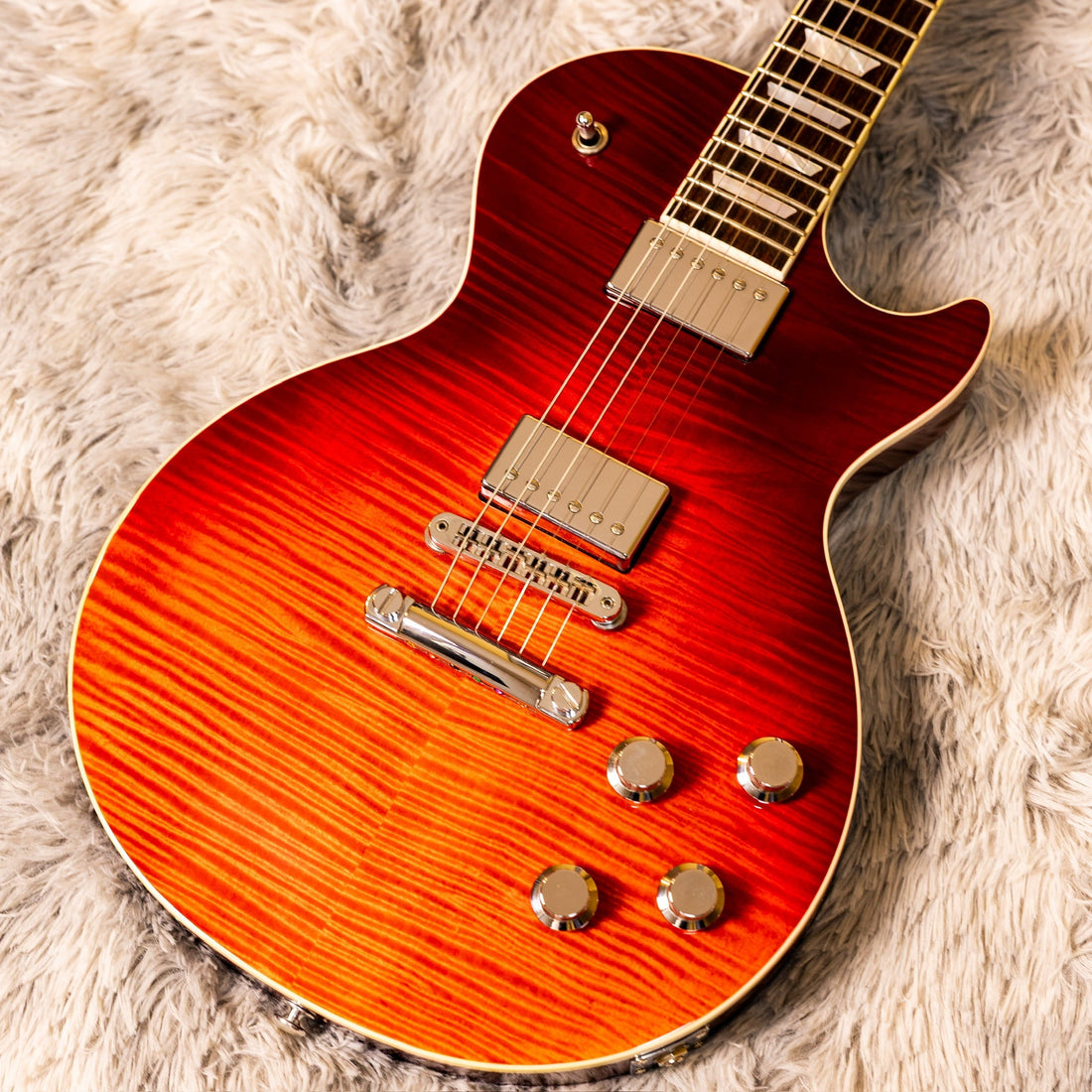

Every passive Gibson-style circuit has a volume pot, a tone pot, and a small capacitor (the "tone cap") that bleeds high frequencies to ground when you turn the tone down. The only thing that separates '50s wiring from modern wiring is which lug of the volume pot the tone cap connects to.

That's it. Same pots, same cap, same pickups. One wire moves about a quarter of an inch.

In modern wiring, the tone cap connects to the input lug — the side that sees the pickup before the volume control does anything. In '50s wiring, the cap connects to the output (middle) lug, which sits after the volume control. Gibson wired their guitars this second way in the 1950s, which is where the name comes from. Modern reissues and Historic/Custom Shop Les Pauls generally use it; a lot of standard-production guitars over the years used the modern arrangement.

What you'll actually hear

Here's the honest, mechanism-level version, because this is where the myths creep in.

With modern wiring, as you roll the volume knob down, the guitar gets progressively darker. The high end rolls off faster than the volume does, so a rhythm sound at 6 or 7 sounds noticeably duller than the same pickup on 10. Players have papered over this for decades with a "treble bleed" cap on the volume pot.

With '50s wiring, that treble loss is reduced. Roll the volume back and more of the top end hangs on, so a cleaner rhythm setting still sounds clear and present instead of muddy. In practice it behaves a little like a mild built-in treble bleed — not identical, but the same direction.

That's the real, defensible benefit, and it's why guitarists who ride their volume knob for cleanup — think of the crowd chasing that "roll it back and it cleans up" thing on a cranked amp — tend to prefer it. If you're one of those players, you'll feel it immediately.

The catch nobody mentions: the controls interact

There's a trade-off, and it's the part most breathless "'50s wiring is better" posts skip. Because the tone cap now sits after the volume pot, the two controls start talking to each other:

• '50s wiring: keeps treble when you roll the volume down, but you lose a bit of volume when you roll the tone down.
• Modern wiring: keeps volume steady when you roll the tone down, but loses treble when you roll the volume down.

So it's a genuine give-and-take, not a free upgrade. On a '50s-wired guitar, turning the tone knob down can pull the perceived volume down slightly, and there's a little more interplay between the two knobs generally. Most people adapt to it in an afternoon and never think about it again. A few players find it fiddly and switch back. Both reactions are legitimate.

Is the difference real, or is it in your head?

This is where the forums melt down, so let me be straight about it. The mechanism is real and measurable — the frequency response as you roll the volume down genuinely differs between the two circuits. That's not audiophile hand-waving; it's basic circuit behavior.

What's debated is how big the effect is and how much it matters to you. Some players describe '50s wiring as night-and-day and swear a modern-wired guitar sounds "choked." Others — including me on plenty of guitars — find it a subtle, useful refinement rather than a transformation. You'll also see people insist their '50s-wired guitar still loses treble when they turn down. They're not wrong; it does lose some. It just loses less than modern wiring does. The claim was never "zero treble loss."

My take from the bench: if you set your controls and leave them, you will not hear a difference, full stop. If you use your volume knob as a real-time tone control, '50s wiring is worth trying. That's the whole story.

Should you have it done to a used guitar?

It's about the cheapest mod in the electric guitar world — no new parts required if the existing caps and pots are good, just a soldering iron and fifteen minutes for someone who knows their way around a control cavity. If you buy a used Les Paul with modern wiring and you're a volume-knob player, it's an easy, fully reversible change to ask your tech about.

A few honest cautions:

• Don't expect new tones. It won't add sustain, output, or "mojo." Anyone telling you '50s wiring transforms a guitar's core tone at full volume is selling something.
• It's not a fix for a bad-sounding guitar. If the pickups or setup are the problem, rewiring the tone cap won't save it.
• Vintage-correct doesn't mean better. "The '50s did it this way" is a fun fact, not proof of superiority. Plenty of legendary records were cut on modern-wired guitars.

When we go through a used Gibson or Epiphone here, checking the wiring scheme is part of understanding the guitar — it tells you how it'll behave under your hands. If you're shopping, the guitars currently in stock are all inspected on the bench before they go up, and we're happy to tell you how a given one is wired.

FAQ

Can I tell if my guitar has '50s or modern wiring without opening it up?

Sort of. Roll your volume from 10 down to about 5 on a bright pickup setting. If the tone stays fairly clear, it's likely '50s wiring; if it goes noticeably dark and dull, it's likely modern. To be certain, pull the control cavity cover and look at which volume-pot lug the tone cap connects to.

Does '50s wiring work on Strats and Teles?

The exact scheme is a Gibson-style thing, but the same principle — tapping the tone cap after the volume control to preserve treble on rolloff — can be applied to other guitars. On Fender-style circuits, most players chasing the same result just add a treble bleed to the volume pot instead.

Is a treble bleed the same as '50s wiring?

They aim at the same problem (treble loss when you turn down) but they're not identical. A treble bleed is a small cap, sometimes with a resistor, wired across the volume pot. '50s wiring changes the tone cap's connection point instead. Some players run one or the other; running both can get overly bright.

Will '50s wiring void anything or hurt resale on a used guitar?

It's fully reversible and uses the existing parts, so a clean rewire back to stock is trivial. On most used players-grade guitars it's a non-issue. On a collectible vintage instrument, leave the original solder joints alone and talk to a specialist first.
