Series vs. Parallel Wiring: The Humbucker Trick That Isn't Coil-Splitting

Short version: wiring a humbucker in parallel instead of the standard series gives you a brighter, lower-output, more single-coil-ish voice — but unlike a coil-split, it stays dead quiet because both coils are still working. If you’ve tried a coil-split and been let down by the thin, hissy result, series/parallel is the mod you actually wanted. It’s just far less talked about.

I get asked about coil-splitting constantly. I almost never get asked about series/parallel, and that’s a shame, because on a lot of guitars it’s the more musical option. Here’s what’s going on under the pickguard, in plain language.

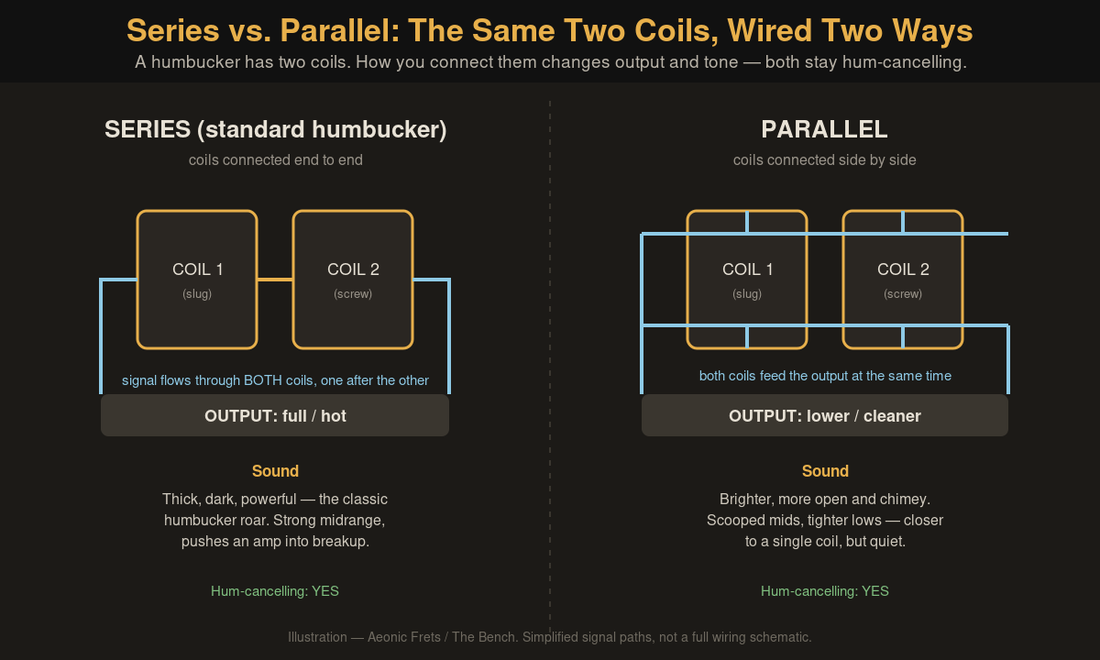

What “series” and “parallel” actually mean

Every humbucker is two coils. How those two coils are connected to each other is the whole story here.

By default, virtually every humbucker on the planet is wired in series: the signal runs through the first coil, then straight into the second coil, then out to your volume pot. The two coils stack on top of each other. That’s what gives a humbucker its trademark thick, hot, slightly dark voice — and its noise cancellation, because the two coils are wound and magnetized in opposite directions so they scrub out hum.

Parallel takes those same two coils and connects them side by side instead of end to end — both coils feed the output at the same time. You keep both coils (so you keep the hum cancellation), but the electrical result is very different: lower output, and a brighter, more open tone.

What parallel actually sounds like

Think of the neck-and-bridge “in-between” position on a Strat — that glassy, scooped, slightly hollow quack. Parallel wiring pushes a single humbucker in that direction. Compared to the same pickup in series, parallel is:

• Lower output — it drops a noticeable amount of level, which cleans up your amp’s front end.
• Brighter, with more top end — treble that series wiring buries comes forward.
• Scooped in the mids, tighter in the lows — the honk pulls back and the low end firms up.
• More “open” and chimey — closer to a single-coil flavor, useful for clean and edge-of-breakup work.

It is not a true Strat or Tele sound — the coils are still full-sized and the magnetic field is a humbucker’s — but it’s in the neighborhood, and it does it without any hum.

Series/parallel vs. coil-splitting: the difference that matters

This is the part people get wrong, so I’ll be blunt about it.

A coil-split shuts one coil off entirely and uses the remaining single coil. You get closer to a real single-coil sound, but you lose the second coil — which means you lose hum cancellation. On a high-gain amp, or under fluorescent lights, or near a computer monitor, that split coil buzzes. It’s also lower output and can sound thin, because a humbucker coil on its own wasn’t designed to be a Strat pickup.

Parallel keeps both coils running, so it stays hum-cancelling. You still get a brighter, lower-output voice, but it’s quiet and, to my ears, fuller and more usable than a split. That’s the trade: a coil-split chases the single-coil sound harder but brings the noise; parallel gives you most of the sparkle and none of the hum.

Neither is “better” in the abstract. But if the reason you wanted a split was “I want a cleaner, brighter option from my humbucker” rather than “I specifically need Strat-in-position-2,” parallel usually delivers that with far less hassle. Plenty of experienced players who have lived with both end up reaching for the parallel switch more often.

Which guitars can do this — and how you add it

Most Gibson-style guitars and a lot of import humbucker guitars ship series-only, so parallel is a modification rather than a flip of an existing switch. The good news is it’s a cheap, reversible one. To get series/parallel you need a humbucker with a four-conductor lead (four wires plus a bare ground), which lets you reach both ends of both coils. Most modern replacement humbuckers — and many stock ones from the last couple of decades — already have this. Older two-conductor pickups don’t, and can’t do it without a rewind.

The usual ways to wire it in:

• Push-pull (or push-push) pot — swap a volume or tone pot for one with a switch built into it. Down = series, up = parallel. No new holes in the guitar, fully reversible.
• Mini toggle switch — if you don’t mind drilling, a small switch is the most direct control. Less reversible, so think it through on a vintage or collectible instrument.

Some guitars already give you a taste of this idea from the factory — certain PRS models, for instance, use switching that blends coil and dual-coil voices — but a dedicated series/parallel switch on a humbucker is still mostly an aftermarket move. If you’re not comfortable with a soldering iron, it’s a 20-minute job for a tech and doesn’t touch the guitar’s value if it’s done through a push-pull.

Is it worth doing? My honest take

If your guitar has four-conductor humbuckers and you mostly play clean-to-crunch, yes — it’s one of the best bang-for-buck mods going. You roughly double your usable clean tones without adding noise, and you can undo it completely. I’d take a series/parallel push-pull over a coil-split on most humbucker guitars, and I say that as someone who has wired plenty of both.

Where I’d pump the brakes: on a genuinely collectible instrument, I don’t drill holes or cut original wiring for any tone mod. Use a push-pull that drops into the existing pot hole, keep the original parts in a bag, and you’ve lost nothing. And if you play mostly high-gain, understand that parallel’s lower output means it’ll clean up and thin out — that’s the point, but it’s not a metal rhythm sound.

Shopping for a used humbucker guitar to experiment with? A lot of what comes across our bench already has four-conductor pickups, which makes this mod a bolt-on afternoon. You can see what’s currently in stock in our used guitars collection.

FAQ

Does parallel wiring still cancel hum?

Yes. Both coils stay active and remain wound and magnetized in opposite directions, so hum cancellation is preserved. That’s the key advantage over a coil-split, which turns one coil off and gets noisy.

Is parallel just a quieter coil-split?

Not exactly. A coil-split uses one coil for a truer single-coil sound (with noise). Parallel uses both coils for a brighter, lower-output but hum-free tone. They’re related ideas with a different sound and a different noise floor.

Will series/parallel wiring hurt my guitar’s resale value?

If it’s done with a push-pull pot that fits the existing hole and you keep the original parts, it’s fully reversible and shouldn’t affect value. Drilling for a mini switch is a different story on a collectible guitar.

Can any humbucker do it?

Only pickups with a four-conductor lead. Many modern humbuckers have this; older two-conductor pickups would need to be rewound or replaced first.
