Is a No-Load Tone Pot Worth It? What Changes When the Knob Hits 10

Short answer: a no-load tone pot does something real, but it only does it at one spot on the knob. When it's on 10, it drops the tone circuit out of the guitar completely, and a bright single coil gets a little more sparkle and openness. On a Strat through a clean amp, plenty of players can hear it. Through a gainy amp with a band playing, most can't. If you leave your tone knob on 10 and wish your guitar had a touch more air, it's one of the cheapest electronics changes you can make. If you ride the tone knob all night, it may annoy you more than it helps.

What "on 10" means with a normal tone pot

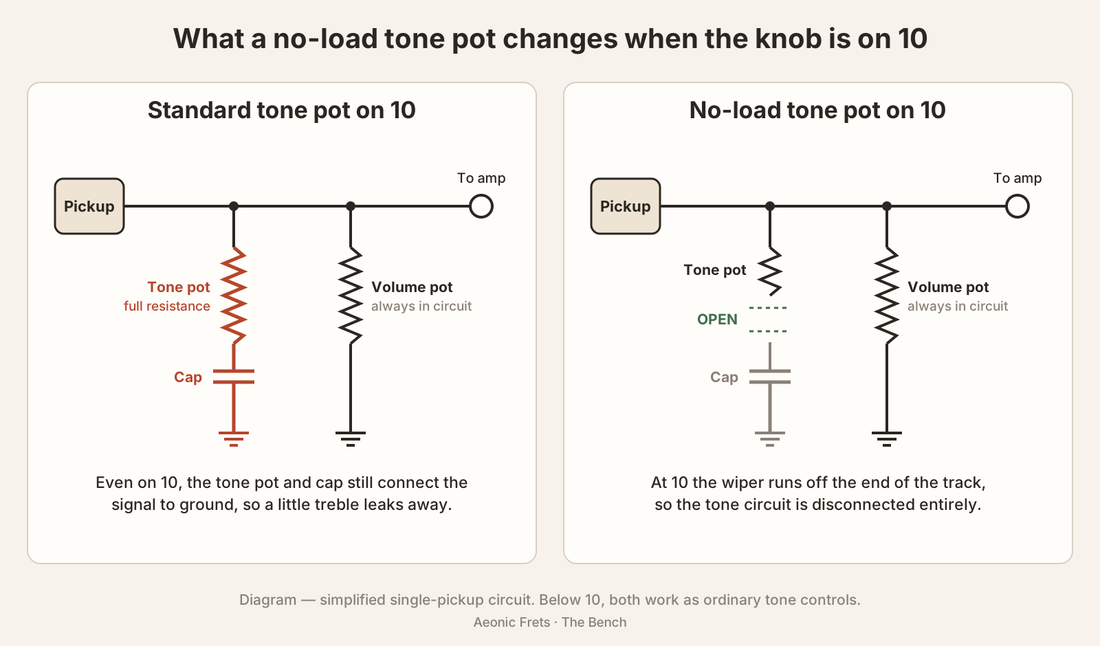

Most players assume that with the tone knob on 10, the tone control is out of the way. It isn't. A standard tone pot is a variable resistor wired in series with a capacitor, and that pair runs from your signal to ground. Turning the knob down lowers the resistance, so more treble drains through the cap. Turning it up to 10 raises the resistance to its full value, usually 250k on a Fender and 500k on a Gibson, but it never goes to infinity. The pot and cap are still hanging on the signal and still draining a small amount of treble.

A no-load pot fixes that with a simple trick. The resistive track inside has a break at the very end. From 1 to about 9 it works like any other tone pot. Turn it all the way up and the wiper runs off the end of the track, so there's no connection at all. Fender's own parts listing for its 250k no-load pot says it plainly: it "functions as a normal tone control from 1 to 9. At 10, the tone control is removed from the circuit."

Volume pots can't work this way. A volume pot is a voltage divider and needs both ends of its track to do its job, so "no-load" only applies to tone controls.

How much difference does it make?

One camp says it's like taking a blanket off the amp. The other says nobody in the room will ever hear it. Both have a point.

Every passive pickup has a resonant peak, a hump in the upper mids and treble that gives it its sparkle and bite. Everything connected to the pickup either lets that hump stand tall or flattens it. On a typical 250k Strat circuit, a standard tone pot on 10 sits alongside the volume pot, and at treble frequencies the two together load the pickup at roughly half the resistance the volume pot would on its own. Take the tone pot out and the peak gets taller and moves up slightly. Bass and low mids don't change at all.

I'd treat that chart as an upper limit. It shows where the change happens, in the presence range around a few kHz, more reliably than it shows how big it is. It's the same kind of loading change we covered in 250k vs. 500k pots, just smaller. You'll notice it most on clean and edge-of-breakup sounds, where pick attack and string detail are easy to hear. With heavy gain, the amp is already squashing and filtering the top end, and the difference mostly disappears.

The capacitor value matters too. Some players who've tried both report that the jump between 9 and 10 is easier to hear with a big cap like a .047 or .1 than with a small .022. I'd file that under player reports, not a rule. On paper, the pot's full resistance does most of the work at 10, whatever the cap value, so I wouldn't count on a cap change alone to make the difference obvious.

Where you'll run into no-load pots on used guitars

The idea is older than most people think. The original 1950s Fender Esquire's three-way switch had a setting that bypassed the tone control completely for a brighter, hotter lead sound. On vintage-wired Strats, the bridge pickup has no tone control at all, which is part of why it's the brightest sound on the guitar.

Fender turned the idea into a feature with its Delta Tone system: a slightly hotter bridge pickup plus a no-load pot on the tone control for the middle and bridge pickups. It's best known from the American Series Strats made from 2000 to 2007. When it first appeared and how long it lasted on later American Standards is something sources disagree about. Some date it to 1996–97, and some later spec sheets don't mention it at all. So don't trust the model name. Check the knob itself: a no-load pot usually has a noticeable click or detent right at 10. Fender also sells no-load pots as replacement parts, so you'll find them in plenty of other guitars as owner mods.

The downsides nobody puts on the spec sheet

• The detent. Some players like knowing exactly where full treble is. Others find the click notchy.
• The step between 9 and 10. Because the whole circuit drops out at the end, the last bit of travel isn't a smooth sweep.
• Not every pickup needs more top end. A bright bridge single coil with nothing on it can get ice-picky. A no-load pot helps a dark or slightly polite pickup more than a pickup that's already cutting.
• It changes one sound only. Below 10 it's a regular tone pot. If you live at 7, a no-load pot does nothing for you.

It also helps to separate a no-load pot from other "better tone knob" ideas. On the 2022 American Performer Strat HSS we have in right now, Fender used its Greasebucket circuit. In my listing notes I wrote that it lets you "roll back treble without the sound getting overly dark or muddy." That circuit changes what happens below 10. A no-load pot only changes what happens at 10. They solve different problems.

My take from the bench

It's not magic and it's not snake oil. It's a small, real change in one part of the frequency range, and whether it's worth it depends on how you play.

• Worth trying: you play Strat- or Tele-style single coils mostly clean, you leave the tone on 10, and the guitar sounds a little closed-in to you.
• Probably not worth it: you play humbuckers into gain, you work the tone knob constantly, or your bridge pickup already borders on harsh.

If you try one, keep the original pot in the case. It's a fully reversible swap, and future buyers of a used guitar usually prefer original electronics. On the 2012 American Standard above, I noted the original Fat '50s pickups and a bridge that "still cuts cleanly without feeling harsh." A guitar already voiced like that doesn't need its tone circuit removed to sound right. Before you buy any part, the free fix is pickup height and a fresh set of strings.

If you'd rather start with a guitar that already sounds the way you want, everything we have that's ready to play is in our in-stock guitars, including that 2012 American Standard in Candy Cola.

FAQ

Can I turn a regular tone pot into a no-load pot?

Yes. Some players carefully scrape a short section of the carbon track at the full-up end so the wiper loses contact at 10. It works, but it's fiddly and easy to ruin a pot. A purpose-built no-load pot is cheap enough that most people are better off buying one.

Does a no-load pot work on a volume control?

No. A volume pot needs both ends of its track to divide the signal, so the no-load trick only applies to tone pots.

Will a no-load pot help a Les Paul?

The principle is the same with 500k pots and humbuckers: the tone pot on 10 still adds load, and removing it lets the top end open up a little. Humbuckers have their resonant peak lower in the range, and many Les Paul players are trying to tame top end, not add more. So for most Les Paul owners it's a lower priority than on a Strat.

Does swapping pots hurt a used guitar's value?

A clean, reversible swap with the original pot kept usually doesn't matter much on a modern production guitar. Original electronics matter more on vintage and collectible pieces. If you're weighing what a guitar is worth before or after mods, our Cash Offer page is a quick way to get a number.
