Is That Flame Top Real? How to Tell Figured Maple From a Veneer or Photo Top

Here is the honest answer up front, because it is the part that saves you money: most "flame top" guitars you will look at used fall into one of three buckets, and only one of them is a solid slab of figured maple. The other two are a thin figured veneer over plain wood, or a printed image of flame with no real figure at all. None of those is a scam by itself. A veneer top can be gorgeous, and plenty of great guitars wear one. The problem only starts when someone prices a veneer like a solid AAA cap, or when a printed "photo flame" gets sold as the real thing.

I have had hundreds of these on the bench, and the good news is you can usually sort out which is which in about thirty seconds — some of it without even reaching for a screwdriver. Here is exactly what I look at.

The three kinds of "flame top"

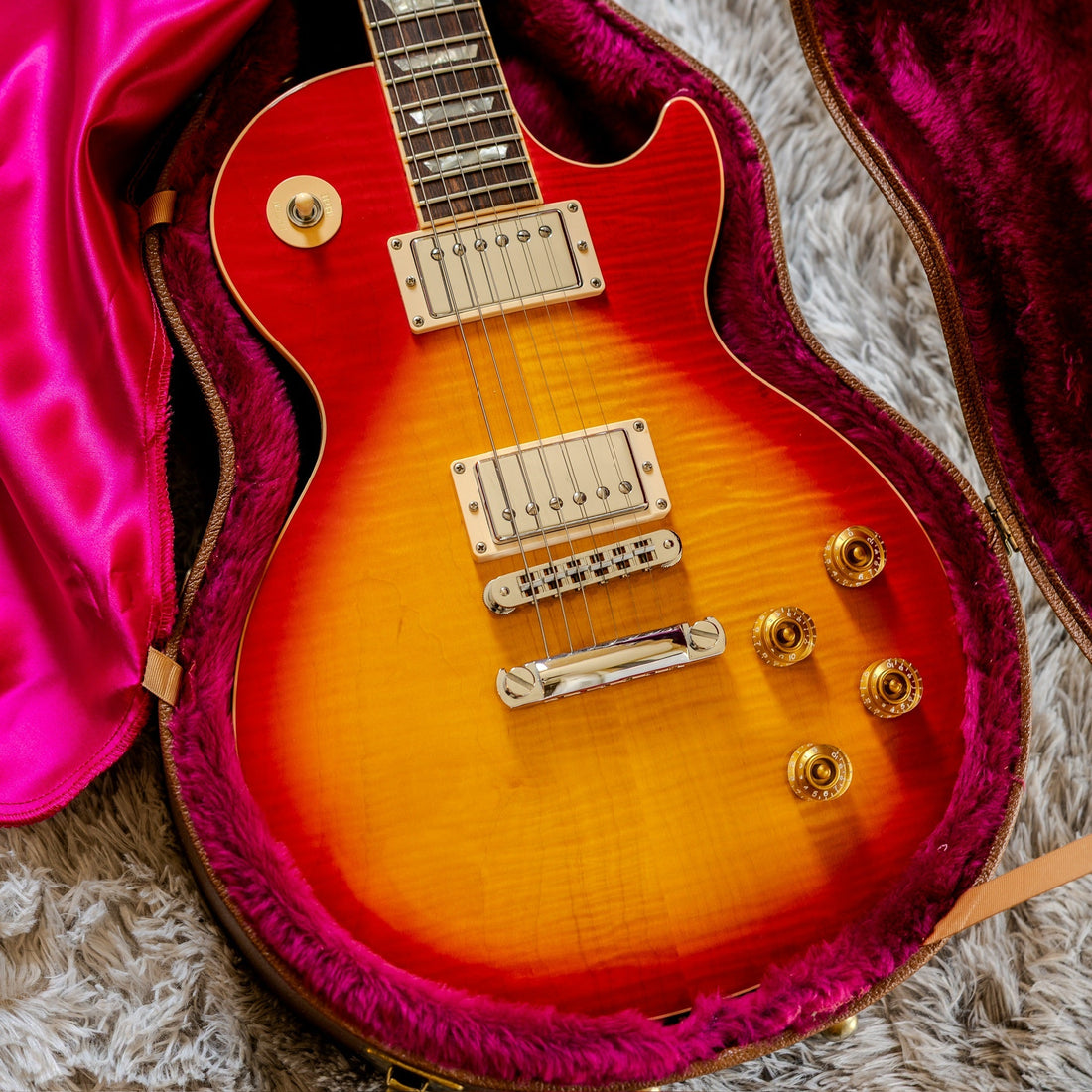

Solid figured cap. This is a real piece of figured maple, usually somewhere between an eighth and a half-inch thick, glued on top of the mahogany (or whatever the body wood is) and often carved. Gibson USA tops — Standard, Traditional, the "Plus" and "Premium Plus" models — are solid caps. Core PRS, higher-end Fenders, and boutique builds are too. The figure goes all the way through the thickness of that cap.

Figured veneer over plain wood. Here the pretty part is a paper-thin slice of figured maple — think a sixteenth of an inch or less — laid on top of a plain maple cap or straight onto the body. This is what you get on Epiphone figured tops, PRS SE models, Fender "Plus Top" and "HSS Plus Top" guitars, and most import instruments. The figure is real wood, but it is skin-deep.

Printed / "photo" top. The bottom rung. No figure at all — just a photograph of flame maple printed on a film and lacquered over plain wood. Fender's "Foto Flame" run on Japanese-made guitars from roughly 1994 to 1996 is the famous example, often over a basswood body. Some very cheap imports have done the same thing since.

The cavity check — the tell that never lies

If you can pull a pickup (two screws on the ring, or lift it out on its springs), look at the wall of the pickup cavity where the top meets the body. That route is cut straight down through the top, so it shows you the top in cross-section. On a solid cap, the flame carries on down that wall — you will see the figure continue into the thickness of the wood. On a veneer, you will see the figured layer as a hairline at the very surface, and then plain wood right below it.

You do not have to disassemble anything to do this on your own guitar, and any decent shop will let you peek if you ask. It is the single most reliable test there is. Everything else below is for when you cannot get under the hood.

Tells you can spot without a screwdriver

Watch it move in the light (chatoyancy). This is the big one for catching a printed top. Real figured maple shimmers — tilt the guitar under a light and the bright and dark bands of flame trade places as your viewing angle changes. That optical shift is called chatoyancy, and a photograph physically cannot do it. If the "flame" looks the same no matter how you move the guitar, and stays put while the reflection slides across it, you are looking at a printed top.

Look at the edges and the horn. On a carved solid cap, the figure wraps continuously over the carved edge and up around the cutaway, because it is one piece of wood being shaped. On a lot of veneered and printed tops the figure stops or gets weird right at the binding line or the edge of the carve, where the thin skin runs out.

Be a little suspicious of "too perfect." A veneer is sliced thin and lies dead flat, so bookmatched veneer halves often mirror each other with almost eerie precision. Solid carved caps tend to have a bit more character and slight asymmetry. This is a soft tell, not proof — some solid tops are beautifully matched too — but perfectly symmetrical figure is worth a second look.

Repeats are a red flag. If you have ever seen two "identical" guitars of a cheap model with the exact same flame pattern in the exact same places, that is a printed top giving itself away. Real wood is never repeatable.

Does the flame actually change the tone?

Short version: the figure itself does not. Flame, quilt, birdseye — those are just patterns in the grain, a visual property. Two maple caps of the same species and thickness will not sound different because one happens to be flamed and the other is plain. So no, chasing a higher "figure grade" for tone is chasing a ghost.

What can matter — and this is a genuinely debated one — is how much maple is on the guitar. A thick solid maple cap does add a measure of brightness and attack compared to an all-mahogany body; that is a real, if modest, effect. A paper-thin veneer is far too thin to do anything to the sound at all. But notice the distinction: that is about the mass of maple, not about whether it is figured. If you want to go deeper on that, my take on whether tonewood actually matters on an electric covers where I land.

So should you care?

You should care about paying the right price for what you are actually getting — nothing more. A killer veneer top on a well-set-up used guitar can be one of the best values out there: the look you want without the premium a solid AAA cap commands. What you do not want is to pay solid-cap money for a veneer, or any real money for a printed photo top — a printed top has no resale legs and tends to wear or bubble at the edges over time.

And those "AAA / AAAA / 10-Top" grades? They describe how intense and well-matched the figure looks — nothing about structure, wood quality, or tone. It is a beauty-contest score. On the used market it moves the price because people pay for looks, which is fine, as long as you know that is what you are buying. If a listing brags about the grade but the top does not shimmer in the light, that is your cue to ask a few more questions.

When we take in a used guitar here, this is part of the standard once-over — what the top actually is gets called out plainly, because a happy buyer is a repeat buyer. You can see what is on the bench right now in the guitars in stock collection.

FAQ

Is a veneer top a sign of a bad guitar? Not at all. Tons of excellent guitars — Epiphones, PRS SE models, Fender Plus Tops — use figured veneers. It only matters for price and for honesty about what it is.

Can I do the light test through the store's glass case? You can try, but reflections off the glass make chatoyancy hard to read. Ask to hold it and tilt it under a light. Any shop that will not let you do that is telling you something.

Does a veneer top hurt resale value? Only relative to a solid cap — a veneered model is worth what that model is worth, and a great-looking one can sell faster. A printed "photo flame" top is the one that genuinely drags value down, and it is the one to identify before you buy.

How do I tell a solid cap from a veneer if I cannot pull a pickup? Use the visible tells: figure wrapping continuously over the carved edge and horn, real shimmer as you tilt it, and figure that is not suspiciously perfect. If those all check out, you are very likely looking at real wood — and if you can peek in the control or pickup cavity, that settles it.
