Do High-Output Pickups Actually Ruin Your Tone?

Short version: no, a high-output pickup won’t “ruin” anything — but it isn’t the free upgrade a lot of players think it is. Hotter is not better; it’s a trade. You buy more drive and a fatter, more compressed sound, and you pay for it in top-end clarity, dynamic range, and clean headroom. If you play high-gain music, that trade is often a win. If you live on cleans, edge-of-breakup, and pedals, a hot pickup is usually the wrong tool — and I’ve swapped plenty back out on this bench for exactly that reason.

First, what “output” actually means

Output is just how much voltage the pickup sends down the cable, and it comes down to two things: how many times the coil is wound, and how strong the magnet is. Wind more turns of wire, or fit a stronger magnet (ceramic instead of alnico, say), and you get more output. That’s the whole trick.

The number everyone quotes — DC resistance, the “8k” or “15k” reading you get off a multimeter — is only a rough proxy. It tells you roughly how much wire is on the bobbin, not how loud or how good the pickup is. Two pickups can read very different DCR and put out nearly the same signal, because wire gauge and magnet type change the picture. A vintage-style PAF humbucker usually lands around 7.5–8.5k; a high-output humbucker might read 14–16k or more. Handy as a ballpark, but don’t buy a pickup by its ohm reading. (I get into why in does a higher DC resistance mean a hotter pickup?)

Why more output usually means less treble

Here’s the part that surprises people. When you add winds to raise output, you also raise the coil’s inductance — and inductance climbs fast, roughly with the square of the number of turns. Higher inductance drags the pickup’s resonant peak — the frequency where it’s naturally loudest — down to a lower point.

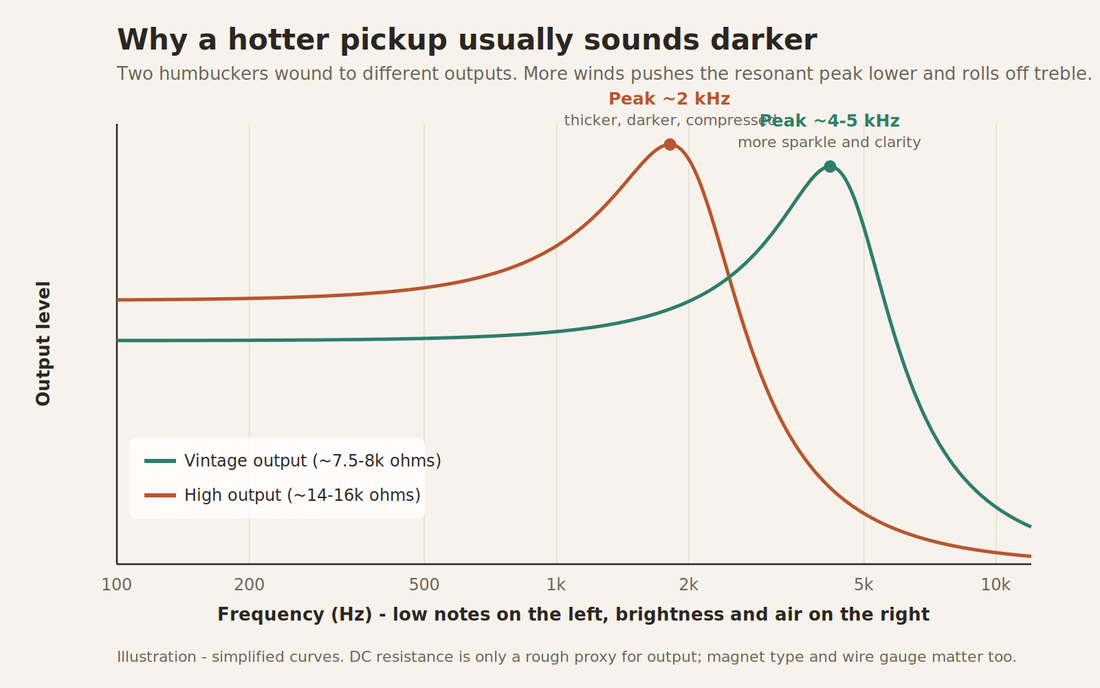

A vintage-output humbucker tends to peak up around 4–5 kHz, which is where you hear sparkle, air, and pick definition. Wind it hot and that peak slides down toward 2 kHz, and the response above it rolls off sooner. The result is a thicker, darker, more midrange-forward voice with less top-end shimmer. That’s not a defect — it’s physics, and it’s exactly why a lot of metal players want hot pickups. But it’s also why a high-output pickup will not brighten up a dark guitar. If anything it does the opposite. (Magnet choice pushes this around too — see ceramic vs. alnico pickups.)

A hot pickup doesn’t make you louder — it eats your headroom

The other myth is that high-output pickups make your amp louder. Not really. What they do is hit the front end of the amp harder.

Think of clean headroom as the room your signal has before the preamp starts to break up. A moderate-output pickup leaves a lot of that room, so your pick attack has somewhere to swing — dig in and it barks, back off and it cleans up. That swing is what we mean by dynamics and touch sensitivity. Push a hot pickup into the same amp and you’re starting much closer to the ceiling: earlier breakup and more apparent gain, but less clean headroom and a more compressed, samey response no matter how you pick. On a cranked high-gain amp that compression can feel great and tight. On a clean Fender or a pedal platform, it’s the first thing you’ll miss.

So when are high-output pickups actually the right call?

This is where the internet argues, and both sides have a point. Here’s my honest read from having a lot of these guitars on the bench.

Reach for high output when: you play hard rock or metal and want tightness and sustain at high gain; you’re fighting a loud stage and want more signal above the noise floor; or you specifically want that thick, saturated, compressed voice as a feature. In those jobs a hot humbucker earns its keep, and a vintage PAF can feel weak and undefined.

Skip high output when: you spend most of your time clean or on the edge of breakup; you run a lot of pedals and want them to react to your playing; you rely on the volume knob to clean the amp up; or you like the guitar’s natural top end and dynamics. There, a moderate or vintage-output pickup will almost always sound more open and more musical — and you can always get more gain from the amp or a boost, but you can’t buy back the clarity a hot pickup traded away.

The players who regret a hot-pickup swap are almost always the second group who bought for the first group’s reasons.

What I’d do before you spend a dime

Most “my pickups aren’t hot enough” complaints get solved without new pickups.

Raise the pickups

Pickup height is free output. Moving a pickup closer to the strings meaningfully raises level and reshapes the voicing — do this first. (Here’s how high your pickups should be.)

Check the pots and wiring

500k pots sound brighter and more open than 250k; a worn or wrong-value pot, or a tone cap doing something you don’t want, can make a perfectly good pickup sound dull and “low output” when it isn’t.

Turn up the amp, or add a boost

If you just want more gain, that’s an amp or pedal problem, not a pickup problem — and solving it that way keeps your clarity intact.

Only after all that, if the voicing itself is genuinely wrong for your music, swap. And on a used guitar, remember that changing pickups can affect originality and resale — more on that in should you swap the pickups on a used guitar?

Buying used: know what’s actually in it

When we set up a used guitar, we tell you whether the pickups are stock or a previous owner’s hot swap — because that changes how the instrument behaves far more than the spec sheet suggests. A “Standard” with a ceramic bridge bomb dropped in it is a different guitar than the one on the label. If you’re shopping, you can see what’s on the bench right now in our used guitars in stock.

FAQ

Do high-output pickups sound bad clean?

Not bad — different. Thicker, darker, and more compressed, with less sparkle and less dynamic swing. Some players love that. If you want a chimey, dynamic clean, a moderate-output pickup gets you there more easily.

Does higher DC resistance mean a better or louder pickup?

No. DCR is a rough proxy for how much wire is on the coil, not a measure of quality or even true output. Magnet type and wire gauge matter just as much. Don’t shop by the ohm reading.

Will a high-output pickup make my dark guitar brighter?

No — it usually makes it darker. More output lowers the pickup’s resonant peak and rolls off treble. If you want brightness, look at pickup height, pot values, or a brighter-voiced moderate-output pickup instead.

Are active pickups the same as high-output?

Related, not identical. Actives (like EMGs) use a battery-powered preamp for a hot, consistent, low-noise, compressed signal; passive high-output pickups get there with more winds and stronger magnets. Both trade some dynamic range for output and consistency — see active vs. passive pickups.
