Does a Higher DC Resistance Mean a Hotter Pickup?

Short answer: no, not reliably. DC resistance is the single most quoted pickup spec and the single most misunderstood one. It is not a measure of output. It is a measure of how hard it is to push current through a long piece of very thin copper wire, and there are several ways that number moves without the pickup getting one decibel louder.

I check DC resistance on almost every guitar that comes across the bench, so I am not here to tell you the number is worthless. It is genuinely useful. It just answers a different question than most people think it answers.

What the number actually measures

A pickup coil is thousands of turns of enamel-coated copper wound around a bobbin. Put a multimeter across the two ends and you are measuring the resistance of that wire from one end to the other. That is it. You are measuring the length and thickness of a piece of copper.

Output is a different physical event entirely. The string vibrates, it disturbs the magnetic field, and that changing field induces a voltage in the coil. What you hear is that voltage. Resistance and voltage are related in the sense that they both tend to rise when you add more wire, but they are not the same measurement, and you can move one without moving the other.

Covered humbuckers on a 1997 Les Paul Classic that came through the shop. You cannot tell a thing about the winding from the outside, which is exactly why people reach for the meter.

The wire gauge problem

Here is the trap. Pickup makers do not all use the same wire. 42 AWG is the traditional choice, but plenty of pickups are wound with 43 AWG, which is thinner. Thinner wire has more resistance per foot.

So take two coils, wind them with the same number of turns, over the same magnet, in the same bobbin. Wind one with 42 and one with 43. The 43 AWG coil reads meaningfully higher on the meter. It is not louder. It is thinner wire.

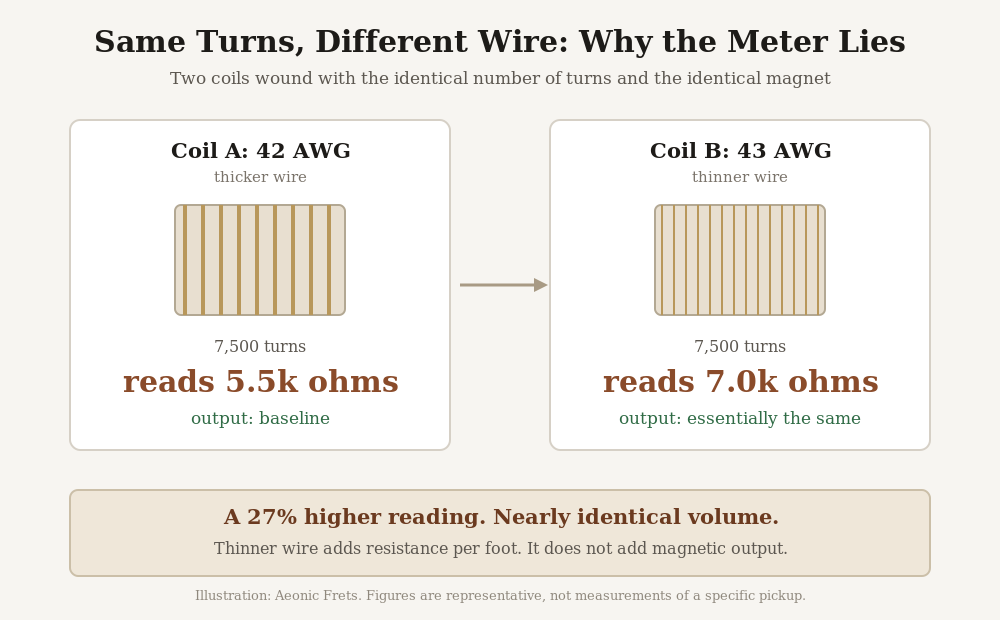

Illustration: same turns, same magnet, different wire gauge. The meter reading changes by roughly a quarter. The output barely moves. Figures are representative, not measurements of one specific pickup.

This is not a fringe case. It is the reason a Strat neck pickup can read higher than the bridge pickup in the same guitar while being obviously quieter when you play it. Some makers deliberately wind necks with finer wire and fewer turns. The meter tells you the opposite of what your ears tell you, and your ears are right.

What actually makes a pickup loud

Output comes mostly from two things: how many turns of wire are in the coil, and how strong the magnetic field is. A ceramic magnet pulls harder than an alnico 2. More turns means more signal. Coil shape matters too, because a tall narrow coil and a short wide coil with identical turn counts do not behave identically.

If you want one spec that actually predicts how a pickup will sound, it is inductance, not resistance. Inductance tracks the fatness and where the resonant peak sits, which is most of what you perceive as a pickup's character. The catch is that far fewer manufacturers publish it, which is a large part of why everyone quotes resistance instead. Resistance is the spec you can measure with a twenty dollar meter, so it became the spec everyone talks about.

Illustration: the left column changes what you hear. The right column changes the number on your meter.

Things that move the reading and nothing else

Temperature. Copper's resistance climbs about 0.39% per degree Celsius. A pickup measured in a cold shop in the morning and a warm one in the afternoon can differ by several percent. If a seller quotes 8.1k and you measure 7.9k, that is very likely the room, not a different pickup.

Where you put the probes. Measuring at the output jack sends you through the volume pot, the tone circuit and the switch. That is a reading for the whole circuit, not the coil. If you want the pickup's number, you measure at the pickup leads.

Your meter. A cheap meter with a dying battery reads high. Two people can measure the same pickup and disagree by half a kilohm because one of them needs a new nine volt.

So what do I use it for?

Three things, and they are all diagnostic rather than tonal.

First, checking a pickup is alive. An open coil reads as an open circuit. That tells me instantly whether a dead pickup is a broken coil or a wiring problem, and it is the fastest test in the shop.

Second, comparing within a known family. If I have two pickups I know are the same model wound with the same wire, and one reads 8.0k and the other 9.2k, that difference is real and meaningful. Comparison is valid when the other variables are held still. Across brands and wire gauges, it is not.

Third, spotting a swap. If a guitar is advertised as all original and the bridge pickup reads 16k, I know I am not looking at a factory vintage-output humbucker. That is worth knowing before money changes hands. If you want the full version of that inspection, we have written separately about how to tell if a used guitar's electronics have been replaced.

The honest take

Use the number as a rough bucket, not a ruler. Somewhere in the 7k to 9k range and you are probably in vintage-output humbucker territory. Up around 14k to 16k and you are almost certainly looking at a high-output pickup, often with a ceramic magnet. That much is fair.

What you cannot do is rank two pickups from different makers by their ohm readings and conclude the higher one is hotter or fatter. I have played 8k pickups that felt more aggressive than 12k ones, because the magnet was stronger and the coil geometry was different. The spec sheet does not capture that.

The real test has not changed. Plug it in, at the volume you actually play, through your own amp. Everything else is a shortcut, and this particular shortcut misleads more often than it helps.

The guitars in our current used inventory get a bench check before they go up, electronics included, so if you have a question about what is actually in one of them, ask.

FAQ

Is a 16k humbucker twice as loud as an 8k one?

No. Resistance does not scale with volume like that. A 16k pickup is very likely higher output, but the actual difference in perceived loudness is far smaller than the ratio suggests, and it will usually be a different character rather than simply more of the same.

Why does my neck pickup read higher than my bridge pickup?

Usually finer wire. Many neck pickups are wound with thinner gauge wire and fewer turns, which raises the resistance while lowering the output. It is normal and not a fault.

What should I measure instead?

Inductance is the better predictor of tone, if the maker publishes it. In practice, most players are better served by listening to demos of the specific pickup than by chasing any number at all.

Can I damage a pickup by measuring it?

No. A multimeter on the resistance setting sends a tiny current through the coil. It is completely safe. Just be careful with the soldering iron if you are disconnecting leads to get a clean reading.
