Are Locking Bridges and Tailpieces Worth It on a Les Paul or SG?

Short answer from the bench: for most players, a locking bridge and tailpiece is a convenience-and-stability upgrade, not a tone miracle. The real, repeatable wins are that nothing goes flying across the room when you change strings, the bridge can't creep or tilt, and top-wrapping finally stays put. The tone and sustain claims? Those are a lot softer than the marketing wants you to believe, and I'll tell you exactly why below.

I've had hundreds of Gibsons and imports on the bench, and I've installed my share of TonePros and Faber kits. Some guitars genuinely needed it. Plenty didn't. Here's how to tell the difference before you spend the money.

What a "locking" bridge and tailpiece actually is

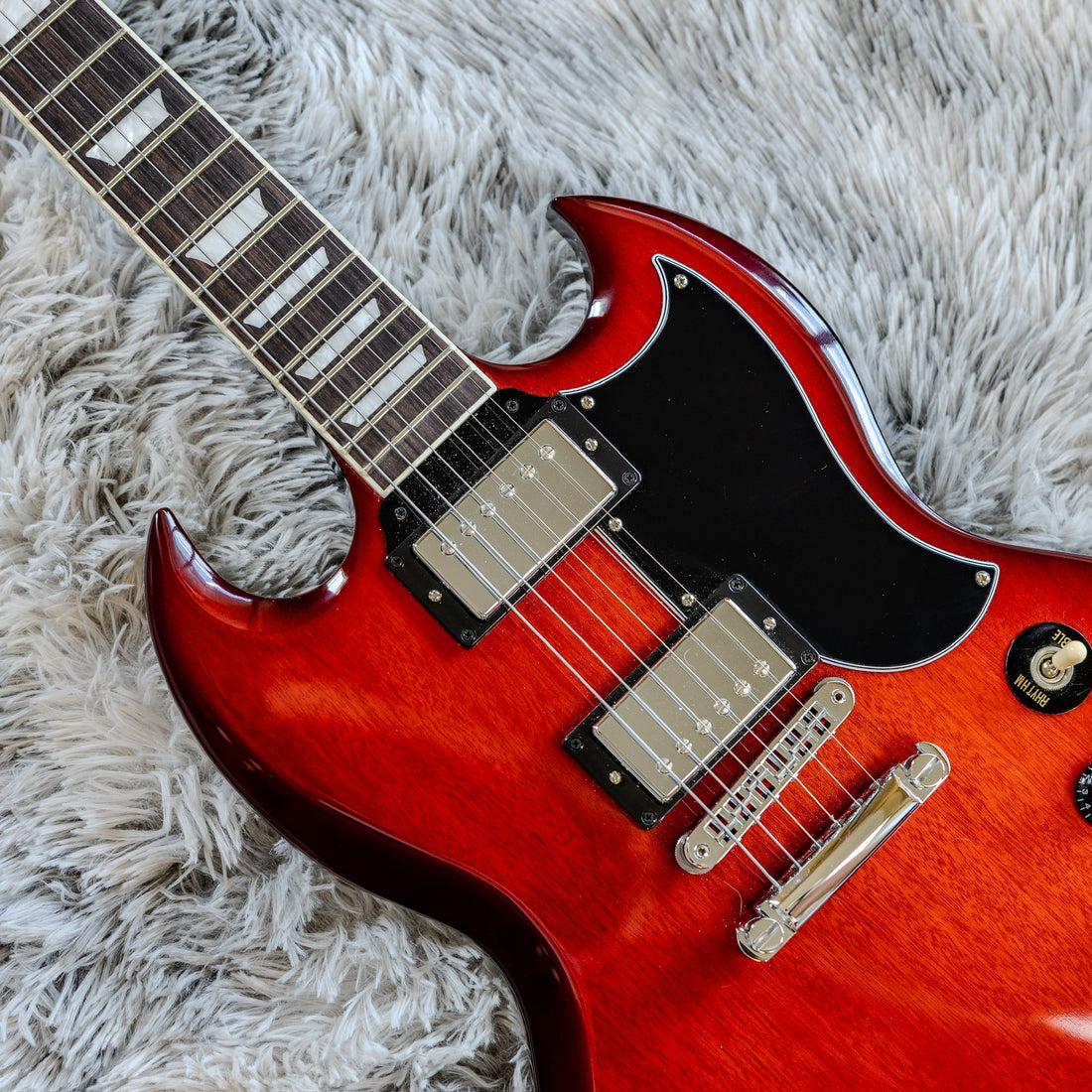

On a normal Les Paul or SG, the tune-o-matic bridge and the stopbar tailpiece each rest on two posts (studs) that thread into press-in bushings in the body. Nothing clamps them down. String tension holds everything in place, and that's it. Take the strings off and the bridge lifts right out; the little saddles and height thumbwheels are free to wander.

A locking system changes that. The two big names are TonePros and Faber. TonePros uses small set screws on the bridge and tailpiece that pinch down onto the posts, plus studs that lock into the bushings, so the whole assembly freezes solid to the body. Faber's Tone-Lock does the same job with locking studs and fixed spacers instead of loose thumbwheels. Different execution, same goal: stop the hardware from moving.

How it actually works

Once you see it in cross-section, the whole thing makes sense. A standard post lets the bridge foot ride loosely on a thumbwheel, so it can rock and even lift under tension. A locking post adds a set screw that pinches the bridge foot to the stud, so it can't shift at all.

What it actually fixes (the honest list)

These are the benefits I'd stake my name on, because I see them on the bench every week:

• Nothing falls off during a string change. Pull all six strings on a stock Les Paul and the bridge, saddles, and thumbwheels are loose. Drop one saddle into the control cavity and you'll understand the appeal fast. A locked bridge stays exactly where it was.
• The bridge can't shift or tilt. A stock tune-o-matic can lean forward under tension over time, which nudges your intonation and action. Lock it and it stays where you set it.
• Top-wrapping finally behaves. If you wrap the strings over the top of the stopbar for a slinkier feel, a stock tailpiece tends to get pulled up off its posts. A locking tailpiece stays seated. This is the single most common reason I install one.
• It rescues loose or worn bushings. On an older or heavily played guitar with a bushing that's gotten sloppy, locking studs take up the slack and stop the annoying rattle and post lean.

If any of those describe your guitar or your habits, the upgrade earns its keep on convenience alone.

What it probably doesn't do

Here's where I part ways with the hype. Manufacturers and a lot of forum posts will tell you a locking bridge dramatically improves sustain and tuning stability and makes the whole guitar "ring as one." I'd pump the brakes on that.

Is there sometimes an audible difference after the swap? Sure. But when a good aftermarket bridge sounds better, it's usually because you replaced a cheap pot-metal import bridge with a heavier, better-machined one (many use a quality Gotoh base). That's a mass-and-materials change, not proof that the locking mechanism itself is transferring magic vibration into the body. Swap a light zinc bridge for a heavier one without locking and you'll often hear the same shift.

Tuning stability is similar. If your Les Paul won't stay in tune, the culprit is almost always the nut slots, the string windings at the tuner post, or old strings — not a bridge that's moving microns. I've fixed far more tuning complaints with a proper nut cut than with a locking bridge. So by all means enjoy the side benefits, but don't buy a locking kit expecting it to cure a tuning problem it was never causing.

The one thing people get wrong: inch vs. metric studs

This trips up more buyers than anything else, so read carefully before you order. Tailpiece studs come in two thread sizes. Gibson USA guitars use imperial (inch) studs — the classic 5/16-24 thread. Imported guitars — Epiphone, and most Japanese and other Asian builds — use metric 8 mm studs. Buy the wrong one and it simply won't thread into your bushings.

It gets one layer trickier: the Nashville-style bridge posts on modern USA Gibsons are themselves metric because those parts are imported, even though the tailpiece studs are inch. Both TonePros and Faber sort their kits out by guitar, so match the kit to your exact instrument rather than guessing. When in doubt, measure or ask — a mismatched kit is the most common reason a "simple" install turns into a return.

So — should you do it?

Worth it if: you top-wrap, you change strings constantly, you gig hard and want zero drama, or your guitar has a loose bushing or a bridge that leans. In those cases it's one of the cheapest, most genuinely useful upgrades you can make, and it's fully reversible.

Skip it if: your stock bridge is seated, your guitar holds tune fine, and you're only chasing a sustain bump. Spend that money on a real setup and a properly cut nut first — you'll hear a bigger difference.

One caution on collectible instruments: if you've got a vintage or otherwise valuable Gibson, keep the original hardware in the case. The good news is that a locking kit installs into the existing bushings without modification, so you can always put it back to stock before you sell. If you're shopping used and want a solid platform to tinker with, browse what's on the bench in our guitars in stock.

FAQ

Do locking bridges kill your tone?

No. This is an old worry with no real support. If anything changes, it's from the mass and machining of the new bridge, not from the locking action deadening the guitar. A well-made locking bridge sounds like a well-made bridge.

Will a TonePros or Faber bridge fix my tuning problems?

Usually not. Tuning instability on a Les Paul or SG almost always comes from the nut, the string windings, or worn strings. Fix those first. A locking bridge helps only in the narrow case where the bridge itself was physically shifting.

Can I install a locking bridge myself?

Yes, it's a drop-in job that uses your existing bushings and takes about fifteen minutes — as long as you order the correct thread size for your guitar. You'll usually want to reset intonation and bridge height afterward, so it pairs well with a fresh string change and setup.

Is it worth it on an Epiphone?

It can be. Import stopbars and bridges are the ones most likely to be light pot metal, so a TonePros or Faber metric kit gives you a sturdier, better-seated bridge and the same convenience benefits. Just be sure to buy the metric (8 mm) version.
