Coil Split vs. Coil Tap: What's Actually Different (and Why Everyone Mixes Them Up)

Here's the short version, because it's the part almost everyone gets wrong: a coil split and a coil tap are two different things, and most people who say "coil tap" actually mean "coil split." I hear it across the counter every week — someone points at a push-pull knob on a Les Paul and calls it a coil tap. Nine times out of ten, it's a split. The guitar's spec sheet often calls it a tap too, so I don't blame anyone for the confusion.

It matters because the two do genuinely different things to your sound, and if you're buying a used guitar partly for that switching, you want to know what you're actually getting. So let me clear it up the way I would if you handed me the guitar over the bench.

The one-sentence version

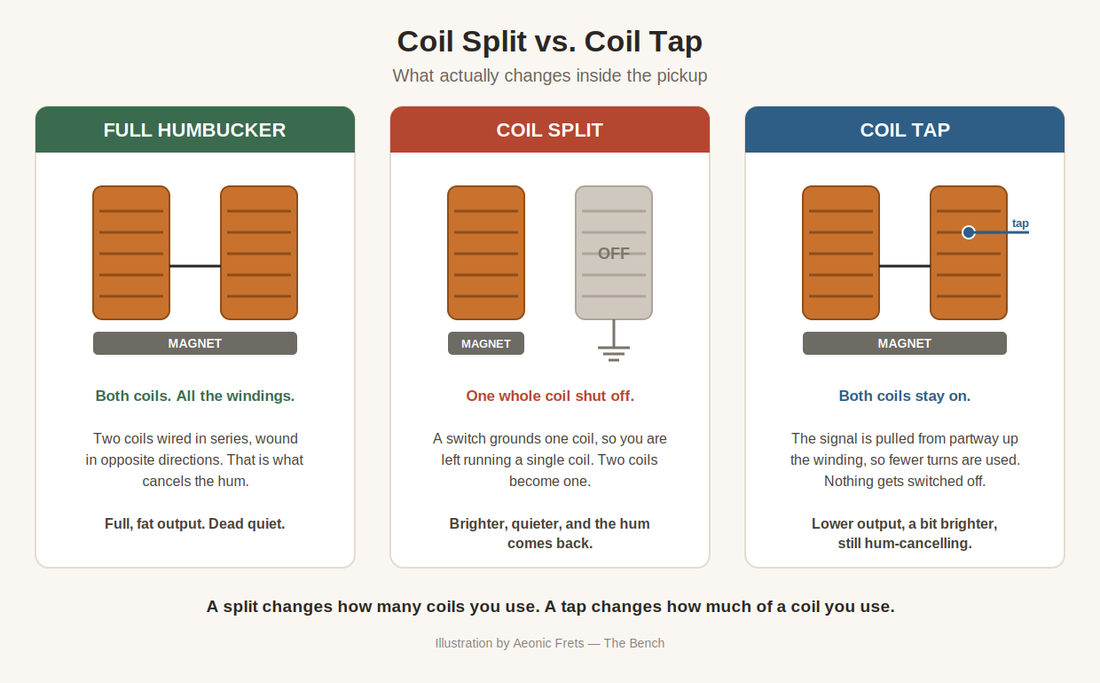

A coil split shuts off one whole coil of a humbucker so you're left running a single coil. A coil tap leaves both coils working but pulls the signal from partway up the winding, so you're using fewer turns of wire. Put another way: a split changes how many coils you use; a tap changes how much of a coil you use.

What a coil split actually does

A standard humbucker is two coils, wound in opposite directions and wired together in series. That opposite winding is the whole trick — it's what cancels the 60-cycle hum that single coils are famous for, and it's why humbuckers sound fatter and darker. Two coils stacked together also means more output.

When you split that humbucker, a switch grounds one of the two coils. It goes silent, and you're left listening to a single coil on its own. The result is brighter, thinner, and noticeably quieter — and because you've thrown away the second coil, the hum cancellation goes with it. Plug into a high-gain amp under fluorescent shop lights and you'll hear that single-coil buzz come right back.

One practical note for anyone modding or shopping: splitting needs a humbucker with four-conductor wiring, so the switch can get at the link between the two coils. A vintage-style pickup with a single braided lead can't be split without being rewired. If a used guitar has push-pull pots wired to "vintage" two-conductor pickups, that switch isn't doing what someone thinks it is.

What a coil tap actually does

A coil tap is a different animal, and it lives inside the pickup, not in the switch. When a pickup is tapped, the maker solders an extra lead wire onto the coil somewhere partway through the winding — say two-thirds of the way up. Flip to that lead and you're only using the turns of wire up to that point instead of the full coil.

Fewer turns means lower output and a brighter, more open voice — but you haven't shut anything off. On a tapped single coil you get two flavors of the same pickup, hot and vintage, from one bobbin. On a humbucker with a tapped coil, both coils stay in the circuit, so you keep most (sometimes not quite all) of the hum rejection. That's the big audible difference from a split: a tap stays quiet.

The catch is that a real tap requires a specially wound pickup with that extra lead built in. You can't tap a normal pickup by rewiring the guitar — the tap point has to exist inside the coil. That's exactly why true coil tapping is far less common than splitting: most players and most factory guitars are working with ordinary four-conductor humbuckers, which split easily but can't be tapped.

Why the terms get mixed up

Because the industry itself uses them loosely. Plenty of manufacturers, wiring diagrams, and mod pages print "coil tap" on a switch that is electrically a coil split, and the habit has been around long enough that it's basically baked in. If it helps, the clean rule of thumb the pickup world falls back on is: you split humbuckers, and you tap single coils.

PRS is the poster child here. Their five-way rotary and blade switches, and the push-pulls on models like the S2 and CE lines, are all marketed under the "coil tap" banner — but electrically they're splits. On a lot of PRS designs it's actually a partial split: rather than dumping one coil straight to ground, the wiring leaves a little of the second coil in play so the split position doesn't get too thin or too noisy. It's a smart bit of engineering, and it's a big reason PRS split tones sound fuller than a lot of others. It is still, by the strict definition, a split and not a tap.

So which one is on the used guitar you're eyeing?

Ninety-plus percent of the time, if a modern HH guitar has a switch for "single-coil" tones — a push-pull pot, a mini toggle, a PRS-style rotary — it's a coil split. True taps show up mainly when a specific pickup model is built with a tap lead, and the spec will usually name the pickup rather than just the switch. When I've got a guitar on the bench and I want to be sure, I pop the control cavity: a split runs a wire from the switch to the junction between the two coils; a tap comes off a fourth or fifth lead on the pickup itself.

None of this makes one better than the other, and honestly, for most players it changes very little about whether to buy the guitar. A split gives you a usable brighter, thinner voice for cleans and funk — just don't expect it to become a real Stratocaster; it never quite does. A tap is subtler: same character, just less of it. If you want to hear PRS's take on it, we usually have a few split-equipped instruments in the shop, like the PRS Custom 22 or a push-pull Les Paul Standard '60s, and you can hear the difference yourself. The full in-stock rack is here.

FAQ

Is coil splitting bad for my pickups?

No. Splitting doesn't harm anything — it's just a wiring switch that grounds one coil. You can flip it as much as you like. The only real "downside" is the hum that returns in the split position, which is normal single-coil behavior, not a fault.

Can any humbucker be coil split?

Only if it has four-conductor wiring, so the switch can reach the link between the coils. A pickup with a single braided (two-conductor) lead can't be split unless it's rewired or replaced. Most humbuckers made in the last few decades are four-conductor.

Does a coil tap remove hum like a full humbucker?

Largely, yes — because both coils stay active, a tap keeps most of the hum cancellation. That's the key difference from a split, which shuts one coil off and brings the single-coil hum back.

If a spec sheet says "coil tap," is it lying?

Not lying, just using the loose industry shorthand. On a humbucker-equipped guitar, "coil tap" almost always means coil split. If you want to know for certain, look at the pickup: a real tap needs an extra lead wire built into the coil.
