Why Is My Telecaster Neck Pickup So Quiet and Dark?

Short answer: a Telecaster neck pickup is quieter and darker than the bridge by design. It's a smaller coil under a metal cover, while the bridge pickup is a bigger coil sitting on steel in a steel bridge plate. That's part of the Tele sound. But when the neck pickup is so quiet that you have to turn the amp up every time you switch to it, or so woolly that it sounds like a blanket over the speaker, there's usually a specific cause. In rough order of how often I see them: the pickup is sitting too low, the guitar has vintage-style wiring, the cover is doing more than its share, or something in the wiring has gone wrong.

Here's how to tell which one you're dealing with, and what fixes it without spending money first.

Why the Tele neck pickup is built to be the quiet one

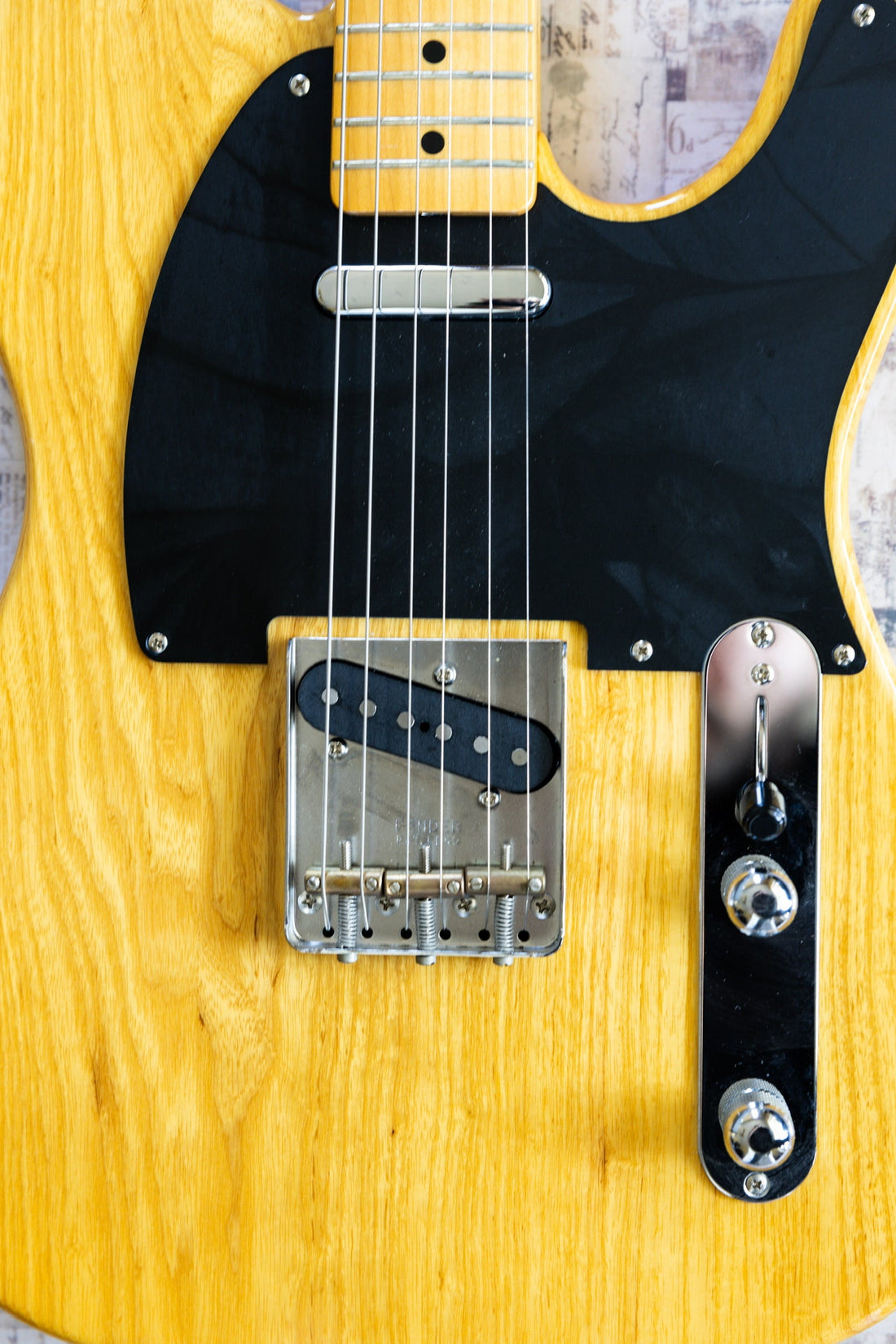

Leo Fender didn't design the two Tele pickups as a matched pair. The bridge pickup came from Fender's lap-steel work: a fairly large coil on a copper-plated steel baseplate, mounted in a steel bridge plate. The steel reinforces the magnetic field, which adds output and low end. The neck pickup is a small, squat coil that fits under the end of the fretboard, and it's covered by a metal cap.

That cover matters. Any metal close to a pickup coil picks up small eddy currents, and those take away some treble and some perceived loudness. A bare bridge pickup and a covered neck pickup were never going to sound balanced.

There's one more twist. On most guitars the neck pickup is the louder of the two, because the string swings wider near the middle of its length. A Strat or a Les Paul usually has to be set up so the neck pickup doesn't overpower the bridge. The Tele works the other way, so if you're used to other guitars, it can feel like something's wrong when nothing is.

So some imbalance is normal. The question is how much. When a Tele comes across the bench, I expect the neck pickup to sound rounder and a little lower in level. I don't expect to lose half my volume or all my note definition when I flip the switch.

Check #1: pickup height (the usual cause)

This is the one I find most often, and it's free to fix. The Tele neck pickup is adjusted by two screws through the pickguard, and it's common to find it sunk right down, sometimes nearly flush with the guard. Owners lower it to chase a buzz, or it was never set properly in the first place. Every bit of extra distance from the strings costs output and clarity.

To check: fret the high and low E at the last fret and measure from the bottom of the string to the top of the pickup cover. Start around the same gap you'd use on a Strat neck pickup, then raise it a little at a time and listen. Go too far and the magnet pulls on the string, which shows up as warbly, out-of-tune sustain, especially on the wound strings. Our pickup height guide covers the method and starting measurements.

Balance from both ends. Raising the neck pickup is half of it. Lowering the bridge pickup slightly is often the other half, and a lot of Teles leave the factory with the bridge pickup set hot.

Check #2: you may have vintage wiring, not a bad pickup

This one catches people with reissues. From 1952 until late 1967, Teles didn't have the three-way layout most of us know. The position nearest the neck gave you the neck pickup through a fixed bass preset: a capacitor that cut the treble hard, with no tone knob. The middle position was the neck pickup alone with the tone control. The bridge position was the bridge pickup. There was no neck-and-bridge-together sound at all.

Fender switched to modern wiring (neck / both / bridge, master volume and tone) in late 1967, but vintage-correct reissues still sometimes ship with the old circuit. The American Vintage '52 is the classic example: Fender's spec lists the vintage switching and says the guitar ships with the parts and a wiring diagram to convert it to modern. We had a '90s American Vintage '52 with its original wiring and pickups, plus a few extra parts that had never been installed. That's why its neck position has such a deep, warm voice: the circuit is doing exactly what it was designed to do.

If you've got a vintage-wired Tele and the "neck" sound you keep reaching for is the dark preset, try the middle position instead. That's the neck pickup with normal tone. If you want the in-between sound of both pickups together, converting to modern wiring is easy for a tech and completely reversible, as long as the original parts go in the case pocket. On a collectible reissue, keep those parts.

Check #3: the cover

If height is right and the wiring is modern, and it still sounds like there's a sock over the neck pickup, the cover is the next suspect. Covers aren't all the same. Brass covers are usually considered darker than nickel-silver ones, and some players find that simply disconnecting the cover's ground wire opens things up a little. Taking the cover off entirely is a popular mod and gives a brighter, more open neck sound. The trade-off is that the coil is exposed and there's a chance of microphonic squeal at high gain. A good tech will usually wax-pot the coil or wrap it before leaving it bare.

My take: the cover is a real factor, but it's a small one next to height. I'd never pull a cover before I'd set the height properly, and I'd want a player to live with a correctly set pickup for a week or two before modding anything.

Check #4: when it's actually a fault

Here's what doesn't fall under "that's just a Tele":

• Very low volume with a thin, nasal sound in the middle position. If both pickups together sound weaker and hollower than either one alone, one pickup may be out of phase with the other. That usually means a replaced pickup, or wires swapped somewhere.
• Neck pickup cuts in and out, or goes silent when you tap it. Look for a cold solder joint, a broken lead, or a worn switch.
• Weak and dull, and height and wiring check out. Have the pickup's DC resistance measured. An open or partly shorted coil can read very differently from spec. Resistance alone doesn't tell you how a pickup will sound, but a reading far from normal is a real clue.
• The tone knob seems to do nothing in the neck position. That's normal in the vintage preset position. On modern wiring it points to a bad tone pot or capacitor.

Should you just replace the neck pickup?

Sometimes, but last, not first. Aftermarket Tele neck pickups with hotter winds, uncovered designs, or different magnets can balance a guitar better, and on a player-grade Tele that's a perfectly reasonable move. On a collectible Tele or an all-original reissue, I'd go the other way. Originality affects value, and in my experience most "dead" neck pickups turn out to be set too low or wired vintage-style. Keep the original if you swap it.

If you're shopping for a Tele and neck tone is high on your list, plug in and try all three positions before anything else. That tells you more about the setup and wiring than any spec sheet. We currently have a Fender Custom Shop Andy Mooney World Stamp Telecaster in stock, and the rest of what's available is in our in-stock collection.

FAQ

Is it normal for a Telecaster neck pickup to be quieter than the bridge?

Yes, a little. The neck pickup is a smaller coil under a metal cover, while the bridge pickup is bigger and sits on steel. A modest drop in level and some treble loss is normal. A big volume jump when you switch usually means pickup height needs work.

Why does my Tele neck position sound muffled, with the tone knob doing nothing?

You probably have vintage-style wiring, as used from 1952 to 1967 and on some reissues. The position nearest the neck is a fixed bass preset that bypasses the tone control. Try the middle position, which is the neck pickup with normal tone.

Does removing the Tele neck pickup cover make it louder?

Usually it's a bit brighter and more open, and many players hear that as louder. The change is smaller than getting the height right, and a bare coil can be more prone to microphonic squeal at high gain.

Will converting vintage Tele wiring to modern hurt resale?

If it's done cleanly and the original parts are kept with the guitar, it's easily reversed and most buyers won't mind. On collectible reissues, buyers do check for original wiring, so keep everything.
