Bent Tune-o-matic Posts: Why Your Bridge Leans Toward the Neck, and How to Straighten It
If you sight down the side of a Les Paul or SG and the tune-o-matic looks like it's tipping toward the pickups, the posts are usually bending. Years of string tension, often helped by a stopbar tailpiece screwed all the way down, slowly pull the tops of those thin posts toward the neck. A slight lean on a vintage-style bridge is common and often harmless. It turns into a real problem when the bridge rocks on its thumbwheels, the wheels get hard to turn, or the intonation won't hold. The fix is usually cheap: take some load off the bridge, then straighten or replace the posts. Once in a while the post holes themselves were drilled crooked, and that's a different, bigger job.
Why tune-o-matic posts lean forward
A string under tension pulls along its length in both directions. In front of the bridge, it runs nearly flat toward the neck. Behind the bridge, it angles down toward the tailpiece. Because the back half points downward, less of its pull goes backward than the front half pulls forward. What's left over is a small, constant pull on the top of the bridge toward the neck.
The steeper that rear angle, the bigger the leftover pull. Some rough numbers: with a typical set of 10s carrying somewhere around 100 pounds of total tension, a 15-degree break angle leaves about three pounds pulling the bridge forward. Double the angle and it's roughly 13 pounds. That's my own back-of-the-envelope math, not a published spec, but it shows the trend. That isn't much, but it never lets up, and it's all on the tops of two skinny threaded posts.
That's why the decked tailpiece keeps coming up. On the Gibson forum, the experienced repair people say the same thing again and again: ABR-1 bridges lean forward when the tailpiece is bottomed out. Their fix is to raise the tailpiece and ease the string angle over the bridge.
ABR-1 vs. Nashville: why it's mostly a vintage-style problem
The two common tune-o-matic families mount very differently:
- ABR-1 (Historics, many Custom Shop and "Original" style models): thin 6-32 threaded posts that screw straight into the wood, with small thumbwheels.
- Nashville (most modern USA Gibsons since the mid-'70s, plus many imports): fatter posts that thread into metal inserts pressed into the body, with bigger thumbwheels.
A thin post screwed into wood bends more easily than a thick one threaded into a metal insert. So the classic forward lean is mostly an ABR-1 complaint. Nashville bridges aren't immune, and when one leans, a loose insert is worth checking as well as the post.
The other causes worth knowing
- Posts set too high. StewMac's guideline is that a properly installed tune-o-matic post sticks up about 1/2" above the top. A post backed out much further than that is a longer lever, and it bends more easily.
- Heavier strings. More tension means more forward pull. It's not usually the cause by itself, but it speeds things up.
- Soft post material. Owners on the Gibson forum describe the stock posts as soft brass, and stainless or steel replacements are a common upgrade. I haven't been able to confirm what Gibson has used across every era, so treat that as a general tendency rather than a spec.
- Holes drilled at an angle. Some owners, especially of SGs, report posts that lean even though they aren't bent, because the hole was drilled slightly off vertical at the factory. How common that is depends on who you ask, but it does happen. It matters because the fix is completely different.
How to check yours in five minutes
- Sight it from the treble side. Get your eye level with the top and look at the post against something vertical. A small square set on the top makes the angle obvious.
- Check that the bridge sits flat. StewMac's rule is that the underside of the bridge should rest flat on both thumbwheels, not tipped at an angle. If it rocks or sits on one edge of a wheel, the post isn't square.
- Try the thumbwheels. Bent posts make the wheels bind. If one wheel turns smoothly and the other fights you, that's a clue.
- Bent post or crooked hole? Slacken the strings, lift the bridge off, and slowly turn the post with a screwdriver while you watch its tip. A bent post wobbles in a little circle as it turns. A straight post in an angled hole keeps leaning the same way no matter how you turn it. One Gibson forum tip does the same job by threading a nut onto the post and watching it as you turn.
One caution from StewMac: don't wiggle the posts around while you're turning them. On an ABR-1 the thread is cut into the wood, and working a post side to side wallows out the hole.
What fixes it
1. Take the load off first
Raise the stopbar until the strings pass over the back edge of the bridge and touch only the saddles. That one change cuts the forward pull and the downforce. It's the same advice we give for a sagging bridge in our piece on collapsed tune-o-matics. If you like the feel of a decked tailpiece, top-wrapping the strings gets you most of that feel with far less load on the posts.
2. Straighten or replace the posts
StewMac puts it simply: bent posts should be straightened or replaced. Replacement posts are cheap, so a new pair is usually the cleaner fix. Measure the thread before you order. ABR-1 posts are 6-32, while many imports use metric posts. If you do it yourself, thread the new posts in until about 1/2" is left above the top, keep them vertical, and don't rock them on the way in. If the wood threads are already stripped, StewMac's fix is to reinforce the hole with glue before the post goes back in. On a nicer guitar, that's where I'd hand it to a tech.
3. Crooked holes: plug and redrill, or live with it
If the hole itself is off vertical, a new post will lean exactly like the old one. The real fix is to plug the hole and redrill it square. That's a job for someone who has done it before, because a mistake shows up on the top. If the bridge sits flat, the guitar intonates, and the lean is only visible when you go looking for it, I'd leave it alone. That goes double on a Historic or a vintage piece.
4. Lock it down
Locking hardware such as TonePros holds the bridge firmly to its posts so it can't rock, and some players fit it for exactly this reason. It's a reasonable upgrade, but it won't straighten a bent post or fix a crooked hole, so sort those out first. We weigh up the tradeoffs in are locking bridges worth it on a Les Paul or SG?
Should a leaning bridge put you off a used Gibson?
Almost never by itself. A forward lean mostly tells you how the last owner set the tailpiece. It's a parts-and-an-hour fix, not structural damage. What I'd watch for is the combination: a lean plus a bridge cranked high on its posts may point to a neck-angle problem, and a lean plus a loose or wallowed post hole means the threads in the wood need repair. Check the bridge is sitting flat, the wheels turn and the intonation is right, then judge the guitar on its neck, frets and finish.

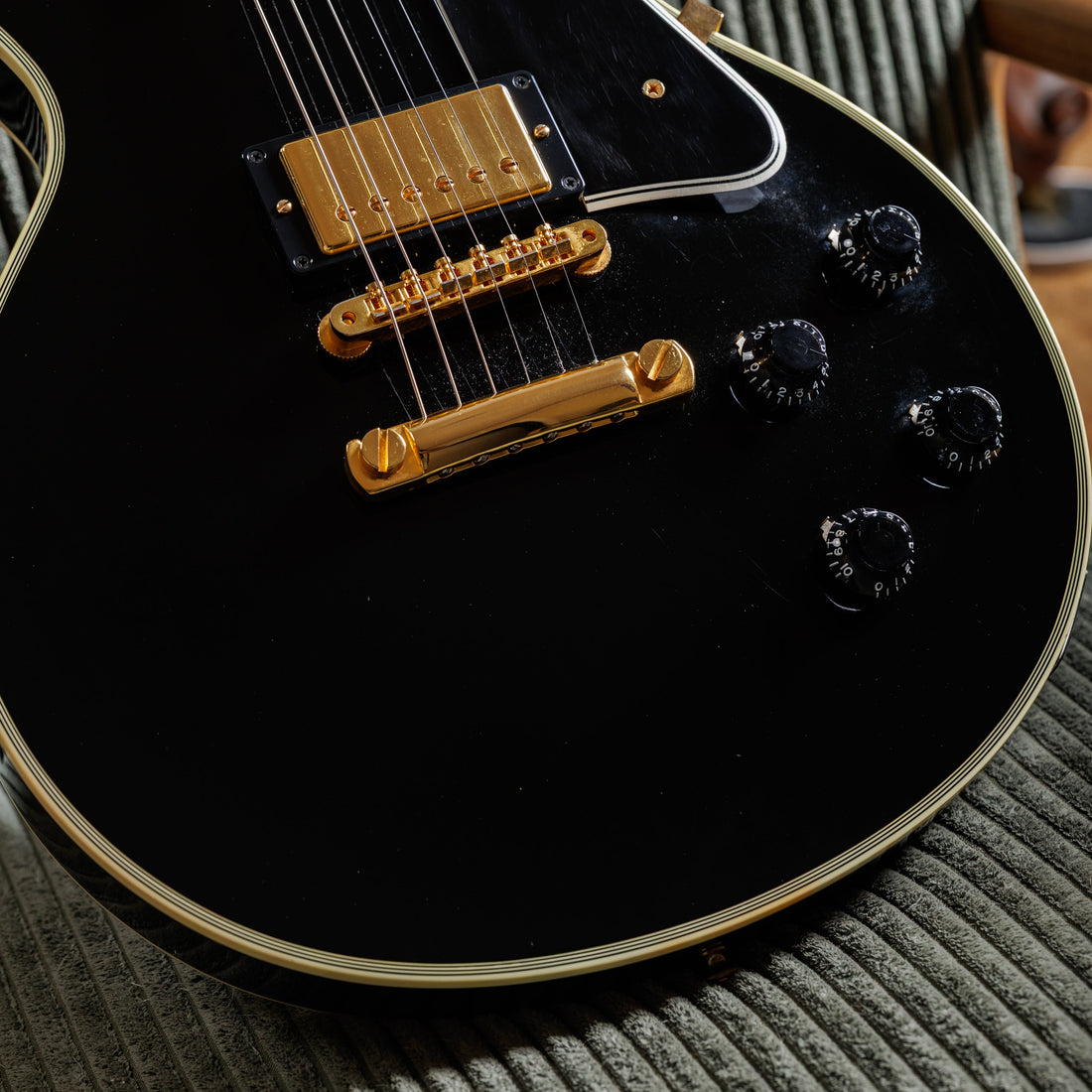

This is the kind of thing that gets looked at on the bench before a guitar is listed. The '57 Les Paul Custom reissue above has an ABR-1-style bridge and is noted as having an excellent setup, with frets that look nearly new. The 2010 Les Paul Traditional recently had a setup, with medium action and intonation called spot on. You can see everything else that's been through inspection in our guitars in stock.
FAQ
Is a slight lean on my tune-o-matic normal?
A small forward lean on an ABR-1-style bridge is common on guitars that have spent years at pitch. If the bridge sits flat on its wheels, the wheels turn freely and the guitar intonates, it doesn't need fixing. Raising the tailpiece a little will help keep it from getting worse.
Can I just push the bridge back upright?
If the lean is in the posts, pushing the bridge only moves it until the strings pull it forward again, and forcing a post can wallow out its hole. Slacken the strings and deal with the post itself.
Do Nashville bridges lean too?
They can, but it's less common, because the posts are thicker and thread into metal inserts. If one does lean, check whether the insert has loosened in the wood as well as whether the post is bent.
