'69 or '72 Thinline Telecaster? Two Different Guitars Under One F-Hole

If you're shopping for a used Thinline Telecaster, the first question isn't really which year. It's which of two very different guitars you want. The '69-style Thinline is a Telecaster with a hollowed-out body: two single coils, the regular Tele bridge, the regular four-bolt neck. The '72-style shares the body and f-hole, but Fender swapped the pickups, the bridge, the neck joint and the truss rod. Pick the '69 if you want a Tele with a little more air that still twangs. Pick the '72 if you want a fatter, rounder Fender that doesn't sound like a Les Paul. Then check the details below, because the reissues don't all follow the originals as closely as the names suggest.

Why the Thinline exists at all

Fender didn't build the Thinline to make a jazz box. It was a weight problem. By the late '60s, light ash was getting hard to find while heavy ash was plentiful, and Telecasters were getting heavier. Fender tried routing cavities under the pickguard in 1967, didn't like the result, and handed the job to Roger Rossmeisl, the German luthier behind a lot of Fender's hollow and semi-hollow designs of that era. His answer was to rout out both wings of the body from behind, glue a thin panel over the back, and cut a single f-hole on the bass side. The Thinline debuted in 1968 (some sources date it to 1969), in natural ash or mahogany.

Illustration: a simplified look inside a Thinline body. The wings are chambered and the center stays solid. Not to scale, and chamber shapes vary by era and factory.

That solid center matters. The bridge and pickups sit on solid wood, so a Thinline doesn't behave like an ES-335, much less a full hollowbody. You get some extra air and a slightly softer attack, but it stays a Tele at heart.

What changed in 1971–72

Around 1971 (sources split between '71 and '72, which is why the reissue is called the '72), Fender rebuilt the Thinline around Seth Lover's new Wide Range humbuckers. Lover had designed Gibson's PAF in the '50s and then joined Fender, and the Wide Range was his attempt at a humbucker that kept some Fender clarity. With the pickups came a bigger reshaped pickguard, a Strat-style hardtail bridge with six saddles and strings through the body, and Fender's new three-bolt neck joint with a Micro-Tilt adjuster and a "bullet" truss rod you adjust at the headstock.

Diagram: the main spec differences between the original '69-style and '72-style runs. Reissues vary, so check the guitar in front of you.

The original run ended in 1979. Since then both versions have been reissued over and over: Fender Japan from 1986 to 1998, the Mexican Classic Series '69 and '72 from the late '90s until about 2018, Squier versions, and USA models like the American Elite Thinline and the American Vintage II 1972 Telecaster Thinline.

How they sound and feel

The '69: a Tele with some air

The single-coil Thinline still has the snap and bite of a Telecaster bridge pickup. The chambers take a little edge off the attack and add a bit of openness, especially played clean. It's a good fit if you love a Tele but find a solid one a little harsh. You also keep the three-saddle Tele bridge on vintage-style versions, with its tone and its intonation compromises.

A Fender American Elite Telecaster Thinline from our past inventory. It's a modern take on the single-coil layout descended from the '69, here with 4th Gen Noiseless pickups and S-1 switching.

Not every single-coil Thinline is a vintage copy. The American Elite in the photo above came through here near-new, with 4th Gen Noiseless pickups, S-1 switching and a modern compound-radius neck with a satin finish. It's the same body idea, but a very different guitar from a vintage-spec '69 reissue. Read the spec sheet, not just the f-hole.

The '72: thicker, but still a Fender

The humbucker version is the one people fall for. It's warmer and fuller than a regular Tele, quiet, and it holds together under gain without going to mush. It doesn't sound like a Les Paul, and that's the point. On the Classic Series '72 reissue we had on the bench, the original pickups gave that thicker Wide Range-style voice and still kept plenty of clarity and definition.

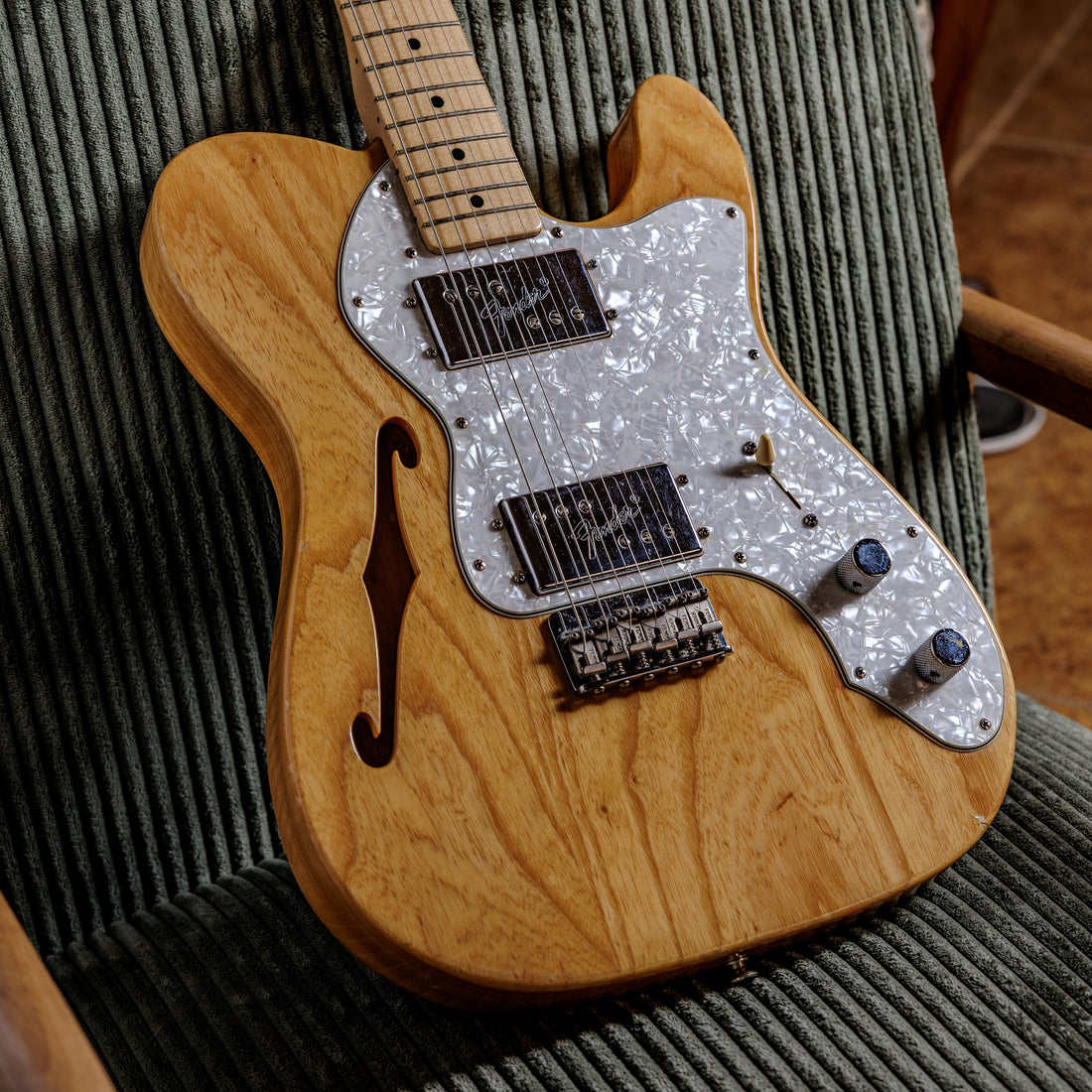

A Fender Classic Series '72 Telecaster Thinline from our past inventory, with natural ash, an f-hole, a pearloid guard and two Wide Range-style humbuckers.

There's a catch with older reissues. Original Wide Ranges used CuNiFe magnets as the pole pieces, and that's a big part of their clarity. Most reissues before roughly 2020, including the Mexican and Japanese ones as far as I've been able to confirm, used ordinary humbucker construction under the Wide Range cover. They're good pickups, but they're darker than a real CuNiFe set. The American Vintage II 1972 Thinline brought CuNiFe back. We dug into the whole story in why '70s Wide Ranges sound different from the reissues.

Is it actually lighter?

Usually, but don't count on a featherweight. Fender's own history says the original Thinline came in at about half the weight of a solid Tele. Real-world reissues vary much more than that suggests, because ash density varies and the chambers only remove so much. Guitar.com's review sample of an American Vintage II 1972 Thinline weighed about 8.2 lb, and one dealer listing we found for a 2003 Mexican '72 put it at 7 lb 13 oz. If weight is why you're buying one, ask for the actual number.

What to check on a used Thinline

• The neck joint on '72s. The three-bolt joint has a reputation, much of it from '70s production. On a reissue it's usually fine. Still check that the neck doesn't shift in the pocket, and see whether the Micro-Tilt screw has been cranked all the way to get the action down. That can point to a neck-angle problem.
• The truss rod. A '72-style bullet rod adjusts at the headstock, which is handy. Vintage-style '69 reissues generally adjust at the heel, so you may need to loosen the neck to get at it. Either way, make sure there's adjustment left.
• The f-hole edges and back seam. The top is thin around the f-hole and the back is a glued panel. Look for cracks running from the f-hole and any separation along the back's edge, especially on a guitar that has been dropped.
• Pickup originality. Swapping Wide Range-style pickups is common, and the covers make it hard to tell what's underneath. Ask, and check the pickup cavity photos if you can.
• Feedback at volume. The solid center helps a lot, but a Thinline is still more feedback-prone than a solid Tele at high gain and stage volume.

The three-bolt "Micro-Neck" plate on the same Classic Series '72 Thinline from our past inventory.

That '72 reissue is a good example of what a solid used one looks like. It had a few bumps and finish marks, mostly in the thick clear coat around the body edges and back. The neck and frets were in excellent shape, the electronics tested perfectly, intonation was spot-on and the pickups were original. Honest cosmetic wear on a Thinline doesn't worry me. A crack at the f-hole or a neck that's out of adjustment would.

My take

If you already own a solid Tele, the '72 is the more interesting second guitar, because it does something a regular Tele can't. If you want one Tele that's a little lighter and a little sweeter, get the '69. And if you're buying a '72 for the Wide Range sound, find out which pickups it has before you pay a premium. Thinlines don't come through here every week, so keep an eye on our guitars in stock.

FAQ

Is a Thinline Telecaster semi-hollow or hollow?

Semi-hollow. The wings are chambered, but the center of the body, where the pickups and bridge mount, stays solid wood.

What's the difference between the '69 and '72 Thinline?

The '69 uses two Tele single coils, the standard Tele bridge and a four-bolt neck. The '72 uses two Wide Range humbuckers, a six-saddle hardtail bridge and a three-bolt Micro-Tilt neck with a headstock-adjust truss rod.

Do Mexican '72 Thinlines have real Wide Range pickups?

Not in the original CuNiFe sense, as far as we've been able to confirm. Pre-2020 reissues generally used standard humbucker construction under Wide Range-style covers. Fender reintroduced CuNiFe Wide Ranges around 2020.

Does a Thinline feed back?

Less than an ES-335 or a hollowbody, thanks to the solid center, but more than a solid Telecaster at high gain and volume.
