Single-Action vs. Dual-Action Truss Rods: What the Difference Actually Means

Here's the short answer, because most players don't need the long one: a single-action truss rod pushes the neck in one direction, and a dual-action rod pushes it in both. For a normal setup that difference is invisible. It only matters at the extremes — and one of those is exactly the kind of neck that lands on my bench and won't cooperate.

The difference in one breath

A truss rod is a steel rod running down the inside of the neck. Its whole job is to fight the roughly 100-plus pounds of pull your strings put on the neck and keep it at the right amount of bow.

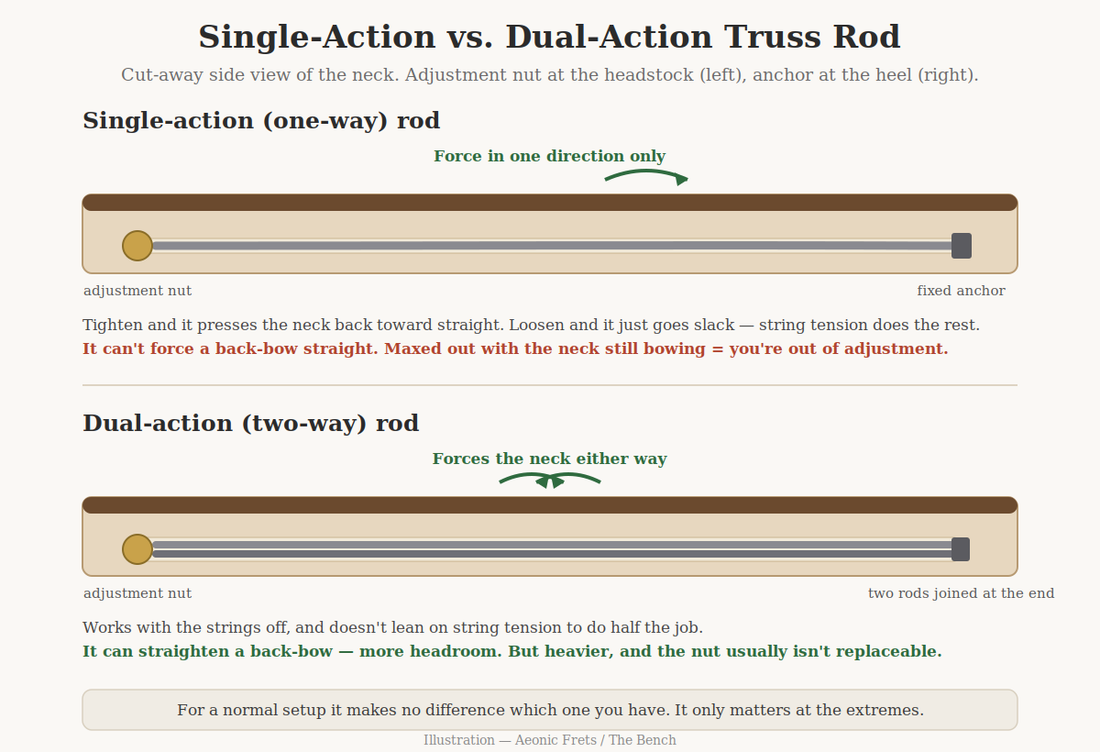

• Single-action (one-way): Tighten it and it presses the neck back toward straight. Loosen it and it simply relaxes — it doesn't push the other way. The strings do that part.
• Dual-action (two-way): Tighten it and it forces the neck one way; loosen past neutral and it forces the neck the other way. It can bend the neck by itself, even with the strings off.

First, the three shapes a neck can take

To see why the direction of force matters, you have to picture what a neck actually does. There are only three states worth naming:

• Up-bow (too much relief): the neck bows away from the strings, dipping in the middle. Action gets high and the guitar feels stiff. The fix is to tighten the rod.
• Straight, with a hair of relief: a tiny bit of forward bow. This is where most guitars want to live.
• Back-bow (a hump): the neck humps toward the strings. Now the middle frets choke out and buzz. The fix is to loosen the rod and let it come forward.

Keep that back-bow picture in your head, because it's the whole reason single-action and dual-action rods behave differently.

Single-action rods and their one blind spot

The single-action rod is the original design and still the most common one out there. It's anchored at one end — usually the heel — with the adjustment nut up by the headstock (on many vintage Fenders the nut is at the heel instead, which is why you sometimes have to loosen the neck to reach it). Tighten the nut and the rod bows, pressing the neck backward and straightening an up-bow. Simple, light, and it's been doing the job on Fenders, Gibsons and countless imports for decades.

Here's the blind spot: a single-action rod can't create a back-bow. It can pull a forward-bowed neck back toward straight, but it can't push a neck that's already humped the other way. Loosening it doesn't force anything — it just goes slack and hands the job back to the strings. Ninety-five percent of the time that's fine, because string tension naturally pulls a neck forward and the rod's job is to resist that.

Where it bites you is at the edges. If the rod is cranked all the way tight and the neck still has an up-bow, you're out of road. And if a neck develops a back-bow on its own — it happens, especially with humidity swings or a rod that was over-tightened years ago — a single-action rod can't pull it out. That becomes a heat-press or fretwork job, not a screwdriver job.

Dual-action rods: more headroom, a little more weight

A dual-action rod — you'll also see it called two-way or double-expanding — is really two rods working against each other, or one rod threaded to push both ways. Because of that, it can force the neck in either direction on its own. It'll pull an up-bow back and push a back-bow forward, and it'll do it with the strings off, because it isn't relying on string tension to do half the work.

Fender's Bi-Flex rod, introduced in the early 1980s and found on a lot of their American models since, is a two-way system — despite the single rod, it corrects the neck in both directions. Plenty of modern builders lean on two-way rods too, from PRS to a lot of the better imports, because the extra adjustment range makes production setups more forgiving.

The tradeoffs are real but modest. A dual-action rod is heavier and takes a slightly bigger channel in the neck, and its adjustment nut is usually welded on — so if someone strips it, it's not the simple swap a single-action nut often is. You'll also hear people argue the extra steel changes the tone; in my experience that's marginal at most, and far down the list of things that actually shape a guitar's sound. I wouldn't buy or pass on a guitar over it.

How to tell which one you've got

Two ways, one reliable and one quick:

The reliable way: with the neck near straight, back the rod off (loosen) a bit past where it's snug. On a single-action rod it just gets loose and rattly and nothing happens — the neck only moves when the strings pull it. On a dual-action rod, keep going past neutral and you'll feel it start to actively push the neck into a back-bow. That active push in the loosening direction is the tell.

The quick way: the spec sheet or the maker. As a rough rule, traditional and vintage-style instruments — older Fenders, most classic Gibsons — run single-action rods, while a lot of modern guitars use two-way rods. It's only a rough rule, so don't bet a repair bill on it.

For day-to-day setups the turning directions are the same either way: tighten to reduce relief, loosen to add it, a small fraction of a turn at a time. The rod type only matters once you've hit the end of the adjustment or you're chasing a back-bow.

Why this matters when you're buying used

This is where a shop tech pays attention. When I look at a used guitar, the truss rod is part of the inspection — not because the type is a dealbreaker, but because a neck that's out of adjustment is a very different negotiation than one that just needs a setup. A guitar with a back-bow and a single-action rod can't be dialed straight by turning the nut; that's heat and time, or a fret level, or both — real money. A maxed-tight single-action rod with the neck still bowing forward is the same story: out of room. A two-way rod usually gives you more buffer before you hit that wall.

None of that means "only buy guitars with dual-action rods." Most single-action necks are perfectly happy and will be for another fifty years. It just changes how worried you should be about a neck that's already misbehaving. If you're sizing one up, our guides on how to check the neck on a used guitar, how much relief a neck should have, and whether a maxed-out truss rod is a dealbreaker walk through what I look at — and the guitars in stock have already been through the bench.

The honest take

Single-action versus dual-action is one of those specs the internet makes bigger than it is. For most players and most guitars it changes nothing you'll ever feel — a well-made single-action neck is what's inside most of the great guitars ever built. It earns your attention only at the edge case: a neck out of adjustment, a back-bow that needs pushing out, or a used guitar you're sizing up before you hand over the cash. Know what the rod can and can't do, check the neck before you buy, and one will never surprise you.

FAQ

Is a dual-action truss rod better than a single-action one?

Not better — just more adjustable. A two-way rod can push the neck in both directions and gives a wider adjustment range, which is handy at the extremes. A single-action rod is simpler, lighter, and completely adequate for the way most necks behave. Neither one makes a guitar sound or play better on its own.

Which way do I turn the truss rod to add relief?

Loosen it to add relief (more forward bow), tighten it to reduce relief (straighter). That's true for both rod types. Go in small increments — an eighth of a turn, then re-check — and if the nut feels stuck or gritty, stop and have someone look at it rather than forcing it.

Can I tell the rod type just from the brand?

Only roughly. Vintage-style Fenders and most traditional Gibsons use single-action rods; many modern guitars use two-way rods, and Fender's Bi-Flex has been around since the early '80s. Treat brand and era as a hint, not a guarantee — the only sure way is to check the rod itself.

My truss rod is maxed out. Is the guitar junk?

Not necessarily. Sometimes there's another fix — a fret level, a different string gauge, or addressing whatever pushed the neck out of shape. A maxed single-action rod has less room to work with than a two-way rod, but "maxed out" is a reason to look closer, not to automatically walk away. We break down that exact call in whether a maxed-out truss rod is a dealbreaker.
