Should You Solder Your Own Guitar Electronics? A Bench Take

Short answer: yes, you can solder your own guitar electronics, and a first job on a cheap guitar is a fine way to learn. But I'd think twice before doing your first job on a guitar you can't replace, and I'd never skip the one step most beginners skip: scuffing the back of the pot.

The guitar wiring is simple. A Les Paul has four pots, a switch, a jack, and two pickups. The skill that trips people up is not the diagram. It is getting solder to stick to a big chunk of metal that soaks up heat. Here is how I'd approach it, where players genuinely disagree, and when I'd hand it to a tech.

Why a "simple" wiring job goes wrong

A pot casing is a heat sink. Touch a small iron to it and the casing pulls the heat away faster than the iron can supply it. The solder balls up, looks attached, and isn't. That is a cold joint, and it is the number one reason a freshly rewired guitar hums, crackles, or loses a ground connection a month later.

If you have ever dealt with crackly volume and tone knobs, the cause is sometimes a worn pot, but a bad ground joint inside the cavity is a common culprit too.

What you need (and where players disagree)

An iron you can control. This is where the forums split. Plenty of players report good results with a 30 to 45 watt iron, as long as the tip stays hot and is clean. Others insist on 60 watts or more for the pot casing, especially with a chisel tip that transfers heat to a large flat surface. My honest take: the wattage matters less than whether the tip is in good shape and big enough to heat the casing quickly. A worn or pointy tip is a frequent reason joints fail. If you only buy one upgrade, buy a decent adjustable iron with a chisel tip.

Rosin-core solder. Electronics solder, not plumbing solder with acid flux. Some players add a dab of flux, which helps solder flow on stubborn casings.

Fine sandpaper or a small file. This is the step that matters most. Scuff the spot on the back of the pot until it is bright and shiny, then wipe it clean. Many pot casings have a coating or oxidation that solder will not wet. Skip this and you will fight it all day.

A cheap multimeter. Not to measure fancy things. Just to check continuity between the casing and your ground wire, because a cold joint can look fine and read open.

The sequence I'd follow

1. Photograph the cavity before you touch anything. Every wire, every pot, every switch lug. This is your undo button.
2. Replace or rewire one control at a time so you always have a reference.
3. Tin the wire and the scuffed spot separately, then bring them together with a touch of heat. You want a small, shiny, slightly domed joint.
4. Be quick. Hold a hot iron on a pot casing too long and you can damage the pot's internals. A solid chisel tip, a scuffed surface, and a few confident seconds beat a long, timid dwell.
5. Tug the wire gently and check continuity before you close the cavity.
6. Plug in and test every switch position before you screw the cover back on.

If a casing refuses to take solder at all, some players solder a ground lug under the pot instead and ground to that. It is a sensible workaround, not a failure.

Where I'd stop and hand it to a tech

Soldering your own wiring is not the same as every guitar being a good first project. I'd pause on a few things:

• A valuable vintage or collectible guitar. Original pots, caps, and wiring carry value, and a clumsy repair can cost more than the tech would have charged. I cover this in more depth in my piece on which mods hurt resale value.
• Tight cavities with shielding and braided wire. Some players report that heavy braided shielded wire needs more heat to tin, which is where the higher wattage argument comes from.
• Anything involving a pickup's own leads. A pickup's thin lead wires are more delicate than hookup wire, and rough heat can melt insulation or break a connection near the coil.

Rewiring also leaves evidence. A buyer who opens the cavity will see fresh solder and new parts, and I wrote about how to tell if a used guitar's electronics have been replaced for exactly that reason. Clean work is a plus. Messy work reads like a warning.

My honest take

Learn on something inexpensive, not on a guitar you love. Buy a cheap pot and a scrap of wire first and solder them on the bench. Do five joints on a spare pot casing: scuff it, tin it, tug it, meter it. Once those come out shiny and solid every time, you are ready for a real guitar, and the in-stock collection is a good place to look for a used player to practice on.

If you are weighing whether to keep or sell a modded guitar, our Cash Offer page is the place to start. Just be upfront about what has been changed.

FAQ

Can I damage a guitar by soldering the pots myself?

Yes, mostly by overheating a pot or a pickup lead, or by leaving a cold joint that causes hum or dropouts. Most of those mistakes are fixable if you catch them, which is why you photograph the wiring first and test before closing the cavity.

What wattage soldering iron is best for guitar pots?

Players disagree. Many get good results with 30 to 45 watts and a clean tip, while others prefer 60 watts or more. A well-maintained chisel tip matters as much as the number on the box.

Why won't solder stick to my pot?

Usually the casing is coated, oxidized, or just not hot enough. Scuff the spot until it is bright, clean it, add a little flux, and tin it before you attach the wire. If it still will not take solder, use a ground lug.

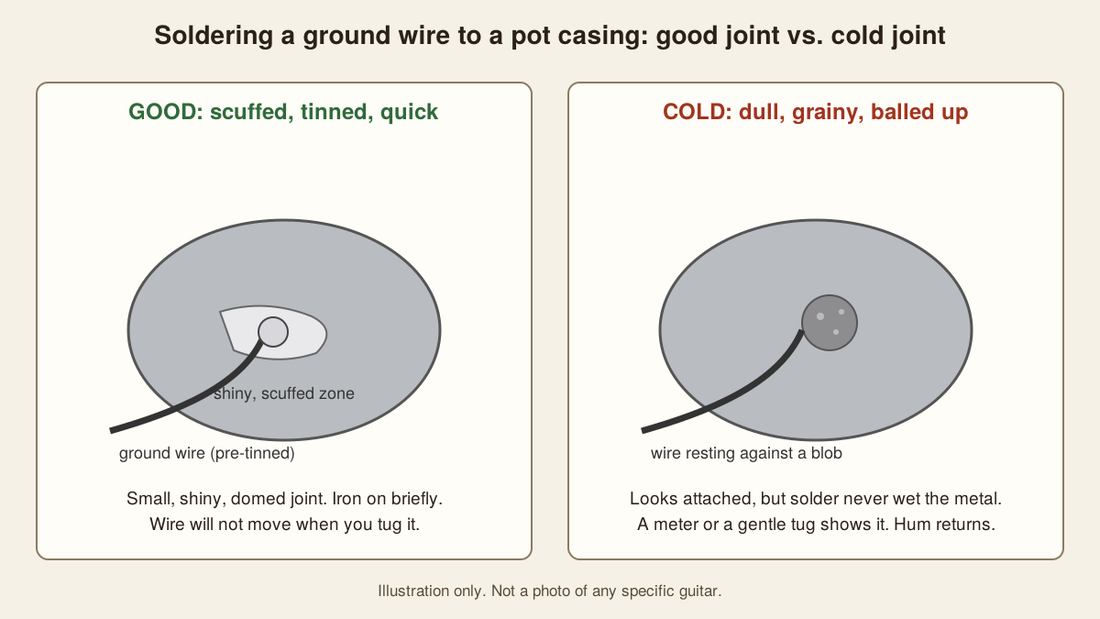

How do I know if I made a cold solder joint?

It often looks dull, grainy, or balled up instead of smooth and shiny, and the wire may move when you tug it. A multimeter continuity check between the wire and the casing is the sure test.
