Are P-90s Just Fat Single Coils?

Short version: yes and no — and the “no” is the part that trips people up. A P-90 is a single-coil pickup, full stop. One coil of wire, and like every single coil it hums when you get near a light dimmer or a computer monitor. So calling a P-90 a “single coil” is completely fair. But if you’re picturing a P-90 and a Strat pickup as the same animal in a different jacket, you’re in for a surprise the first time you plug one in. They’re built differently, and that shows up in the sound in a way you can hear across the room.

I get this one on the bench constantly — usually from somebody who loves their Strat, played a Les Paul Junior at a friend’s place, and wants to know why it sounded “fatter” even though “it’s still a single coil, right?” Here’s what’s actually going on.

The short answer

A P-90 is a single coil. It hums like one. But it’s wound and magnetized so differently from a Fender-style pickup that it lands in its own tonal zip code — thicker, punchier, more midrange, and hotter. If you want Strat sparkle and quack, a P-90 won’t give it to you. If you want a single coil with more grunt and grind, that’s exactly what it does.

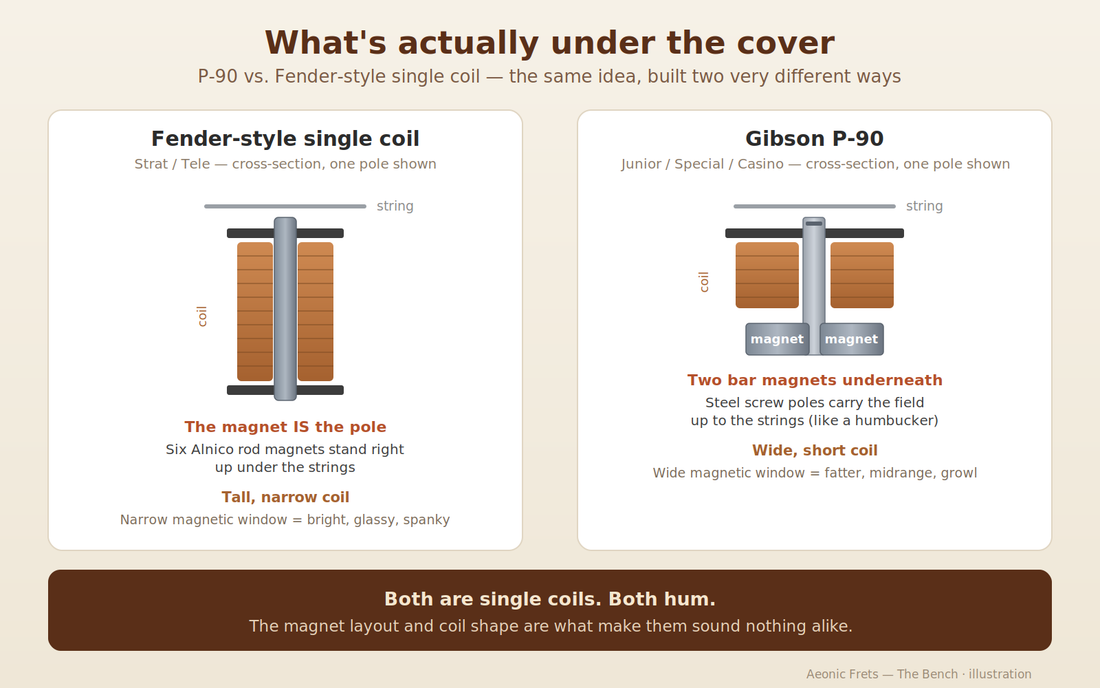

What’s actually different under the cover

Two things separate a P-90 from a Strat or Tele pickup, and both come down to how the magnets and the coil are arranged.

First, the magnets. On a Fender-style single coil, the six pole pieces you see poking through the cover are the magnets — six alnico rod magnets stood straight up, one per string, with the coil wound right around them. A P-90 does it the other way around: the pole pieces are plain steel screws, and the actual magnets are two flat bar magnets lying down underneath the coil, feeding their field up through those screws. If that sounds familiar, it should — it’s the same basic layout Gibson later used in the humbucker. Gibson has been building P-90s this way since 1946, originally with alnico 3 magnets and later the stronger alnico 5.

Second, the coil shape. A Strat coil is tall and narrow — a skinny bobbin wound up high. A P-90 coil is the opposite: short and wide, a squat bobbin that spreads out to the sides. That wider coil, sitting over those two bar magnets, throws a wider magnetic field and “sees” a broader slice of the vibrating string. Reading a wider chunk of string is a big part of why P-90s come across fatter and warmer, with more low-mids, where a narrow Strat coil reads a tighter window and sounds brighter and more focused.

So what does that do to the sound?

In plain terms: a P-90 is thicker, grittier, and louder than a vintage-style Strat pickup. There’s a midrange honk and a little hair on the note even through a clean amp. Roll into some gain and a P-90 growls — it’s the classic punk, garage, and dirty-blues sound for a reason.

A Strat single coil, by comparison, is glassier. You get that bell-like top end, the spanky attack, and the hollow “quack” in positions 2 and 4. It cleans up beautifully and stays articulate when you dig in. Neither is better — they’re different tools. I’ve had plenty of players trade a P-90 guitar because they missed their Strat chime, and just as many go the other way because single coils felt too thin for the band they were in.

Output: the P-90 hits harder

Part of that “fatter” impression is simply volume. A typical P-90 reads somewhere around 8k ohms of DC resistance; a vintage-spec Strat pickup is often closer to 6k. Those are ballpark numbers — it varies by model and year — but the direction is consistent: the P-90 has more output. More output means it pushes the front of your amp harder and breaks up sooner. That’s why a Junior with one P-90 can sound like more guitar than its price tag suggests. It’s driving the amp, not just tickling it.

Yes, they both still hum

Here’s the part people forget: because a P-90 is a single coil, it hums exactly the way a Strat does. Sixty-cycle hum doesn’t care which brand is on the headstock. If anything, a hotter P-90 with more wire on the bobbin can make that hum a touch more noticeable. Neither pickup is a humbucker, and no amount of “but it’s a Gibson” changes the physics. If hum genuinely drives you up the wall, that’s a humbucker conversation — or a stacked/noiseless pickup — not a P-90-versus-Strat one.

On the bench: which one do you actually want?

Skip the forum arguments and think about the music. Want spanky cleans, funk, country twang, surf, or that in-between quack? Single coils — a Stratocaster or a Tele. Want fat, midrange-forward single-coil tone that rocks, breaks up early, and cuts through a loud room? A P-90 guitar — a Les Paul Junior or Special, an SG Junior, or an Epiphone Casino.

A couple of setup notes from the bench. P-90s are sensitive to height — because the field is wide, getting the pickup too close to the strings muddies things up and can pull the notes sharp or sour, so setting it a hair lower than you would a humbucker usually pays off. And those steel screw poles are adjustable, so if one string jumps out or lags behind, you can balance it right there without touching anything else.

If you want to hear the two camps back to back, that’s the best way to settle it — we usually have both on the wall in our in-stock guitars. Plug a P-90 Junior and a Strat into the same amp and the difference stops being a spec sheet and starts being obvious.

FAQ

Are P-90s humbuckers?

No. A P-90 has a single coil of wire, so it hums like any single coil. It’s built differently from a Strat pickup — bar magnets under the coil instead of rod magnets through it — but it is not a hum-canceling humbucker.

Do P-90s hum more than Strat pickups?

About the same in principle, since both are single coils. A hotter P-90 can make the hum a little more audible, but the cause and the cure are identical to any single coil: position yourself away from noise sources, or move to a hum-canceling pickup.

Can I drop a P-90 into my Strat?

Not directly. A traditional soapbar or dog-ear P-90 is a different size and shape than a Strat pickup, so it won’t just fall into the rout. There are single-coil-sized P-90s built to fit a Strat pickup slot if you want that flavor without routing the body.

Are P-90s good for high gain?

They’ll handle rock and even heavier just fine, and they push more output than a Strat pickup. At very high gain they’re noisier and more prone to squeal than a humbucker, so they reward a clean setup and a noise-conscious rig — but plenty of heavy players love exactly that raw edge.
