Why Do Gibson Headstocks Break So Easily (and Fender's Don't)?

Short answer: it is not bad luck, and it is not Gibson being careless. It is three ordinary design decisions stacking up in the same square inch of wood — a steep headstock angle, grain running the wrong way across that angle, and a truss rod cavity routed right into the middle of it. Fender guitars mostly avoid it because their headstocks lie flat, so none of those three things apply.

I have had a lot of broken and repaired headstocks across the bench, and the pattern is boring once you see it. Same place, same angle, same handful of everyday accidents. Here is what is actually going on, and what genuinely reduces your risk.

The three things that stack up

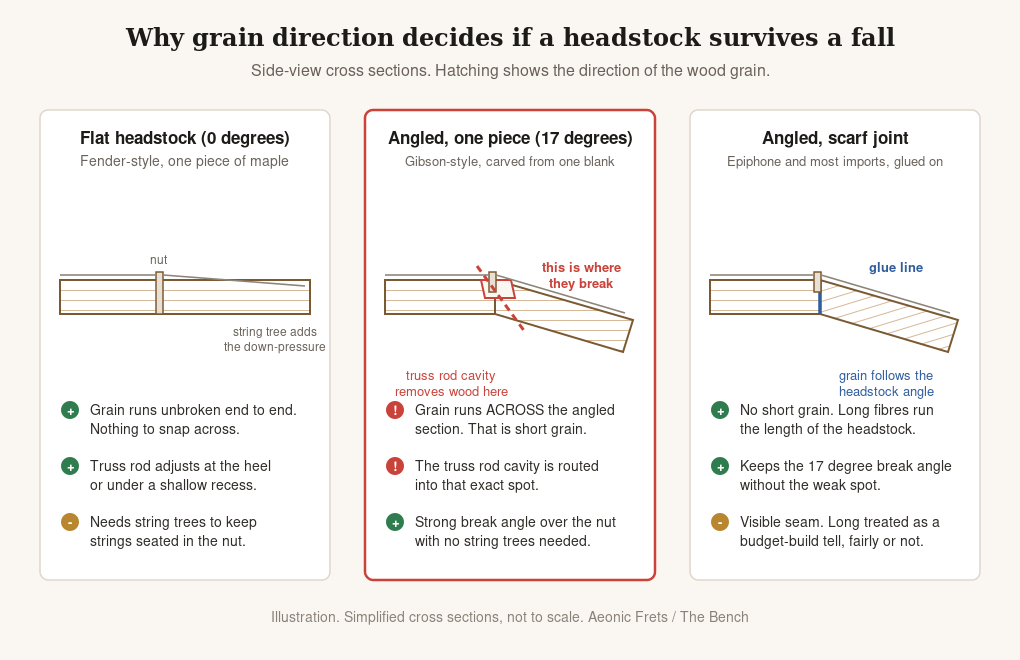

Illustration: simplified side-view cross sections showing how grain direction differs between a flat headstock, a one-piece angled headstock, and a scarf joint.

1. The angle

Gibson settled on a roughly 17-degree headstock angle by the late 1920s and has used it for most of its history. There was a period beginning in the mid-1960s where the angle was reduced to 14 degrees, and it went back to around 17 degrees by the late 1980s. Exact changeover years vary by model and by which source you read, so treat specific dates with a little caution.

The angle exists for a good reason: it pulls the strings down hard into the nut slots without needing string trees, which is why a Les Paul has a clean headstock and a Stratocaster does not. Gibson has long argued the extra string pressure also helps sustain. That part is debated and hard to measure. The nut-seating benefit is not debatable at all.

2. Short grain

This is the one that actually matters, and it is the part most players have never had explained to them.

A traditional Gibson neck is carved from a single blank of mahogany with the grain running lengthwise down the neck. When you tilt the headstock back 17 degrees out of that same blank, the grain does not tilt with it. The wood fibres now run across the angled section rather than along it. That is short grain, and short grain is weak in exactly the direction a falling guitar loads it.

Think of splitting firewood: with the grain it goes in one swing, across the grain it barely marks. The transition behind a Gibson nut is the across-the-grain case.

A scarf joint fixes this. You cut the headstock from a separate piece and glue it on at the angle, so the fibres run the length of the headstock instead of across it. Most Epiphones and most imported set-neck guitars are built this way. The glue joint itself is not the weak point — a well-made joint in a good wood glue is generally stronger than the wood around it. The seam is just visible, which is why a scarf joint got labelled a budget-build tell. On the strength question, that reputation has it backwards.

3. The truss rod cavity

Then, into that already-compromised short-grain zone, the truss rod adjustment cavity gets routed. It is a meaningful scoop of wood removed from the exact spot that was already the weakest. That is the whole story: thin section, wrong grain direction, steep angle, all in one place.

The volute: the fix Gibson had and then dropped

Diagram: a volute adds material to the back of the neck behind the truss rod cavity, thickening the section where the load concentrates.

A volute is that small carved lump on the back of the neck where it meets the headstock. It is not decoration. It adds material back behind the truss rod cavity, thickening the thinnest section and spreading the stress over a larger area.

Gibson used volutes during the Norlin years of the 1970s, often paired with three-piece maple necks. Repair people who have been at this a long time consistently report that those necks rarely come in broken, and my own experience lines up with that. It is a widely shared observation rather than a controlled study, so I would not call it proven — but the mechanism is sound and the agreement is unusually strong.

Gibson then dropped the volute. Players did not like the feel of it under the hand, did not like the look, and it was one more machining operation. That is the honest reason it went away: a cosmetic preference beat a structural one. If you want my actual opinion — the volute was right and the market was wrong. It is one of the few cases in guitar building where a genuine engineering improvement lost a popularity contest.

Worth noting: the Norlin era gets a bad reputation for other reasons, some deserved and some not. I have written separately about whether Norlin-era Gibsons are actually bad.

So how do they actually break?

Not while playing. Not from string tension. In practice it is almost always one of these:

• Falling over from a stand, or leaned against an amp. This is the big one by a wide margin. A guitar tipping over lands headstock-first with the whole body weight behind it.
• The case. Dropped cases, and cases where the guitar was not seated properly so the headstock was unsupported. A case protects the headstock only if the neck is actually resting in the neck block.
• Strap failure. Strap button lets go, guitar swings down, headstock catches the floor or a mic stand.
• Shipping. Poorly packed guitars in a box with no headstock support. This is why proper packing matters so much — I go into it in whether you should loosen the strings when shipping or storing a guitar.

Cold makes all of it worse. A guitar that has been in a cold car is more brittle, and a knock it would have shrugged off in a warm room can crack it. Let it warm up in the closed case before you open it.

What actually reduces your risk

Nothing here is exotic. It is just the stuff that works:

• Do not use a guitar stand for storage. Stands are for gigs and sessions. Between sessions, use a wall hanger or the case. Most headstock breaks I see started with a stand.
• Seat it properly in the case. Every single time. Take the two seconds.
• Check your strap buttons. Screws back out over years. Locking strap buttons are cheap insurance and one of the few accessories I recommend without reservation.
• Warm up before you play in winter. Case closed, half an hour, then open it.
• Do not panic about string tension. String tension is not what breaks headstocks. Impact is.

My honest take on buying one anyway

None of this should scare you off a Gibson. I sell a lot of them and I play them. The vast majority of Les Pauls and SGs ever built have never broken a headstock, and the ones that did got dropped. This design trades a bit of impact resistance for a clean headstock and excellent nut seating — a perfectly defensible trade.

What it should change is how you handle the instrument and how you shop. On a used Gibson the headstock area deserves real scrutiny, because under-finish cracks and old repairs can be subtle; I walk through what I look for in how to spot a repaired headstock on a used Gibson. And if you find one that has been repaired, it is not automatically a no — it is a price conversation, which I cover in should you buy a guitar with a repaired headstock.

Everything currently on the bench and ready to go is in the guitars in stock collection, and every one of them gets the headstock checked before it gets listed.

FAQ

Is a repaired headstock stronger than the original?

Sometimes, and it is more debated than the internet suggests. A well-executed glue joint is typically stronger than the surrounding wood, and a repair with added splines or a back strap can genuinely end up stronger than factory. But a plain glue-and-clamp repair on a bad break, with no reinforcement, is not automatically an upgrade — repaired headstocks do sometimes break again. It depends entirely on the break and the quality of the work, so judge the specific repair rather than the category.

Do all Gibsons have this problem?

All the ones with a one-piece angled neck and no volute share the same geometry, which is most Les Pauls and SGs. Models with volutes, with multi-piece necks, or with scarf joints are meaningfully more robust. An SG is a little more exposed in practice than a Les Paul, simply because it is neck-heavy on a strap and tips forward more readily.

Why does Fender not have this problem?

A Fender headstock is flat and in the same plane as the neck, cut from one piece of maple with the grain running unbroken from end to end. There is no short-grain transition to snap across. The tradeoff is that Fender needs string trees to pull the strings down into the nut, which introduces its own small friction and tuning-stability quirks.
