What Gibson Humbucker Is in Your Les Paul? '57 Classic vs Burstbucker vs 490/498

Here's the short version, because it's usually the real question behind the question: if you're looking at a used Les Paul and wondering what the pickups are — and whether they're any good — almost every modern Gibson leaves the factory with one of four humbucker families. The '57 Classic, the Alnico 2 Burstbuckers (1, 2 and 3), the Alnico 5 Burstbuckers (the '60s/61 and the Pro), or the 490R/498T set that lives in most Studios. They're all 'PAF-style' humbuckers, but they are not interchangeable, and the differences are real enough to hear on a clean amp before you ever touch a pedal.

The bigger point I make to every buyer who asks: don't trust the model name to tell you what's in the guitar. Gibson has moved pickups around between the Standard, Traditional, Classic and Studio lines almost every couple of years, and used guitars get pickups swapped all the time. What follows is how to actually read the differences — and how to confirm what's really under the covers before you pay.

The one spec that actually separates them: the magnet

Forget wire and turns counts for a second. On these pickups, the thing your ears latch onto first is the magnet. Gibson uses two:

Alnico 2 is the softer, warmer magnet. It pulls on the strings a little more gently, which tends to give you rounder highs, a slightly looser low end, and that 'vintage' feel where the note blooms instead of snapping at you. Alnico 5 is stronger. It grabs the string harder, so you get more output, a tighter and more focused low end, and a brighter, more aggressive top. Neither is better — they're just different jobs.

Two more things matter. Potting (dunking the finished coil in wax) kills microphonic squeal. Potted pickups are gig- and high-gain-proof; unpotted ones have a bit more air and 'aliveness' but can squeal at cranked volume. And coil matching: a 'matched' set has two evenly wound coils, which cancels hum a hair better and sounds even; a 'mismatched' set winds the two coils slightly differently on purpose, mimicking the sloppy hand-wound originals from the '50s, which opens up the top end and adds a little grit.

'57 Classic — the smooth default

The '57 Classic is Gibson's long-running 'vintage PAF' humbucker, and for years it was the default in higher-end Les Pauls and a lot of Traditionals. It runs an Alnico 2 magnet, reads around 8k ohms, is wax potted, and uses matched coils. The result is exactly what you'd expect: smooth, even, forgiving, never harsh. There's a hotter bridge variant, the '57 Classic Plus, wound a touch higher (roughly 8.3k) for more punch. If you want the 'just plug in and it sounds like a Les Paul' experience, this is it. The only knock is that some players find it a little polite — it doesn't have the raw edge the Burstbuckers do.

The Burstbuckers — the 'vintage-correct' family

This is where people get confused, because 'Burstbucker' covers several different pickups with genuinely different voices. All of them use mismatched coils for that hand-wound rawness, but the magnet and the potting change the character completely:

Burstbucker 1 & 2 (Alnico 2, unpotted): the classic pairing. The 1 is slightly underwound (~7.5k) and usually sits in the neck; the 2 is a touch hotter (~8.3k) for the bridge. Because they're Alnico 2 and unpotted, they're airier and more 'open' than a '57 Classic — more of the raw PAF thing. There's also a hotter Burstbucker 3 for bridge use. You'll find the 1&2 set in a lot of Standard '50s and Traditional-style guitars.

Burstbucker 61 / '60s Burstbucker (Alnico 5, unpotted): same mismatched-coil DNA, but the stronger Alnico 5 magnet pushes it brighter, snappier and more aggressive — a '61-flavored voice rather than a '59 one. This is the set in the Standard '60s.

Burstbucker Pro (Alnico 5, potted): the modern, gig-ready Burstbucker. Alnico 5, wax potted, roughly 7.8k neck and 8.3k bridge. It's hotter and tighter than the others and won't squeal on a loud stage. This was the standard pickup in a lot of 2000s–2010s Standards.

490R / 498T — the workhorses

If the guitar is a Studio, an SG, or a lot of mid-tier Gibsons, odds are it wears the 490R/498T set, and this is the one pairing on the list that mixes magnets. The 490R neck pickup uses Alnico 2 (~8k) for warmth; the 498T bridge uses Alnico 5 and is wound noticeably hotter (Gibson lists it around 14k, and it measures in the low-to-mid 13k–14k range depending on the sample). That makes the 498T the most 'modern rock' pickup here — punchy, hot, a bit of extra upper-midrange bite for gain. Plenty of players love the set; some swap the hot 498T for something more vintage. Either way, it's a perfectly good, versatile factory pickup, not a downgrade to be scared of.

So which one is 'best'?

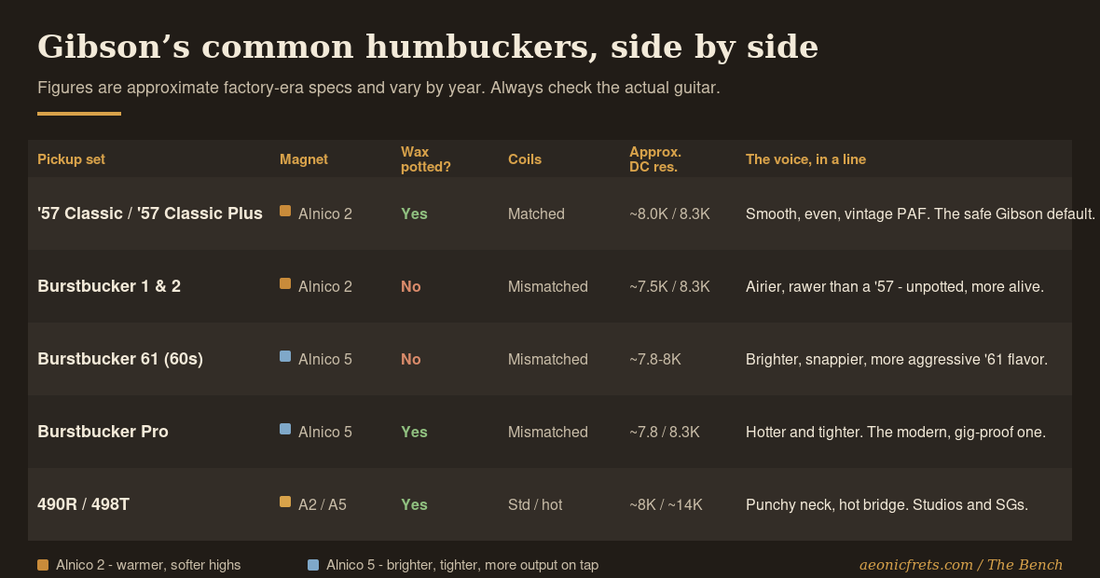

Wrong question, honestly. They're all good pickups — the right one depends on what you play. Want warm, smooth, forgiving? The '57 Classic. Want raw, open, vintage-PAF grit and you don't play at ear-bleeding gain? Burstbucker 1 & 2. Want brighter and more cutting? The '60s/61. Want something hot and tight that behaves on a loud stage? Burstbucker Pro or the 498T. Here's roughly how they stack up:

How to tell what's actually in a used guitar

This is the part that saves you money. The listing says 'Burstbucker Pro' — fine, but has anything been changed? A few things I check on the bench:

Count the conductors. Pull the control cover (or ask the seller for a photo of it). Older '57 Classics are typically 2-conductor (one braided lead). Many modern Burstbuckers and the 490/498 set are 4-conductor, which is what allows coil-splitting. If the guitar advertises a coil-split but the pickup only has two wires, someone's story doesn't add up.

Look for the stamp or sticker. Gibson pickups often have a model stamp or a paper label on the baseplate. If the covers are off, the winding direction and lead color usually match the spec too. If a 'vintage' guitar has suspiciously fresh solder joints at the pots, the pickups may have been out.

Trust your ears over the spec sheet. Swapped pickups are one of the most common used-guitar surprises, and they're not necessarily bad — a well-chosen aftermarket set can be an upgrade. Just make sure you're paying for what's actually in there, not what the box said in 2012. If you're buying from us, that's exactly the kind of thing we confirm before a guitar goes up; you can see what's currently in stock here.

Should you swap them?

My honest take: most stock Gibson humbuckers are better than the internet gives them credit for, and a lot of 'this pickup is bad' complaints are really a pickup-height or amp problem in disguise. Before you spend $200 on a new set, raise or lower the ones you have a couple of turns — it's free and it changes the voice more than most people expect. If after that the guitar still isn't talking to you, then swap. A '57 Classic set in a hot-bridge guitar, or a lower-output set in place of a 498T, are two of the most common and most satisfying changes. Just keep the originals in a bag; on a used Gibson, the factory pickups help resale.

FAQ

Are Burstbuckers better than '57 Classics? Not better, just rawer. Burstbuckers use mismatched coils for a more open, hand-wound character; '57 Classics are matched and smoother. Pick the voice, not the reputation.

What pickups came in my Les Paul Studio? Most Studios ship with the 490R (neck) and 498T (bridge). The 498T is the hot one. Newer Studios occasionally vary, so confirm by looking at the actual pickups.

Is the 498T a bad pickup? No. It's hot and bright by design, which suits rock and higher gain. If you want something more vintage in the bridge it's an easy swap, but plenty of players leave it alone.

Does unpotted mean the pickup will squeal? Only at high volume and high gain. At normal levels the Alnico 2 Burstbuckers and the '60s Burstbucker are perfectly usable — the trade-off is a little extra air and touch-sensitivity for a small squeal risk when you really crank it.
