Strings Popping Off Your Tune-o-matic? Blank Saddles, Bad Slots, and How to Notch Them Right

If a string keeps hopping out of its saddle when you dig in, or your string spacing looks slightly off over the pickups, the Tune-o-matic saddles are the first thing I'd look at. Nine times out of ten the cause is one of three things: the saddles were never slotted, the slots are worn or badly cut, or the string simply isn't pressing down hard enough because the tailpiece is jacked up. All three are cheap to fix. The only expensive mistake is cutting too deep.

Are Tune-o-matic saddles supposed to be notched?

Yes. A saddle slot does three jobs: it holds string spacing, it helps set each string's height to match the fingerboard radius, and it keeps the string from sliding sideways. StewMac's own reference on the subject says it plainly: new Tune-o-matic saddles arrive unslotted, and a lot of people are surprised by that when they buy a replacement bridge.

That's the most common way a blank saddle ends up on a guitar. Someone upgrades to an aftermarket bridge, swaps in brass or titanium saddles, or replaces one saddle that was rattling, and nobody cuts the new ones. Then one day the G or high E walks off mid-bend.

Worn slots do the same thing more slowly. Years of string changes and vibrato can flatten a slot until it barely locates the string. Old slots also go the other way: they get too deep, or pick up a burr, and start eating strings.

The symptoms, and what they point to

• A string pops out of its saddle on hard picking or wide bends. Usually a blank or shallow slot, often made worse by a shallow break angle (more on that below).
• Uneven spacing. Look down at the bridge pickup. If one string sits noticeably off its pole piece compared to its neighbors, it has probably wandered on an unslotted saddle.
• Strings keep breaking right at the saddle. Look for a sharp edge or a burr in the slot. Breaks at the saddle are almost always a slot problem, not bad luck with string brands.
• A faint sitar-like buzz or a "ping" while you tune. A slot that's too narrow or too deep can pinch the string. That ping can also come from the nut, so check both.

Why strings jump saddles: slots and break angle together

Forum threads on this split into two camps. One says it's a slot problem: cut a proper slot and the string stays home. The other says it's break angle: the stopbar is cranked so high that the string runs almost flat over the saddle and barely presses on it. In my view both are partly right, and in practice it's usually both at once.

A string that crosses the saddle at a decent angle presses down into its slot. A string that runs nearly flat sits on top of it. Give that flat-running string a blank saddle and a heavy right hand and it's going to move. Fixing either one often helps. Fixing both usually ends it.

One caution here. If you top-wrap your strings over the stopbar, you're deliberately reducing that break angle. That's a legitimate choice for feel, and we get into the tradeoffs in Top-Wrapping vs. Raising the Stopbar. But if you top-wrap and have strings jumping saddles, you already know one likely cause.

How a proper slot gets cut

A careful player can do this at home. The one rule that matters most: stop early. A shallow slot can always go deeper. A slot cut too deep means a new saddle.

1. Mark the positions with the strings on. Set the spacing by eye so each string sits over its pole piece and the outer strings have even margins to the fingerboard edge. Many techs tap each string lightly with a small brass or plastic hammer to leave a witness mark. For wound strings, scribing the position with a sharp blade works better.
2. Slack the string and move it aside. Keep the rest at pitch if you can, so you can recheck spacing as you go.
3. File to the string's size. Gauged nut files are the right tool because they leave a rounded bottom that fits the string. A small triangular needle file works in a pinch but cuts a V, and a V is exactly the shape that pinches. Follow the string's path, angling slightly down toward the tailpiece so the string leaves the front edge cleanly.
4. Go shallow. StewMac's guideline is that about half of each wound string should sit above the top of the saddle. Plenty of techs go shallower than that on the plain strings. The slot only has to hold the string in place. It doesn't need to bury it.
5. Deburr and polish. Run a fine abrasive or a piece of string through the slot. A sharp edge here is what snaps high E strings.
6. Restring, retune, recheck. Check the spacing again over the pickups, then check string height across the radius. Deeper slots lower those strings, so you may need to bring the whole bridge up a touch.

Radius: why slot depth is also a height adjustment

Most Tune-o-matics are built to roughly a 12-inch radius, which matches a typical Gibson fingerboard. On a guitar with a flatter or compound-radius board, the bridge curve and the board curve won't agree perfectly. Slot depth is the only way to fine-tune individual string heights on a Tune-o-matic, so cut gradually and measure as you go. The Les Paul and SG Supremes with compound-radius ebony boards that have come across our bench are good examples of where this matters.

Saddle material changes how you should cut

• Titanium saddles, like the ones Gibson put on the 2018 Signature Player Plus above, are hard. Recutting them takes sharp files and patience, and mistakes don't get any easier to undo.
• Plastic saddles, like the Delrin saddles on the Epiphone Elitist '65 Casino that came through the shop, are the opposite: soft and easy to over-cut. Use very light strokes.
• Locking bridges, like the TonePros unit on the 2011 Les Paul Standard in Chicago Blue we had in, lock the bridge to its studs. That helps with rattles and keeps the bridge seated during string changes. It does nothing for a blank or worn slot.

When to leave it to a tech

If you have the original saddles on a vintage or Custom Shop guitar, don't learn on those. Buy a cheap replacement set and practice on it, or let a tech cut the slots. Original parts carry real value on those guitars, and a bad slot can't be undone.

The same goes if the bridge itself is sagging in the middle. No slot will fix a collapsed Tune-o-matic, because the radius is already gone.

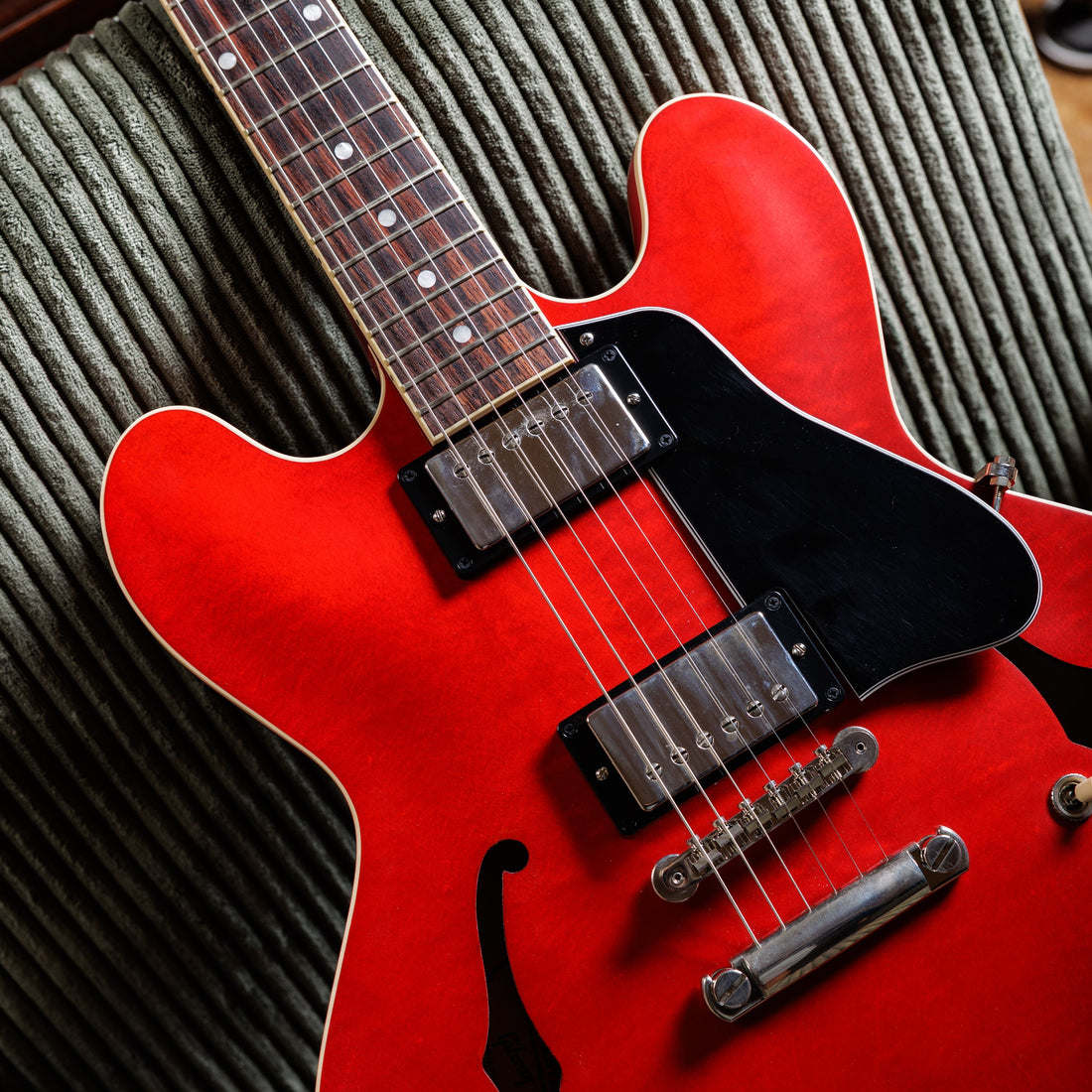

If you're shopping and want a guitar where this is already sorted, every listing in our in-stock collection includes my notes on setup and intonation. The 2022 ES-335 Satin pictured at the top passed that inspection with its intonation spot on.

FAQ

Do new Tune-o-matic bridges come with notched saddles?

Many replacement bridges and saddle sets ship blank, and StewMac's own reference notes that new Tune-o-matic saddles arrive unslotted. Check before you install one, and plan to cut or have cut the slots as part of the job.

How deep should a Tune-o-matic saddle slot be?

Shallow. The slot only has to hold the string's position. StewMac's guideline leaves about half of each wound string above the saddle top, and many techs cut plain strings even shallower. If it's too deep, the string binds and you'll need a new saddle.

Can I stop strings jumping saddles without cutting anything?

Sometimes. If the stopbar is jacked high or the strings are top-wrapped, lowering the tailpiece a little adds down-pressure and may be enough on its own. Just make sure the strings don't touch the back edge of the bridge. If the saddles are completely blank, you'll still want slots.
