P-90 Dog-Ear vs. Soapbar: Does the Cover Actually Change the Sound?

Here's the short version, and I'll stand behind it after having a couple hundred P-90 guitars on the bench: a dog-ear and a soapbar P-90 are the same pickup under the cover. Same coil, same bar magnets, same six adjustable pole screws. What changes is the cover, the baseplate, and how the pickup mounts to the guitar. The tonal difference people swear they hear is almost always coming from something else — usually how high the pickup sits, and what kind of guitar it's bolted into.

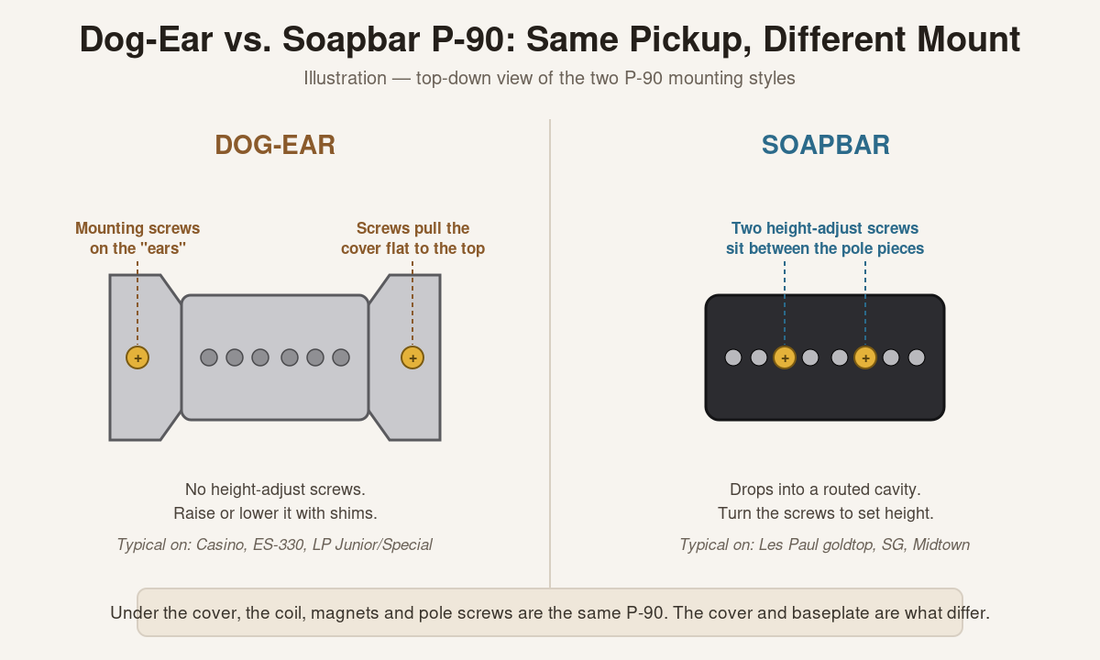

So if you're staring at two listings and one has dog-ears and one has soapbars, don't let the cover shape decide it for you. The illustration above shows the two mounts side by side; below, let me walk through what's actually different, because a few of those differences do matter when you're buying used.

Why there are two styles in the first place

This isn't a tone story — it's a fit story. The dog-ear came first, and it's the simpler design: a rectangular pickup with two pointed extensions ("ears") on each end, and a screw through each ear that pulls the whole thing flat against the top of the guitar. It works beautifully on hollow and thinline instruments where there's no room to route a deep cavity.

The soapbar showed up when Gibson put P-90s on the first solidbody Les Paul goldtops in the early '50s. At the neck position there wasn't enough clearance to mount a dog-ear the usual way, so they reworked the cover into a plain rectangle with two mounting screws passing down through the middle, between the pole pieces, into a routed cavity. The cream cover looked like a bar of soap, and the nickname stuck. Early on, Gibson literally snipped the ears off dog-ear baseplates to make them. Same guts, new jacket.

The real difference: how you set the height

This is the part that actually affects your tone, and it's mechanical, not magical.

A soapbar sits in a route with two height-adjustment screws between the poles. You grab a screwdriver, raise or lower it, and dial in the balance and output you want. That adjustability is a real tool — pickup height is one of the biggest free tone changes on any guitar, and a soapbar lets you use it in about thirty seconds.

A dog-ear pulls flat to the top and has no built-in height adjustment. Whatever height the ears land at is where it lives. If you want it higher or lower — say, on a Casino where the neck pickup can feel a touch quiet — you're shimming underneath it, not turning a screw. It's a five-minute job with the right material, but it's a job, and a lot of players never bother. That's why two dog-ear guitars can sound noticeably different from each other even with identical pickups: one's been set up and one hasn't.

So when someone tells me their soapbar "sounds hotter and clearer" than their buddy's dog-ear, my first question is always: what height is each one set to? Nine times out of ten that's the whole story.

What about that "the cover changes the tone" argument?

You'll read that dog-ears sound more "alive" because the cover couples tightly to the body, while soapbars are more isolated sitting in their route. There's a sliver of theory there, and I won't tell you it's impossible. But in real use, on real guitars, any difference from the mount is buried under things that matter far more: the pickup's own winding, the height you set it to, the position on the guitar, and — the big one — the body itself. A dog-ear in a fully hollow Casino sounds airy and woody because it's in a hollow guitar, not because of the ears. Put that same pickup in a solid slab and it'll sound tighter and punchier.

Which guitars use which

It breaks down pretty cleanly by body type and model tradition. Dog-ears live on hollow and thinline instruments and on the plainer solidbodies: Epiphone Casinos and Gibson ES-330s, and historically the Les Paul Junior and Special. Soapbars live on the Les Paul goldtop, the SG, and modern P-90 solidbodies like the Gibson Midtown. It's not a rule written in stone — plenty of exceptions exist — but if you know the model you can usually guess the cover.

The buying stuff that actually matters

A few things I'd keep in mind if you're shopping used, whichever cover you land on:

Don't pay a "tone premium" for one style

There isn't one. Price should track the guitar, its condition, and the quality of the pickups themselves — not whether the covers are pointy or plain.

You can't always just swap one for the other

Dog-ears and soapbars have different baseplates and footprints, and the mounting is completely different. Converting a dog-ear guitar to soapbars (or vice versa) usually means routing, drilling, or a custom cover — that's real work, and on a vintage or collectible instrument it torches value. If a listing shows a guitar that's been routed to change pickup style, treat that like any other modification and price accordingly.

Check the height and, on dog-ears, the shim

On the bench, the first thing I do with any P-90 guitar is set pickup height for balance between strings and between neck and bridge. On a dog-ear, I check whether it's been shimmed sensibly or just left wherever it fell. A well-set dog-ear will surprise people who think the design is "worse."

If you want to hear the family for yourself, we usually have a P-90 guitar or two — hollow and solid — in the guitars in stock at any given time. Play a dog-ear and a soapbar back to back with both set to a sane height and I think you'll come away agreeing: it's the guitar and the setup doing the talking, not the cover.

FAQ

Do dog-ear and soapbar P-90s sound different?

Not inherently. The pickup underneath is the same. Any difference you hear usually comes from pickup height (soapbars are easy to adjust, dog-ears need shims), the position, and the body the pickup is mounted in.

Can I put a soapbar P-90 in a guitar routed for a dog-ear?

Not as a drop-in. The baseplates, footprints, and mounting are different, so it typically requires routing or a custom cover. On a valuable guitar, that kind of conversion hurts resale — think hard before you do it.

Which is better for a Les Paul Junior tone?

The classic Junior/Special voice comes from a dog-ear in a simple mahogany body. If that raw, midrange bark is what you're after, look for the dog-ear models rather than trying to recreate it with a soapbar in a different guitar.

My dog-ear P-90 sounds weak. Is it a bad pickup?

Usually not. It's probably just sitting too low. Because a dog-ear has no height screws, it may need a shim underneath to bring it up closer to the strings. Raise it a bit and it often wakes right up.
