How Does a Humbucker Actually Work? Why Two Coils Kill the Hum

Here is the short version, because you probably came here for it: a humbucker uses two coils instead of one, and those two coils are deliberately built backwards from each other. That single design choice does two things at once. It cancels the electrical hum that plagues single-coil pickups, and, almost as a side effect, it gives the pickup that thicker, warmer voice everyone associates with a Les Paul. The hum-cancelling is the point. The tone is the consequence.

I have had hundreds of these out on the bench, covers off and wires traced. Once you see what is going on inside, it stops being magic and turns into some pretty clever engineering. Let me walk you through it the way I would at the counter.

First, why a single coil hums at all

A guitar pickup is not complicated in principle. It is a coil of very fine wire wound thousands of times around a magnet. The magnet gives the steel strings a magnetic field; when you pluck a string, the string vibrates in that field and induces a tiny alternating voltage in the coil. That voltage is your signal. Your amp makes it loud.

The problem is that a coil of wire does not only "hear" your strings. It is also an antenna, and it happily picks up the electromagnetic garbage in any room with power in the walls: light dimmers, LED ballasts, monitors, wall-wart power supplies, the transformer in your own amp. In North America that interference cycles 60 times a second (50 in much of the world), which is why players call it "60-cycle hum." A single coil can't tell the difference between the string signal it wants and the hum it doesn't, so it amplifies both. That steady mmmmm from a Strat bridge pickup under bad lighting is the coil doing its job a little too well.

The trick: two coils, backwards from each other

In the early 1950s, a Gibson engineer named Seth Lover was tasked with getting rid of that hum. He had already built hum-cancelling circuits for amplifier power supplies, and he brought the same idea to the pickup. Instead of one coil, he used two, sitting side by side. But he did two specific things to the second coil to make the trick work.

He wound the second coil in the opposite direction from the first, and he flipped its magnet so it sat with opposite polarity (north pole up on one, south pole up on the other). Then he wired the two coils together in series, so their outputs combine into one signal. Pickup people abbreviate this whole arrangement as RWRP: reverse-wound, reverse-polarity.

Why the hum cancels but your signal doesn't

This is the part that trips people up, so here is the plain-English version. The hum in the room is a single, uniform field washing over both coils at the same time. Because the coils are wound in opposite directions, that identical interference induces voltages that point in opposite directions in the two coils. Wired in series, those two hum voltages meet nose to nose and cancel each other out. The hum is, quite literally, bucked. That is where the name comes from.

So why doesn't your guitar signal cancel out too? Because the string is not a uniform field. Each string sits over a different magnet, and those two magnets have opposite polarity. That flips the string signal a second time. Two flips cancel out: reverse the winding (one flip) and reverse the magnet (a second flip), and the string signals from the two coils end up lined up in phase. They add together instead of cancelling. The result is a pickup where the hum subtracts and the music adds. That is the entire trick.

So why do humbuckers sound different from single coils?

Here is where I have to be honest with you, because there is a lot of confident nonsense online about this. A humbucker sounds warmer, thicker, and a bit louder than a single coil, and there are really two things going on. One is not in dispute; the other is argued about constantly.

The part nobody argues about: two coils wired in series is a lot more coil than one. That raises the pickup's inductance, which lowers its resonant peak. In plain terms, the frequency where the pickup naturally emphasizes treble slides down, so you hear less top-end sparkle and more midrange thickness. You also get more output, because you have two coils' worth of signal stacked up. That is the bulk of why a humbucker sounds fatter and hits your amp harder.

The part players love to fight about: the two coils sit a small distance apart, so they sense the string at two different points, and some of the very highest frequencies partially cancel between them. This is sometimes called the aperture effect. It is real, but in my experience its impact on what you actually hear is far smaller than the inductance story above. If someone tells you a humbucker's whole voice comes from coil spacing, take it with a grain of salt; the physics says inductance is doing most of the work.

A quick bit of history

Lover's design went into a joint Gibson patent application filed in 1955, but the patent (US 2,896,491) was not granted until July 28, 1959. In between, Gibson stuck a small decal reading "Patent Applied For" on the bottom of each pickup, which is why the most sought-after vintage humbuckers are called PAFs to this day. The ones in a real late-'50s Les Paul now change hands for absurd money, mostly because of manufacturing inconsistency back then, not a secret formula. The core idea in a PAF is exactly the idea in a $99 import humbucker: two coils, backwards from each other, cancelling the hum.

What this actually means when you're buying a used guitar

A few practical things fall out of all this that are worth knowing before you hand over your money.

You can't judge a humbucker by its cover. That metal cover on a Gibson-style pickup is nickel-silver, and it is there partly for looks and partly for shielding. It hides everything we just talked about. If you want to see whether a pickup is a genuine two-coil humbucker or a single coil in a humbucker-sized housing, you often have to look underneath or trace the wiring. On the bench that is routine; from a listing photo it is guesswork, which is one more reason to buy from someone who has actually had the guitar apart.

Coil-splitting brings the hum back. A lot of modern guitars let you "split" a humbucker down to a single coil for a brighter sound. The moment you do, you have shut off half of the hum-cancelling system, and the noise comes right back. That is not a defect; it is physics. If a split humbucker suddenly buzzes, nothing is wrong with your guitar.

Single coils aren't broken just because they hum. That Strat or Tele bridge pickup hums because it is a single coil doing exactly what it was designed to do, and a huge part of its bright, glassy sound comes from that same simple design. Plenty of great records were made with a bit of 60-cycle hum in the room. And there is a middle path: many Stratocasters use a reverse-wound, reverse-polarity middle pickup, so positions 2 and 4 are actually hum-cancelling pairs. That is the same RWRP trick, just spread across two separate pickups.

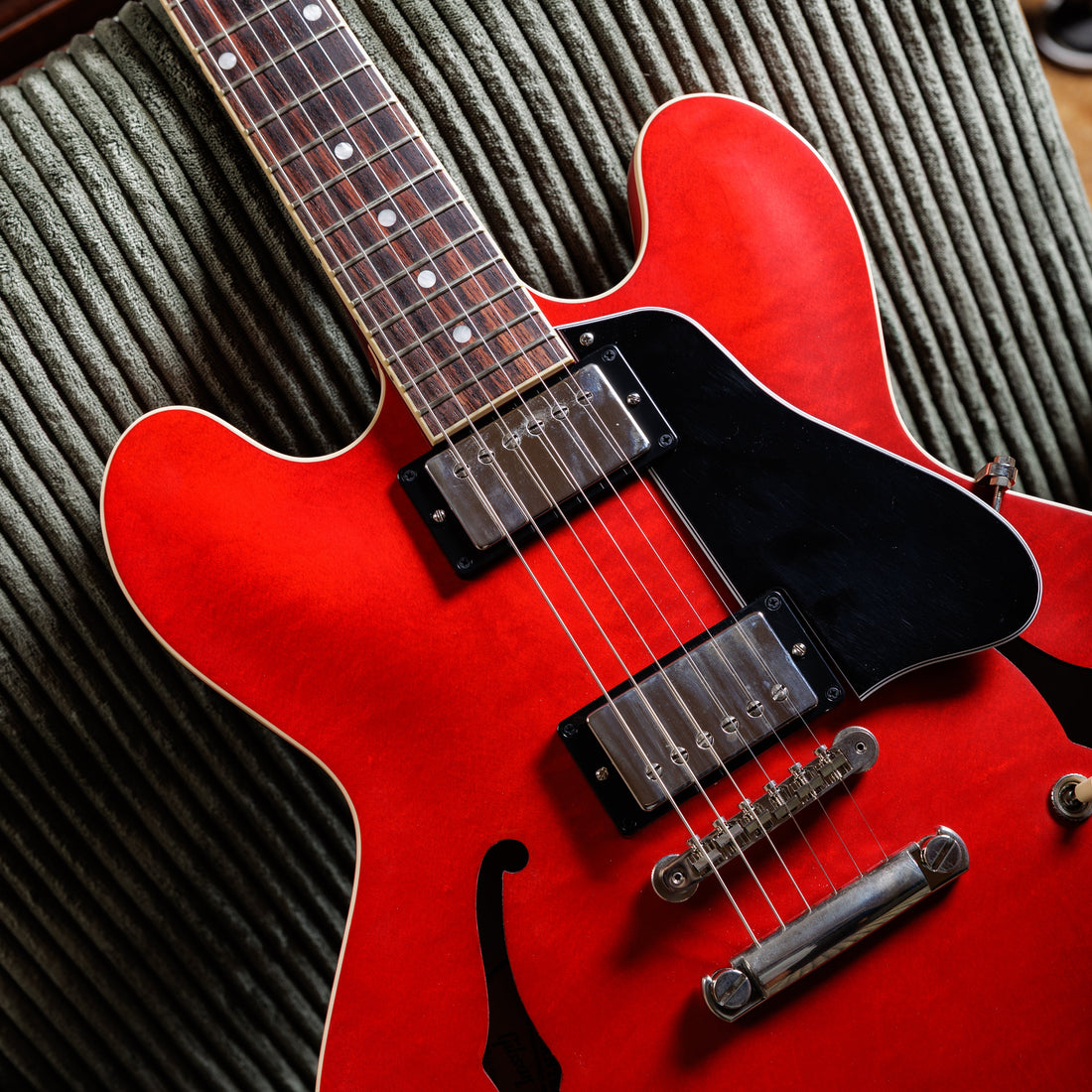

If you already know you want the quiet, thick voice, that is the whole Les Paul, SG, and 335 family: a Les Paul Standard or a semi-hollow ES-335 are built around humbuckers. If you want the bright, open single-coil sound and don't mind a little hum, a vintage-spec Stratocaster is the classic choice. You can see whatever is currently on the wall in our in-stock guitars, and every one of them has been through the bench.

FAQ

Why is it called a "humbucker"?

Because it "bucks," or cancels, the hum. The two coils are wired so that external electrical interference induces equal and opposite voltages that cancel each other out, while the string signal adds together.

Are humbuckers always quieter than single coils?

For the steady 60-cycle hum from lights and power supplies, yes, that is exactly what they cancel. They do not cancel every kind of noise, though. A bad ground, a noisy cable, or a dimmer switch right next to your amp can still cause trouble. And if you coil-split a humbucker, you lose the cancelling and the hum returns.

Do humbuckers sound worse than single coils?

Neither is better; they are different tools. Humbuckers are quieter, thicker, louder, and darker. Single coils are brighter, more open, and more dynamic, at the cost of some hum. Which one is "right" depends entirely on the music you play and the rooms you play it in.

Can any humbucker be split into a single coil?

Only if it has four conductor wires (plus a ground), which gives you access to each coil separately. Many vintage-style humbuckers are wired with a single braided lead and cannot be split without being rewired. That is worth checking if coil-splitting is on your wish list.
