F-Spaced vs Standard Humbuckers: Will the Pole Pieces Line Up With Your Strings?

Here is the short version, because I get this question at the bench almost every week: if you are dropping a humbucker into the bridge of a Fender-style guitar or anything with a Floyd Rose, buy the F-spaced (or "Trembucker") version. If it is going into a Gibson-style guitar with a stop tailpiece or into any neck position, buy the standard one. That covers about 95% of people who ask. The other 5% is where it gets interesting, and where a lot of internet advice overshoots the truth.

So let me walk you through what F-spacing actually is, when it genuinely matters, and when it is just people worrying about a couple of millimeters that they will never hear.

What "F-spacing" actually means

All a humbucker's pole spacing describes is how far apart the six adjustable pole screws sit, measured from the low E pole to the high E pole. That is it. Two humbuckers can be electrically identical — same magnet, same wind, same everything — and differ only in how wide that row of poles is spread.

The rough numbers, using DiMarzio's own figures: a standard humbucker measures about 1.90 inches (roughly 48 mm) across the outer poles, while an F-spaced humbucker measures about 2.01 inches (roughly 51 mm). Seymour Duncan uses different terminology — they call their wide version a "Trembucker," and it comes in a touch wider still, around 2.07 inches (about 53 mm). The exact figures vary a hair between brands, but the concept is the same: F-spaced and Trembucker mean "spread the poles out a little for wider string spacing." The "F," by the way, just stands for Fender.

Why Fender-style bridges started this whole thing

Your strings are not parallel. They start close together at the nut and fan outward toward the bridge, so they are always widest right where the bridge pickup sits. A traditional Gibson stop-tailpiece bridge spaces the strings fairly narrow — under two inches at the pickup. A Fender-style tremolo, and especially a Floyd Rose, spaces them noticeably wider, often 2.1 inches or more from E to E.

That is the entire reason F-spacing exists. Gibson-style humbuckers were designed around Gibson-style string spacing. When people started dropping them into Strat bridges and Floyd-equipped superstrats in the '80s, the outer strings no longer sat over the outer poles. DiMarzio's fix was simply to widen the poles to match.

Does it actually change your tone?

This is the part everyone argues about, so let me give you the honest answer instead of a marketing one: the tonal effect of mismatched spacing is small, and on most guitars you will not hear it. That is not me being dismissive — it is physics.

The magnetic field around each pole screw is not a laser beam. It is a fuzzy bubble that extends well past the pole itself, and neighboring poles' fields overlap. So a string that sits a millimeter or two off-center from its pole is still very much inside the sensing field. It still gets picked up, and the pickup still works. Anyone who tells you a slightly mismatched humbucker "kills your tone" is overstating it.

The one place it genuinely matters

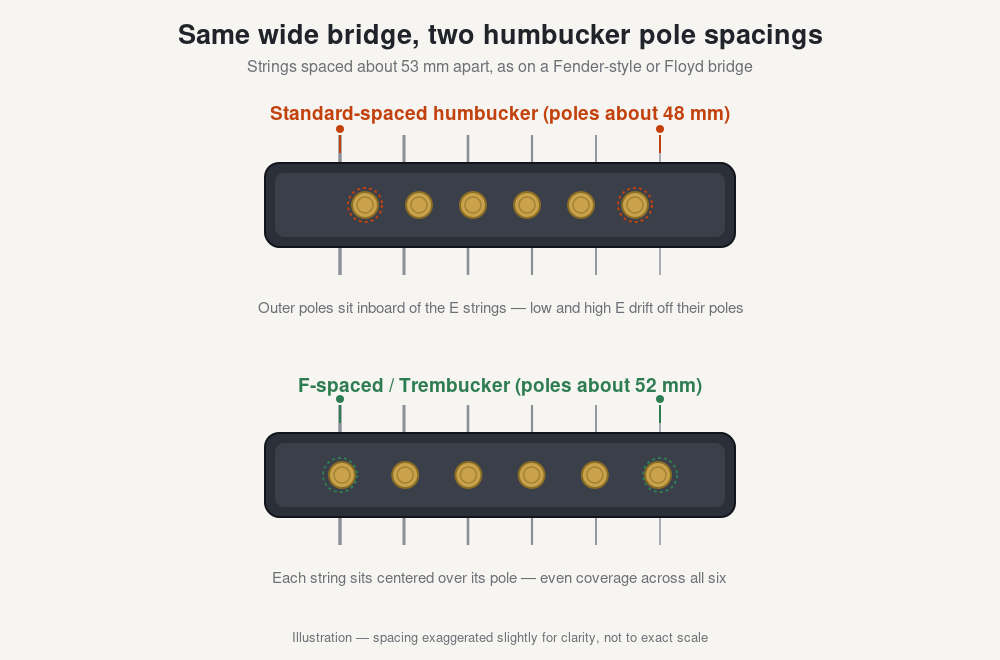

Where I do see a real, measurable issue is string-to-string balance on a wide bridge. Look at the top diagram again. When you put a narrow standard humbucker under wide Fender spacing, the low E and high E end up sitting toward the outside edge of their poles, or even slightly outboard of them. Those two strings can come out a touch quieter than the middle four.

Here is the frustrating part: because pole screws are height-adjustable but not sideways-adjustable, you cannot fully dial that imbalance out. You can raise the outer poles to chase a little more level, but you are compensating for a geometry problem, not fixing it. On a bright single-cut with a stop bar you would never notice. On a Floyd-loaded superstrat with a hot bridge pickup, a picky player will hear those E strings sitting back. That is the case where F-spacing earns its keep.

The neck pickup almost never cares

Notice in the neck diagram how much closer together the strings already are by the time they reach the neck pickup. The fan has barely opened up there. That is why neck humbuckers are almost always standard-spaced, even on Fender-scale guitars, and why nobody sells a meaningful number of F-spaced neck pickups. If you are buying a set for a Strat-style guitar, the normal move is F-spaced (or Trembucker) in the bridge and standard in the neck. Most pickup makers sell them exactly that way for a reason.

How to check your own guitar in 30 seconds

Do not guess — measure. Grab a ruler and measure the distance from the center of your low E string to the center of your high E string, right where the pickup will sit. If that measurement is under about 2 inches (50 mm), a standard humbucker lines up fine. If it is 2 inches or wider, go F-spaced or Trembucker for the bridge. That single measurement answers the question more reliably than knowing your guitar's brand, because plenty of modern bridges blur the old Gibson-versus-Fender line.

A couple of shortcuts from the bench: most Gibson and Epiphone Les Pauls, SGs, and 335s are standard spacing. Most Fender and Fender-style tremolo guitars, and virtually anything with a Floyd Rose or a wide flat bridge, want F-spacing at the bridge. When in doubt, the ruler wins.

A note on rails and blades

If your "humbucker" has solid blade or rail pole pieces instead of six individual screws, this entire discussion is moot. A continuous blade senses the string wherever it happens to cross, so spacing mismatch simply is not a thing. That is one quiet advantage of rail-style pickups in oddball bridge situations.

My honest take

Buy the spacing that matches your bridge — it costs nothing extra and it is the correct thing to do. But do not lie awake over a used pickup that turns out to be the "wrong" spacing by a couple of millimeters. If the strings still track over the poles and the volume feels even across the strings, it is fine. Play it. The only time I actively swap a pickup purely for spacing is when a player brings me a wide bridge, a standard humbucker, and a genuine complaint that the outer strings sound weak. That complaint is real. Everything past it is usually spec-sheet anxiety.

If you are shopping for a used guitar and wondering what is already in it — or whether a previous owner dropped in the wrong-spaced pickup — that is exactly the kind of thing we check before anything goes up for sale. You can browse what is currently on the bench and in stock in our guitars in stock collection.

FAQ

Will a standard humbucker physically fit a guitar routed for an F-spaced one?
Yes. Mounting dimensions, ring screws, and cavity size are the same. Only the pole spread differs, so any humbucker bolts into any standard humbucker route regardless of spacing.

Is F-spaced the same as a Trembucker?
Close, not identical. "F-spaced" is DiMarzio's term and "Trembucker" is Seymour Duncan's; the Trembucker is usually a hair wider. In practice either one works in a wide Fender or Floyd bridge — the small difference between the two brands is not something you will hear.

Can I just adjust the pole screws to fix a spacing mismatch?
Only up and down, not side to side. Raising the outer poles can nudge the balance a little, but it cannot move a pole under a string that is sitting off to the side. For a real fix you change the pickup spacing.

Does spacing matter for the neck pickup?
Almost never. The strings are already close together back there, so standard spacing lines up fine even on Fender-scale guitars. F-spacing is a bridge-position concern.
