Do Boutique Tone Capacitors Actually Change Your Tone?

Short version, because I know that's what you came for: swapping the value of your tone capacitor changes what you hear. Swapping the brand or material of the cap at the same value almost never does — and when it seems to, it's usually tolerance playing tricks on you. I've had hundreds of guitars on the bench with every flavor of cap you can name soldered into them, from fifty-cent ceramics to reissue "bumblebees" that cost more than a set of strings, and that's the pattern every single time.

So before you spend $30 on a boutique paper-in-oil cap because a forum thread promised you "vintage mojo," let's walk through what that little component is actually doing in your guitar. Once you see it, you'll know exactly where your money is well spent and where it isn't.

What a tone capacitor actually does

A passive guitar tone control is a treble bleed to ground. Your pickup's signal runs down the main path to the output jack. Off to the side sits the tone pot with a capacitor wired between it and ground. When you roll the tone knob down, you open a path that lets the highest frequencies drain away to ground before they ever reach your amp. That's it. That's the entire circuit. There's no active filtering, no EQ chip, nothing clever — just a resistor (the pot) and a cap deciding how much treble gets thrown away.

Here's the part people forget: with your tone knob on 10, that capacitor is barely in the circuit at all. A tiny bit of high end leaks through, but the cap is doing almost nothing. This is why, when a buddy swears his new orange drop "opened up the top end," I get suspicious — if he's playing on 10 like most of us do, the cap he's raving about is sitting on the sideline. The cap only earns its keep when you actually turn the knob down.

The capacitor's value is what you actually hear

The number printed on the cap — measured in microfarads (uF, sometimes written mfd) — sets how low the roll-off reaches when you turn the tone down. A bigger value grabs a wider band of frequencies and gives you a darker, more "woman tone" sound at the bottom of the dial. A smaller value only nibbles the very top, so even fully rolled off it stays comparatively bright and keeps some midrange.

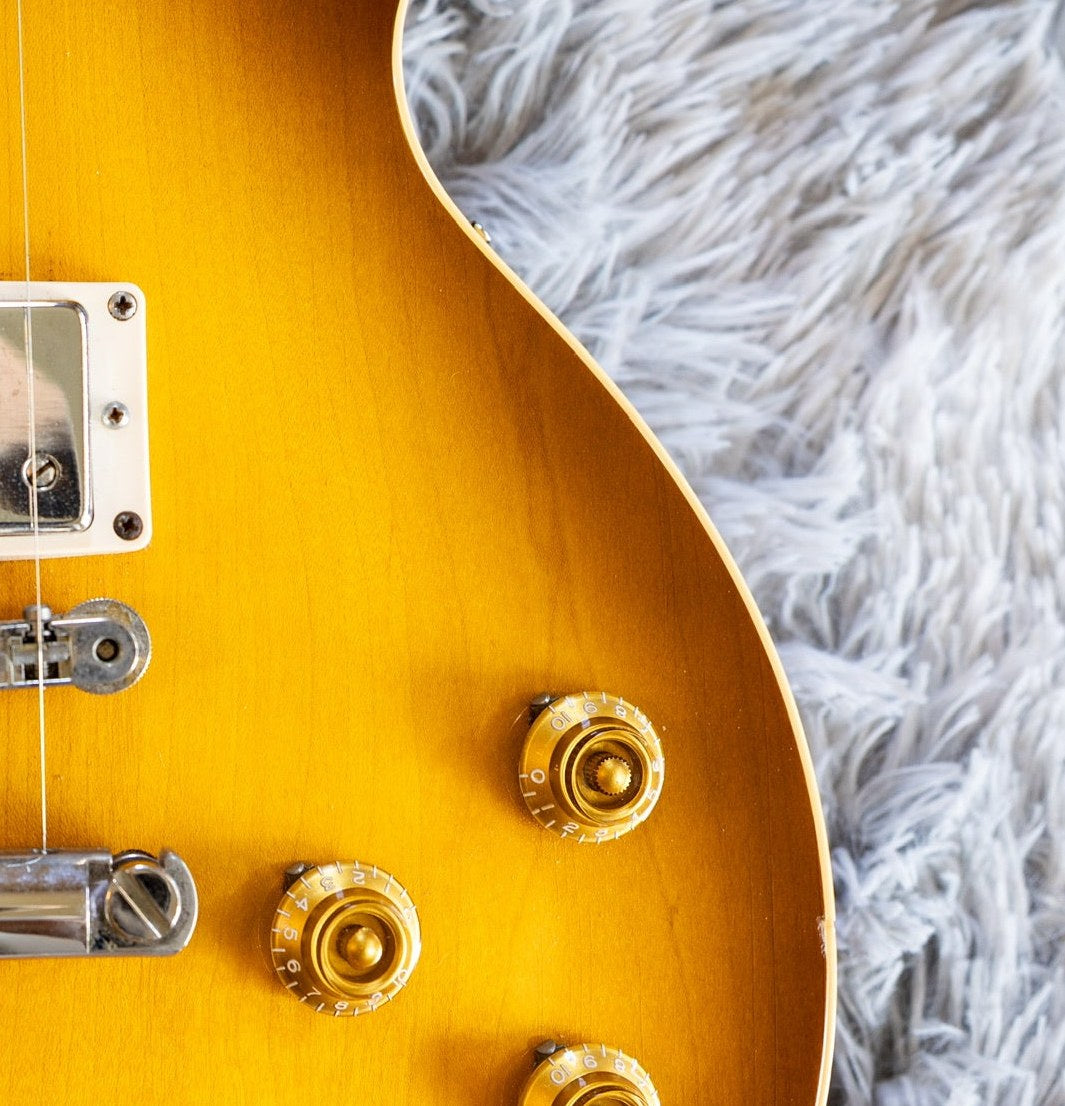

This maps neatly onto the two big camps. Gibson-style humbucker guitars have historically used around 0.022uF (you'll also see 0.02uF on older harnesses), which keeps the rolled-back tone usable and vocal rather than pure mud. Fender single-coil guitars traditionally ran a fatter 0.047uF (older specs list 0.05uF), because single coils are brighter and glassier, so a heavier treble cut tames them nicely. Roughly speaking the 0.047uF starts rolling treble noticeably lower than the 0.022uF, though the exact frequency shifts with the pot and pickup in your particular guitar.

If you want to actually change how your guitar sounds for a few dollars, this is the lever: change the value, not the brand. Put a 0.015uF or 0.01uF in a dark humbucker guitar and the tone knob becomes a genuinely useful "roll off a little harshness" control instead of a mud switch. That single part swap does more than any boutique cap ever will.

So where does all the "mojo" talk come from?

Two honest places, and neither of them is magic.

1. Tolerance — the real culprit

A capacitor's printed value is a target, not a promise. Cheap ceramic disc caps are often rated at plus-or-minus 20% or worse. That means a cap stamped "0.022uF" might actually measure anywhere from around 0.017 to 0.026uF. Quality film caps — orange drops, decent polyester and polypropylene types — are usually 5 to 10% tolerance, so what you get is close to what's on the label.

Now picture the classic upgrade story. Someone yanks a no-name ceramic that happened to measure 0.03uF and drops in a tightly-spec'd 0.022uF orange drop. They hear a real difference — and they credit the fancy new cap. But the change they heard was the value moving from an actual 0.03 to an actual 0.022. A cheap 0.022 ceramic that happened to measure accurately would have sounded the same. That's not mojo; that's arithmetic, and it's the single most common way people fool themselves in this hobby.

2. The material debate — genuinely argued, rarely proven

This is where it gets honest. Some very experienced players and techs insist paper-in-oil caps (the "bumblebee" style found in vintage Les Pauls, and modern reissues of them) sound smoother and "lossier" at the bottom of the sweep than a polypropylene orange drop — a softer transition as you roll down rather than an abrupt darkening. The proposed mechanism is that the dielectric material absorbs and releases energy a little differently. Others — and plenty of blind listening tests — find that once you match the value and the tolerance, nobody can reliably pick the "premium" cap out of a lineup.

My take from the bench: I'm firmly on the skeptical side, but I won't tell you the difference is flatly impossible, because at the very bottom of the dial the effect people describe isn't crazy on paper. What I will tell you is that it's small, it only lives in the last stretch of a rolled-off tone knob, and it is dwarfed by your pickups, your amp, your fingers, and yes, the cap's value. If you can hear it and it makes you play more, wonderful. Just don't expect a paper-in-oil cap to transform a guitar you play on 10.

What I'd actually do

If your tone knob does something you like, leave the cap alone and go play. If rolled-off tone sounds like a wet blanket, try a smaller value before anything else — a 0.015uF in a humbucker guitar is a favorite of mine. If you're chasing a specific vintage darkness, go up in value. Buy a decent film cap with a real 5% tolerance rating so you actually get the value you paid for, spend a couple of dollars, and pocket the other $28. And if you simply enjoy the ritual of a fancy paper-in-oil cap and the story that comes with it — no judgment, that's part of the fun of this hobby too. Just buy it with clear eyes.

Most of the guitars that come across our bench already have perfectly good harnesses; a cap is one of the last things worth worrying about on a used instrument. If you're shopping, you can see everything currently set up and ready to play in our guitars in stock.

FAQ

Will a more expensive tone capacitor improve my tone?

Not on its own. At the same value and tolerance, an expensive cap and a cheap-but-accurate one measure the same and sound the same in blind tests. Spend on the value that suits your guitar, not the brand name.

What tone cap value should I use?

Humbucker guitars usually like about 0.022uF; single-coil guitars traditionally use 0.047uF. Want a brighter, more usable rolled-off tone in a dark guitar? Try 0.015uF or 0.01uF. It's the cheapest meaningful tone change you can make.

Do bumblebee or paper-in-oil caps really sound "vintage"?

It's debated. Some players hear a slightly smoother roll-off at the bottom of the dial; blind tests usually can't confirm it once value and tolerance are matched. Any difference is subtle and only appears with the tone knob rolled well down.

Does the tone cap matter if I leave my tone on 10?

Barely. On 10 the tone circuit is almost entirely out of the signal path, so the cap — whatever it is — is doing next to nothing. The cap only shapes your sound as you turn the knob down.
