Why Does My Guitar's Volume Knob Have a Dead Zone? Audio vs. Linear Taper Pots, Explained From the Bench

Here's the short version, because it's the question I get most: if your volume knob does almost nothing from 10 down to about 3, and then drops off a cliff in the last little bit before it hits zero, you almost certainly have a linear taper pot on your volume control. Swap it for an audio (logarithmic) taper and the sweep will feel usable across the whole dial. That's it. That's the fix for the "dead zone."

But there's a second complaint that gets tangled up with the first one all the time — "it goes muddy and dark when I roll it back" — and that one has nothing to do with taper. It's a different problem with a different fix. I'll separate the two clearly, because once you understand which is which, you stop throwing parts at the wrong thing.

What "taper" actually means

A potentiometer — a pot, the thing under your volume or tone knob — is just a variable resistor with a wiper that slides along a resistive track as you turn it. "Taper" describes how the resistance changes as you rotate the knob. It is a completely separate spec from the pot's value (250k, 500k, and so on). Value sets the overall load on your pickups; taper sets how the control feels as you sweep it. Two 500k pots can behave nothing alike if one is linear and one is audio.

There are two you'll actually run into. A linear taper (marked with a B, e.g. B500K) changes resistance evenly with rotation — at the halfway point of the sweep, you're at roughly 50% of the track. An audio or logarithmic taper (marked A) piles most of its resistance change into the top of the rotation — a common modern audio pot is only around 10% at the halfway point. Same knob travel, very different curve.

Why audio taper exists: your ears aren't linear

The reason we bother with a curved taper at all is that human hearing is logarithmic. We don't perceive loudness in a straight line with power — roughly speaking, it takes about ten times the power to sound twice as loud. So if you use a linear pot on a volume control, the electrical output falls in a straight line but your ears hear the loudness change bunched up at the very bottom of the dial.

The audio taper was invented specifically to cancel that out. By keeping the signal low for most of the sweep and only ramping up near the top, an audio pot makes the perceived loudness change feel even from 1 to 10. That's why it became the standard choice for volume: it matches the curve of the pot to the curve of your hearing.

So why does a linear volume pot feel "dead" up top?

Run the numbers and it's obvious. On a linear volume pot, every time you halve the knob position you drop about 6 decibels. Going from 10 to 5 is only about −6 dB — barely a change to your ears. From 5 to 2.5 is another −6 dB. The audible action keeps compressing into the last stretch before zero. The result is exactly the complaint: the top two-thirds of the dial seem to do nothing, and then the volume falls away suddenly right before it shuts off.

I've pulled linear volume pots out of plenty of import guitars and budget builds where somebody grabbed whatever was in the bin. Drop in an audio pot and people swear I "fixed the volume." I didn't fix anything broken — I matched the taper to the job.

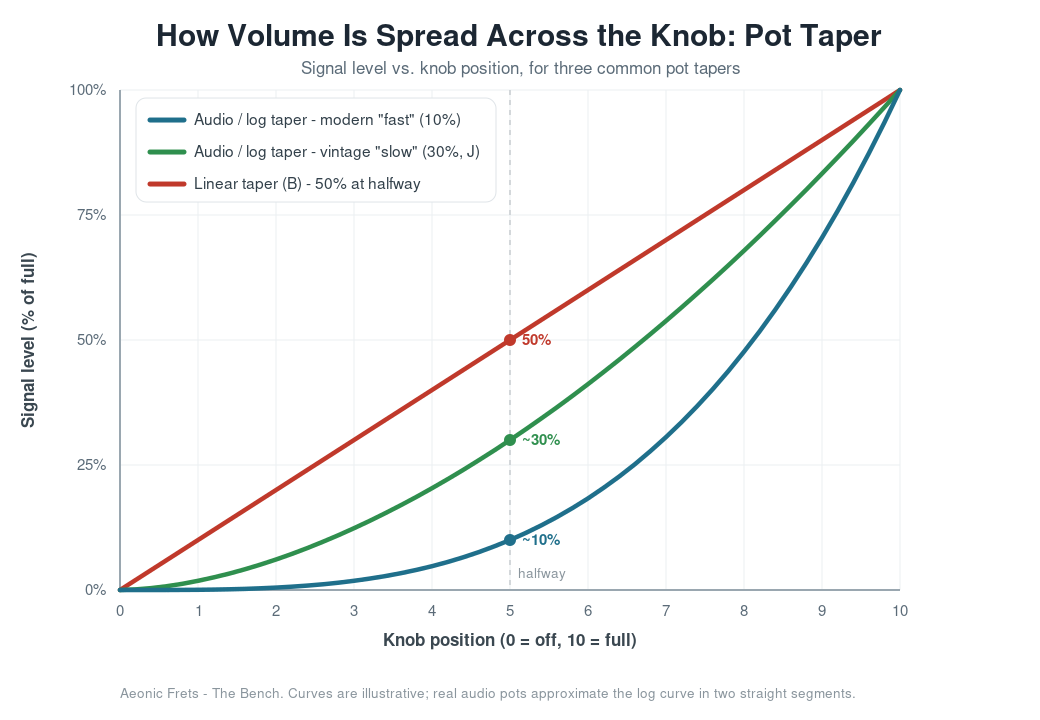

Fast vs. slow audio tapers: the 10% and the 30%

Here's where it gets nuanced, and where a lot of players who already know about audio taper still end up unhappy. Not all audio pots use the same curve. The common modern spec is about 10% at halfway — sometimes called a "fast" taper. There's also a vintage-style curve that sits around 30% at halfway, often stamped with a J (you'll see 250KJ or 500KJ). On a 250k pot that's roughly 75k left at the halfway point versus about 25k on the modern 10% curve.

The practical difference: a fast 10% taper does most of its useful cleanup right up near 10, so if you like to shave a hair of gain by backing off to 8 or 9, a fast taper gives you fine control right where you live. A slower 30% taper spreads the change more evenly down the dial, which a lot of vintage-minded players prefer because 7 and 6 still feel meaningful. Some boutique makers even sell the choice — I've seen 10%, 20%, and 30% offered as fast, medium, and slow. Neither is "correct." It's a feel preference, and it's worth knowing it exists before you assume every audio pot is the same.

The other complaint: losing treble when you roll back — and why it isn't taper

Now the one people constantly blame on the wrong part. "When I turn my volume down it gets dark and muddy." That is not a taper problem. You could have the perfect audio taper and still get it.

What's happening is an RC low-pass filter. Your guitar cable has capacitance (roughly 20–30 picofarads per foot), and as you roll the volume pot back you're effectively raising the resistance in the circuit. More resistance plus that cable capacitance equals a more aggressive treble roll-off. So the highs bleed away faster than the volume does, and the guitar sounds like a blanket got thrown over it.

The usual fix is a treble bleed — a small capacitor (often with a resistor) wired across the volume pot's input and output lugs that lets the highs bypass the pot so your tone stays consistent as you turn down. The other honest option, common on Les Pauls, is "'50s wiring," which reroutes the tone cap to the volume pot's output; many players find it retains more clarity and cleans up nicely as you back off. I'll say plainly: taper vs. treble loss are two different circuits solving two different problems. Fixing one does nothing for the other.

What I actually recommend

Diagnose before you buy parts. Turn the guitar up and roll the volume down slowly. If the loudness barely moves and then jumps off near the bottom, that's a linear-taper feel — go audio. If the volume comes down smoothly but the tone goes dark and dull, that's the RC roll-off — add a treble bleed (or try '50s wiring on a Les Paul-style circuit). If both are happening, do both; they don't fight each other.

For most players I'd fit an audio taper volume pot and, if you ride your volume knob for cleanup, a modest treble bleed. If you're chasing a vintage feel where the middle of the dial still counts, ask for a slower 30% (J) audio taper instead of the default fast one. None of this is expensive, and it's the difference between a control you fight and one you actually use as an instrument.

Every used guitar we sell gets its electronics gone through and set up before it ships, so the controls do what the numbers on the knob say. If you want to feel the difference between a well-sorted control layout and a parts-bin one, have a look at what's in stock.

FAQ

How do I tell if my pots are audio or linear taper?

Check the marking on the pot body if you can get the cover off: an A prefix (A500K) means audio/log, a B prefix (B500K) means linear. No markings? Go by feel — if the volume change is smooth across the whole dial it's audio; if it's dead up top and abrupt near zero, it's linear.

Will changing taper fix my guitar going muddy when I turn down?

No. That darkening is the cable-capacitance roll-off, not the taper. You want a treble bleed circuit (or '50s wiring on a Les Paul-style guitar), not a different pot curve.

Is taper the same as 250k vs. 500k?

No — those are two separate specs. Value (250k/500k) sets how much the pot loads your pickups and affects overall brightness. Taper sets how the control sweeps. You choose them independently.

What taper do the big brands use?

Generally speaking, Fender has used audio taper for both volume and tone, while a lot of imports pair an audio-taper volume with a linear-taper tone. It varies by model and year, so if it matters to you, confirm on the actual guitar rather than assuming.
