ABR-1 vs. Nashville Tune-o-matic: Does the Bridge Actually Change Your Tone?

Here's the short answer, because I know that's what you came for: swapping between an ABR-1 and a Nashville Tune-o-matic will not transform your guitar. If someone tells you they can hear the difference blindfolded in a band mix, be a little skeptical. What these two bridges really change is how easy the guitar is to set up, how the saddles behave over the years, and whether that vintage Les Paul you're eyeing is going to give you grief at string-change time. That's the stuff worth knowing, and it's the stuff nobody explains when they're busy arguing about tone.

I've had hundreds of Gibsons and Gibson-style guitars on the bench with both types of bridge. So let me walk you through what actually separates them, what the tone debate gets right and wrong, and which one you should hope to find when you're shopping used.

Same idea, two generations of hardware

Both bridges are Tune-o-matics, and they solve the same problem: six individually intonatable saddles on an adjustable bar that sits in front of a stopbar tailpiece. Gibson's Ted McCarty introduced the original ABR-1 back in 1954, and it defined the look and feel of the Les Paul, SG, and ES-335 for the next two decades. The Nashville bridge showed up in 1975, when Gibson opened its Nashville plant, as a beefier, more adjustable evolution of the same design.

That twenty-one-year gap matters, because it tells you which guitars tend to wear which bridge. A reissue, a Custom Shop historic, or a modern guitar built to a vintage spec will usually wear an ABR-1. A large chunk of Gibson's standard production line, from the mid-70s onward, wears a Nashville. Plenty of modern instruments go either way depending on the model and year, so don't treat this as a hard rule.

The differences that actually exist

Strip away the folklore and there are really four honest differences:

Width and mounting. The Nashville body is noticeably wider, and its two posts seat into large press-in bushings sunk into the top. The ABR-1 is narrower and its thin posts thread into much smaller bushings. That's the single most useful thing to know, because it's why you can't just drop one bridge onto the other guitar's posts without conversion parts.

Saddle travel. Because the Nashville is wider, its saddles have more room to move front-to-back. That gives you more intonation range, which is genuinely handy on guitars with heavier strings, a wound G, or a slightly wandering scale length. On an ABR-1, a well-worn setup can occasionally run a saddle right up against the edge of its travel.

The retainer wire. Early ABR-1 bridges from 1954 to about 1962 had no wire holding the saddles in place, so if you fully slacken the strings, the little saddles can and will fall out and roll under your workbench. Gibson added a retainer wire around 1962 to fix exactly that. The Nashville captures its saddles differently and doesn't need one. Small detail, big difference in blood pressure during a restring.

Mass. The Nashville is a bit heavier. This is the hook the tone debate hangs on, so let's deal with it head-on.

Does the bridge change your tone?

This is where the forums catch fire, so here's the real disagreement laid out fairly. The people who hear a difference say the Nashville, with its extra mass, tightens and slightly darkens the sound, shaving off a little top-end air, while the lighter ABR-1 rings a touch more openly with more overtone bloom. They're not making it up — bridge mass and how tightly the whole assembly couples to the body genuinely do affect how a solidbody vibrates, and swap-and-listen comparisons on the same guitar have convinced a lot of experienced players.

The people on the other side point out that the effect is tiny, that it disappears the moment you're in a mix or playing with any gain, and that most "I swapped and it sounded better" stories also involved a fresh setup, new strings, and a different bridge height — any of which changes the sound more than the bridge casting itself.

My honest take from the bench: both camps are partly right, and the second one is more right. Is there a measurable difference? Probably. Is it audible on its own in a quiet room to a careful listener? Sometimes, in the way that a capacitor swap is sometimes audible. Is it something you should choose a used guitar over, or spend money chasing? No. I have never once had a player fail to bond with a great-playing Les Paul because it had the "wrong" bridge, and I've never had one fall in love because of the right one. String choice, pickup height, and how the stopbar is set will all move your tone more than ABR-1 versus Nashville ever will.

Which one should you want on a used guitar?

Forget tone for a second and think like a player who has to live with the thing. Here's how I'd weigh it.

If you're buying a modern player-grade Les Paul or SG and you just want it to work, the Nashville is the low-drama choice. More intonation range, captured saddles, sturdy bushings. It sets up easily and stays put.

If you're chasing that vintage vibe, a reissue, or a guitar that wears an ABR-1, that's a perfectly good bridge too — just know its quirks. Watch for two things on an older one. First, on a decades-old ABR-1, the thin posts can slowly lean forward under string tension, and the bar itself can bow in the middle from years of pull. Neither is a dealbreaker, but both are worth checking and both are why aftermarket makers like Faber sell locking bushing and post kits. Second, if it's a pre-1962 style with no retainer wire, be gentle at restring time.

The good news is that on almost any guitar, this is a fixable, swappable part. You are not stuck with what it left the factory wearing. So if you find a used guitar you love that happens to have the bridge you'd rather not have, that's a $30 to $150 conversation with a tech, not a reason to walk away. If anything on the bridge or posts looks tired, factor a bridge service into your offer — that's exactly the kind of thing we sort out before a guitar goes up on the wall. You can see what's currently on our wall of guitars in stock if you want to compare a few in person.

How to tell which one you've got

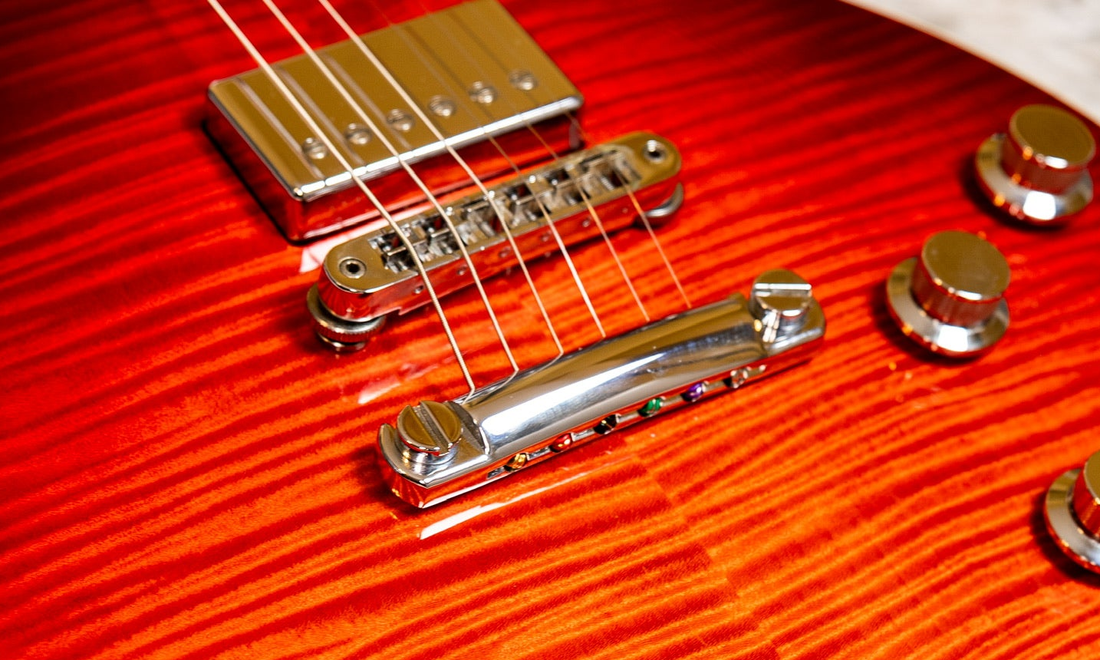

Quickest tell: look at the width and the posts. A Nashville bridge is chunkier and sits on two fat posts in obvious bushings. An ABR-1 is slimmer and rides on thinner posts. If you flip the bridge off (strings slack), a Nashville's saddles are retained in the casting; an early ABR-1's may drop right out. And if you can see a thin wire running along the front edge of the saddles, that's the ABR-1 retainer wire — you're looking at a 1962-or-later-style ABR-1, not a Nashville.

FAQ

Can I put an ABR-1 on a guitar that came with a Nashville?

Yes, but not by just dropping it on. The post spacing and bushing size are different, so you'll need conversion bushings (or a conversion bridge built for Nashville post spacing). It's a common, well-supported swap — any competent tech can do it.

Is one of them better for tuning stability?

Neither bridge is really your tuning-stability problem — that's almost always the nut, the string windings at the tuners, or an old set of strings. A worn, leaning ABR-1 post can add a little instability, but a healthy bridge of either type holds tune fine.

Does the ABR-1 really sound more "vintage"?

It's associated with vintage guitars, so it carries that reputation. Any tonal contribution is subtle at most, and heavily outweighed by the pickups, wood, strings, and setup. Buy the guitar that plays and sounds right to your ears; don't buy a bridge name.

Should I upgrade my stock bridge to a boutique one?

If your current bridge is bowing, leaning, or buzzing, a quality replacement (locking or titanium) is a worthwhile, real fix. If it's healthy and holding intonation, a boutique bridge is a want, not a need — spend the money on a proper setup first and you'll feel a bigger improvement.
